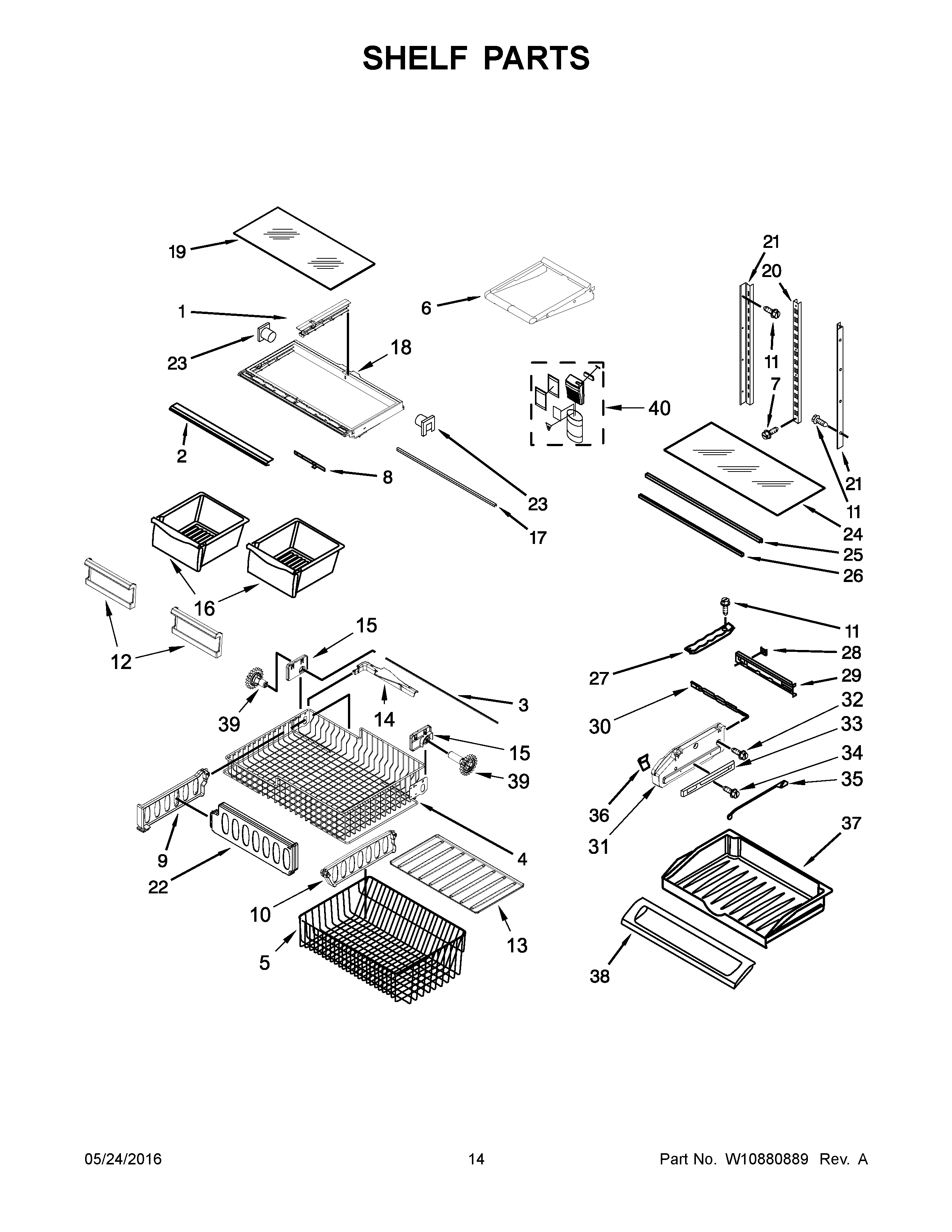

MFF2558FEZ00 08 – SHELF PARTS

Products

Position	Product
1	RAIL, CENTER CRISPER FRAME
2	MAY W10231345N
3	MAY W10802333
4	MAY W10348246
5	MAY W10503184N
6	ASSEMBLY, SHELF
7	MAY W10215666
8	MAY 12530805SP
9	Divider, Upper Basket
10	Divider, Lower Basket
11	MAY 12990513
12	HANDLE, CRISPER PAN (2)
13	TRAY, LOWER BASKET
14	MAY W10149389N
15A	MOUNT-GEAR (RIGHT HAND)
15	MOUNT-GEAR (LEFT HAND)
16	MAY 12804601SP
17	Brace, Crisper (2)
18	MAY W10329866
19	GLASS, CRISPER COVER
20	MAY W10273463
21	MAY W10569182
22	MAY W10171558
23	MAY 13062602
24	GLASS, PANTRY
25	SUPPORT, GLASS
26	MAY 12227305WH
27	TRACK, PANTRY
28	MAY 12656901
29	MAY 12656202
30	SLIDE, TEMPERATURE
31A	ENDCAP, PANTRY (RIGHT HAND)
31	ENDCAP, PANTRY (LEFT HAND)
32	MAY 12990504
33	MAY W10235370
34	SCREW (2)
35	ROD, TEMPERATURE CONTROL
36	KNOB, TEMP CONTROL
37	MAY 12731302
38	DOOR, PANTRY DRAWER
39	MAY W10474716
39A	MAY W10474715
40	MAY W10596756
