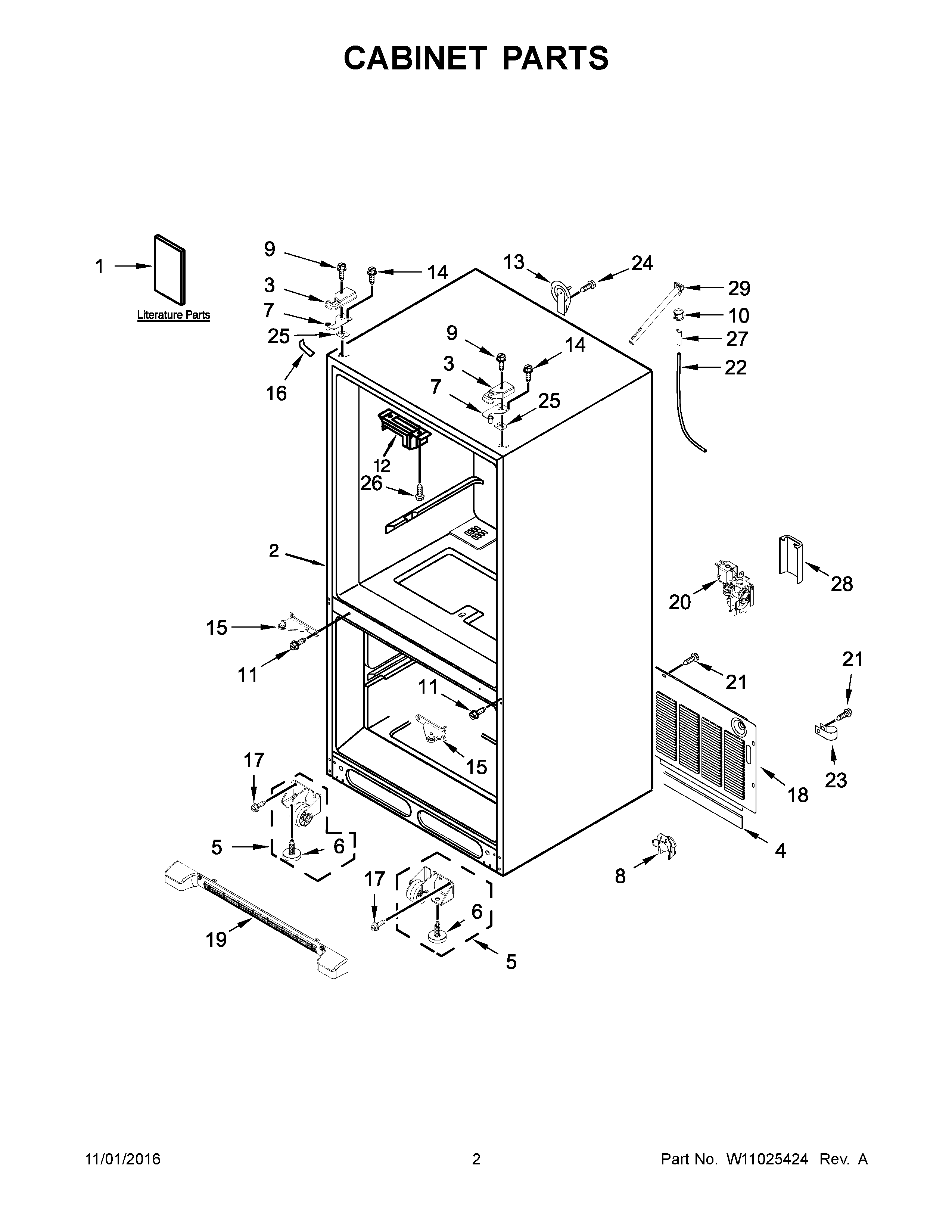

MFF2558FEZ01 02 – CABINET PARTS

Products

PositionProduct
1AMAY W10847568
1BMAY W10517966N
1MAY W10621529
2LINER (NOT A SERVICEABLE PART)
3COVER, TOP HINGE (LEFT) (GREY)
3AMAY 12962302AP
4MAY B5759655
5AROLLER ASSEMBLY (RIGHT HAND)
5ROLLER ASSEMBLY (LEFT HAND)
6Brake, Foot
7AMAY 12963205ED
7MAY 12963204ED
8MAY W10485986
9MAY 12992602
10Clip
11MAY 12990101
12Block, Pivot
13MAY 12726003
14SCREW (6)
15HINGE, CENTER LEFT HAND (GREY)
15AHINGE, CENTER RIGHT HAND (GREY)
16COVER, CORNER (GREY)
17MAY W10709365
18MAY W10211854
19MAY W10534155
20MAY W10498976
21SCREW (10)
22MAY B5705333
23CLAMP, TUBE
24MAY 12990504
25MAY 12999501
25AMAY 12999502
26Screw (8)
27MAY A3223101
28GUARD-WATER VALVE
29MAY 10463203
