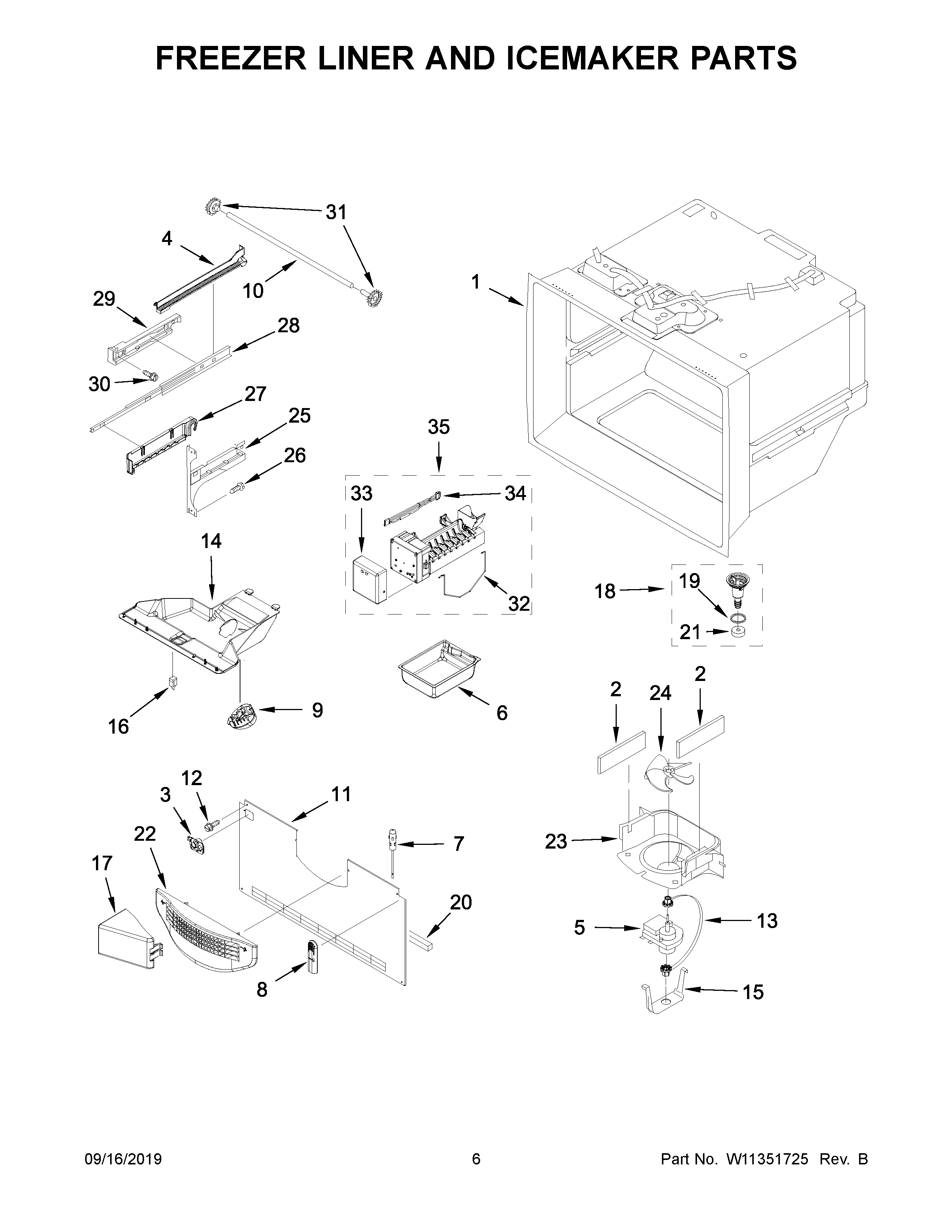

MFF2558FEZ03 04 – FREEZER LINER AND ICEMAKER PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2Gasket, Bottom
3MAY W11261524
4AMAY W10516602
4MAY W10516603
5MAY W10128551
6MAY W10171529N
7MAY 12791409SP
8MAY 12815301
9MAY W11251749
10MAY W10802332
11MAY W10308416
12SCREW (10)
13MAY W10121318
14MODULE-FZ LIGHT
15CLIP, EVAP. MOTOR
16SWITCH, LIGHT
17MAY W10157765
18MAY W10662407
19MAY M0500703
20GASKET, BOTTOM
21Gasket
22Grille, Fz Air
23SHROUD, EVAP.FAN
24Blade, Fan (Evaporator)
25AMAY W10330993
25MAY W10330991
26Screw (8)
27ACRADLE-BASKET (RIGHT HAND)
27CRADLE-BASKET (LEFT HAND)
28SLIDE, DOOR
29AADAPTER, SLIDE (RIGHT HAND)
29ADAPTER, SLIDE (LEFT HAND)
30Screw (6)
3112002497 Whirlpool Refrigerator Drawer Gear Kit
32ARM, SHUT OFF
33COVER
34MAY W10793621
35ASSEMBLY, ICEMAKER (COMPLETE)
