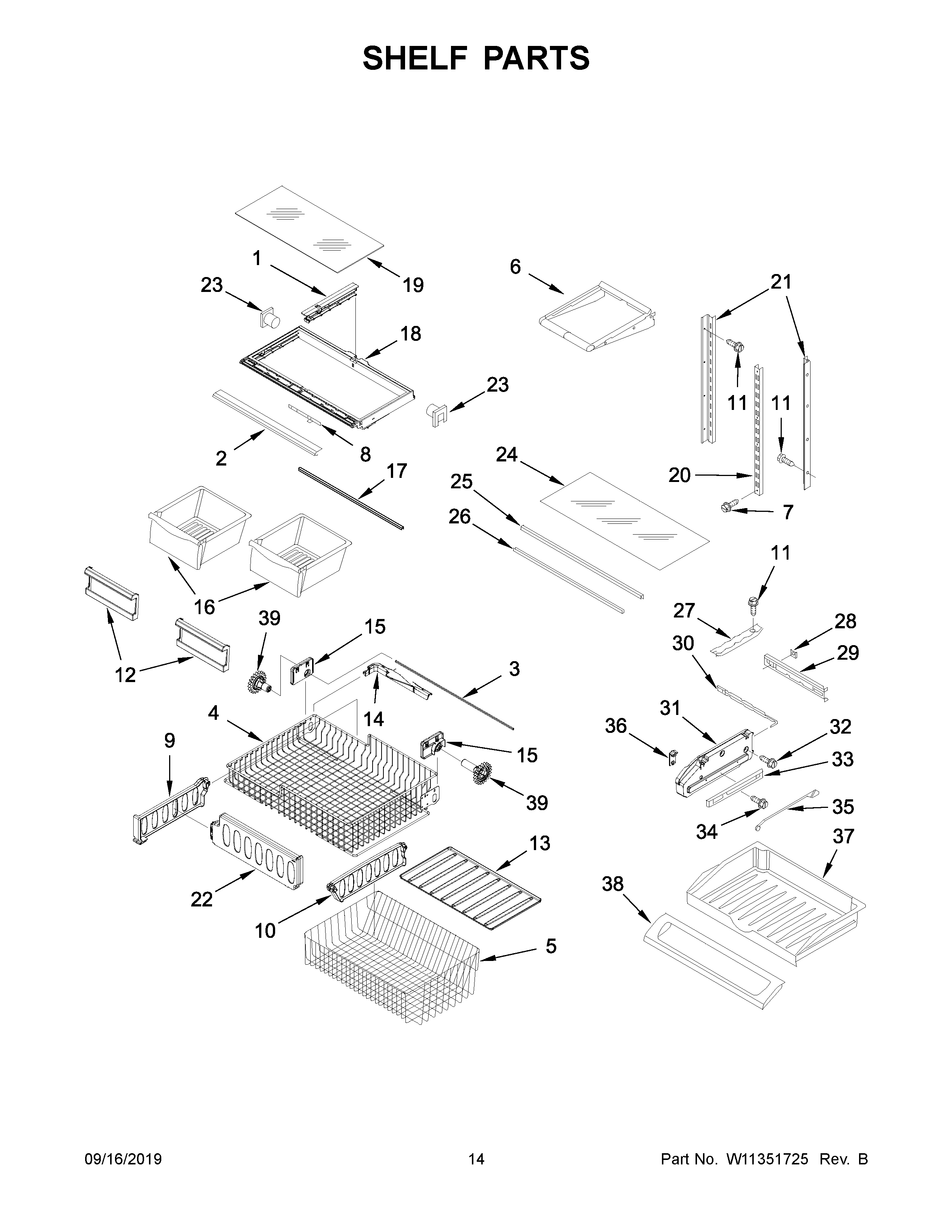

MFF2558FEZ03 08 – SHELF PARTSadmin2025-04-26T09:10:04+00:00MFF2558FEZ03 08 – SHELF PARTS
Products
| Position | Product |
|---|
| 1 | RAIL, CENTER CRISPER FRAME |
| 2 | MAY W10231345N |
| 3 | MAY W10802333 |
| 4 | BASKET, FREEZER (UPPER) |
| 5 | BASKET, FREEZER (LOWER) |
| 6 | ASSEMBLY, SHELF |
| 7 | MAY W10215666 |
| 8 | MAY 12530805SP |
| 9 | Divider, Upper Basket |
| 10 | Divider, Lower Basket |
| 11 | MAY 12990513 |
| 12 | HANDLE, CRISPER PAN (2) |
| 13 | TRAY, LOWER BASKET |
| 14 | MAY W10149389N |
| 15A | MOUNT-GEAR (RIGHT HAND) |
| 15 | MOUNT-GEAR (LEFT HAND) |
| 16 | MAY 12804601SP |
| 17 | Brace, Crisper (2) |
| 18 | MAY W10329866 |
| 19 | GLASS, CRISPER COVER |
| 20 | MAY W10273463 |
| 21 | MAY W10569182 |
| 22 | MAY W10171558 |
| 23 | MAY 13062602 |
| 24 | GLASS, SHELF |
| 25 | SUPPORT, GLASS |
| 26 | MAY 12227305WH |
| 27 | TRACK, PANTRY |
| 28 | MAY 12656901 |
| 29 | MAY 12656202 |
| 30 | SLIDE, TEMPERATURE |
| 31A | ENDCAP, PANTRY (RIGHT HAND) |
| 31 | ENDCAP, PANTRY (LEFT HAND) |
| 32 | MAY 12990504 |
| 33 | MAY W10235370 |
| 34 | SCREW (2) |
| 35 | ROD, TEMPERATURE CONTROL |
| 36 | KNOB, TEMP CONTROL |
| 37 | MAY 12731302 |
| 38 | DOOR, PANTRY DRAWER |
| 39A | MAY W10474715 |
| 39 | MAY W10474716 |
