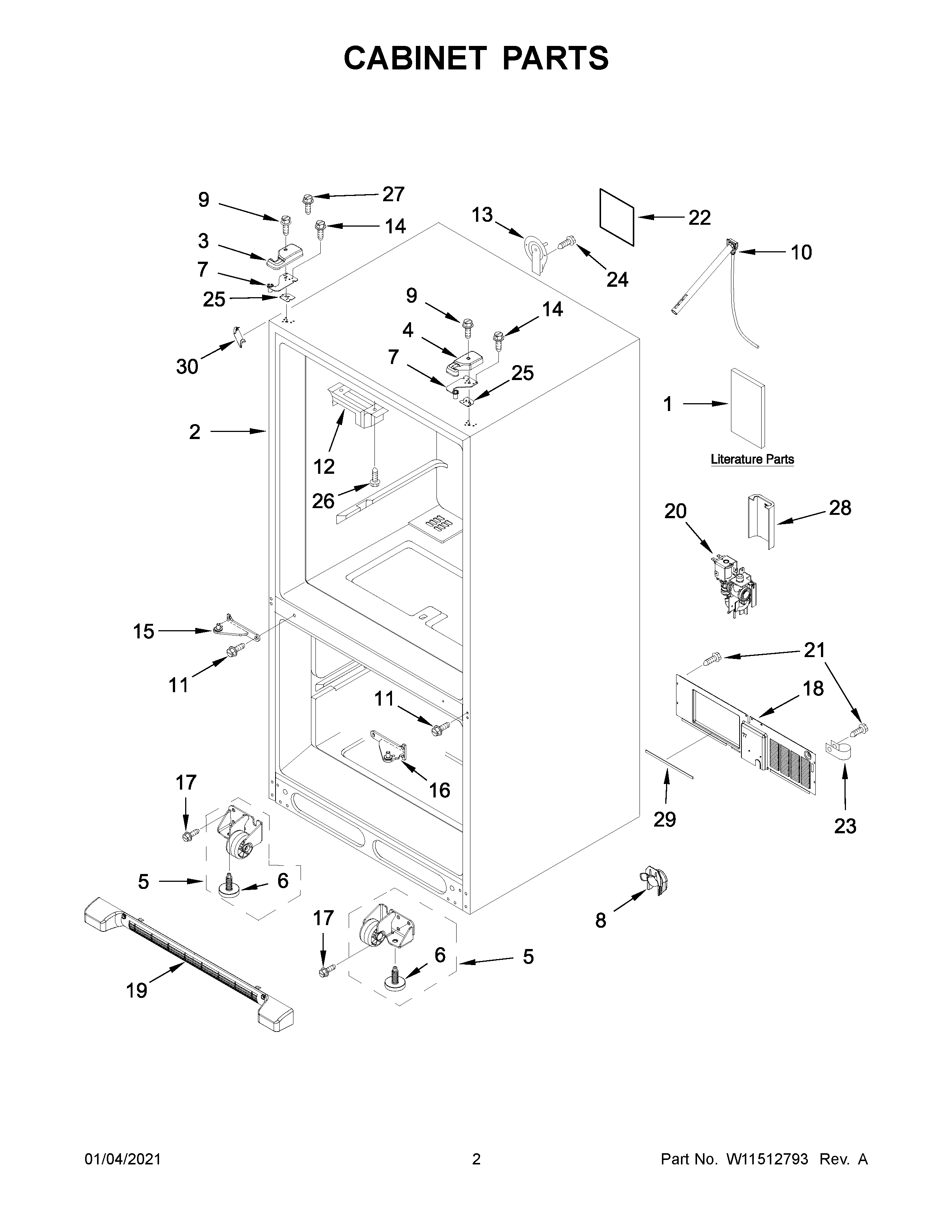

MFF2558FEZ06 02 – CABINET PARTS

MFF2558FEZ06 02 – CABINET PARTS

Written by

in

MFF2558FEZ06 02 – CABINET PARTS

Products

PositionProduct
1AENERGY GUIDE
1USE AND CARE GUIDE
1BTECH SHEET
2CABINET (NOT A SERVICEABLE PART)
3WPW10337648 Whirlpool Refrigerator Cover
4WPW10191117 Whirlpool Refrigerator Cover
5AWPW10515762 Whirlpool Refrigerator Cabinet Roller
5WPW10515763 Whirlpool Refrigerator Cabinet Roller
6WPW10141622 Whirlpool Leveler
7AW11592374 Whirlpool Refrigerator Top Door Hinge
7W11592375 Whirlpool Door Hinge
8W10485986 Whirlpool Tube Clamp
9WP8281196 Whirlpool Screw
10W11181718 Whirlpool Refrigerator Water Tube
11W11573362 Whirlpool Screw Assembly
12WP67003405 Whirlpool Pivot Block
1312726003 Whirlpool Refrigerator Water Cover
14WP489349 Whirlpool Refrigerator Screw
15W10917991 Whirlpool Refrigerator Door Hinge
16HINGE-DOOR
1767006564 Whirlpool Refrigerator Screw
18W10211854 Whirlpool Refrigerator Back Cover
19WPW10534155 Whirlpool Refrigerator Kickplate Grille Gray
20VALVE-REFR INLET
21SCREW
22WPL W11042480
23W11456069 Whirlpool Refrigerator Clamp
24WP98165 Whirlpool Screw
25A12999502 Whirlpool Refrigerator Hinge Shim
2512999501 Whirlpool Refrigerator Hinge Shim
26W11693756 Whirlpool Screw Assembly
27W11214483 Whirlpool Refrigerator Screw
28W10208592 Whirlpool Refrigerator Valve Cover
29GASKET
30WP12587703AP Whirlpool Refrigerator Filler
