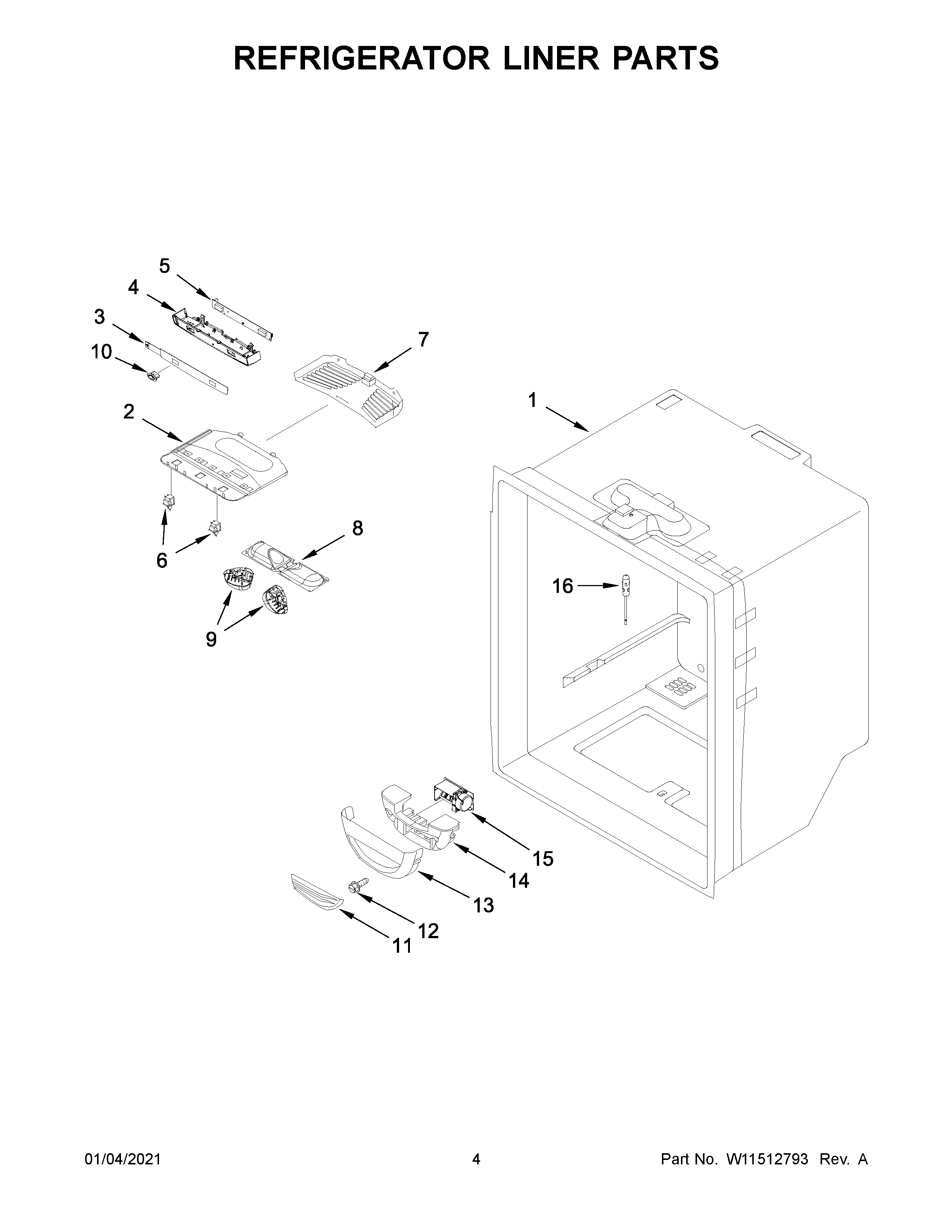

MFF2558FEZ06 03 – REFRIGERATOR LINER PARTS

MFF2558FEZ06 03 – REFRIGERATOR LINER PARTS

Written by

in

MFF2558FEZ06 03 – REFRIGERATOR LINER PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NIW11469743 Whirlpool Wire Harness Assembly
2W10464764 Whirlpool Refrigerator Housing
3W11469742 Whirlpool Refrigerator Overlay
4W11469741 Whirlpool Refrigerator Housing
5WPW10503278 Whirlpool Refrigerator Electronic Control Board
6W11123941 Whirlpool Refrigerator Switch
7W11284721 Whirlpool Refrigerator Cover
8W10443023 Whirlpool Refrigerator Housing
9MODULE
10W11469740 Whirlpool Refrigerator Switch
1167003900 Whirlpool Refrigerator Insert Damper Cover
12WP400021-1 Whirlpool Screw
13WP12806701 Whirlpool Refrigerator Box Cover
14INSULATION
15WPW10594330 Whirlpool Refrigerator Control
1612002355 Whirlpool Refrigerator Thermistor Kit
