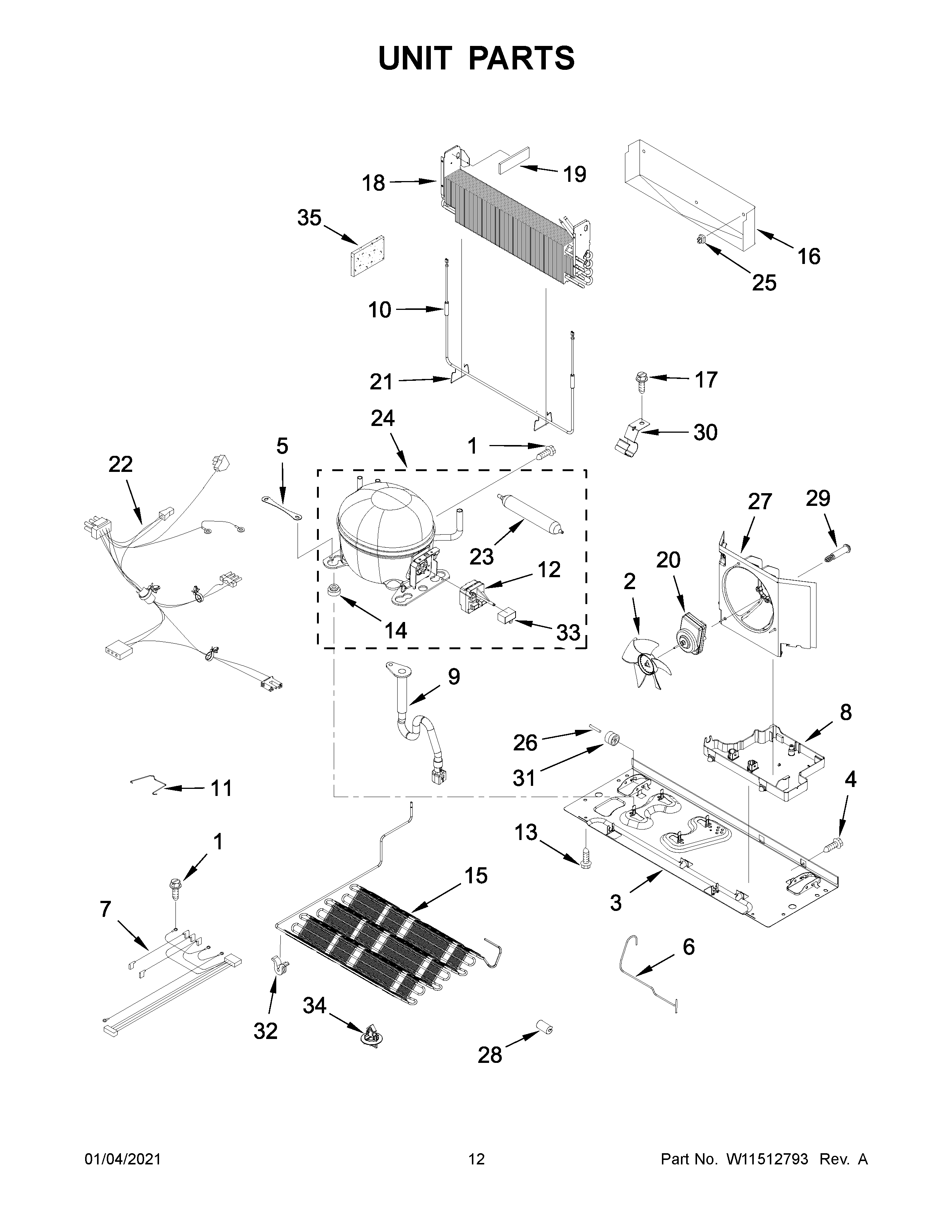

MFF2558FEZ06 07 – UNIT PARTS

MFF2558FEZ06 07 – UNIT PARTS

Written by

in

MFF2558FEZ06 07 – UNIT PARTS

Products

Position	Product
NI	978030 Whirlpool Refrigerator Valve
NI	VALVE, ACCESS (5/8“)
NI	876764 Whirlpool Refrigerator Primary Valve
NI	978026 Whirlpool Refrigerator Primary Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	CABINET (NOT A SERVICEABLE PART)
NI	WP978025 Whirlpool Refrigerator Valve
1	12992301 Whirlpool Refrigerator Screw
2	WP12825803 Whirlpool Refrigerator Fan Blade
3	W11727651 Whirlpool Plate Assembly
4	67006425 Whirlpool Refrigerator Screw
5	W10236396 Whirlpool Refrigerator Strap
7	W11260592 Whirlpool Refrigerator Wire Harness
8	WPW10655368 Whirlpool Refrigerator Drip Pan
9	W10619951 Whirlpool Drain Tube with Grommet
10	WP12729123 Whirlpool Refrigerator Heater
11	W11092534 Whirlpool Refrigerator Clip
12	W11092533 Whirlpool Device Start
13	Screw
14	W11678963 Whirlpool Grommet
15	W11644420 Whirlpool Condenser
16	W11547653 Whirlpool Refrigerator Drip Tray
17	WP33001882 Whirlpool Screw
18	W11256565 Whirlpool Refrigerator Evaporator
19	W11451451 Whirlpool Refrigerator Gasket
20	W11613295 Whirlpool Condenser Motor
21	W11673433 Whirlpool Clip
22	W11218258 Whirlpool Refrigerator Wire Harness
23	WPW10143759 Whirlpool Dryer Filter
24	W11209866 Whirlpool Refrigerator Compressor
25	CLIP, EVAP (2)
26	67006434 Whirlpool Axle Pin
27	W11556315 Whirlpool Shroud
28	W10852725 Whirlpool Refrigerator Grommet
29	W10829281 Whirlpool Refrigerator Screw
30	W10281329 Whirlpool Clamp
31	WP67005149 Whirlpool Roller
32	WPW10137529 Whirlpool Refrigerator Grommet
33	WPW10350564 Whirlpool Refrigerator Freezer Capacitor
34	W10815863 Whirlpool Clip
35	W11553819 Whirlpool Refrigerator Insulation
