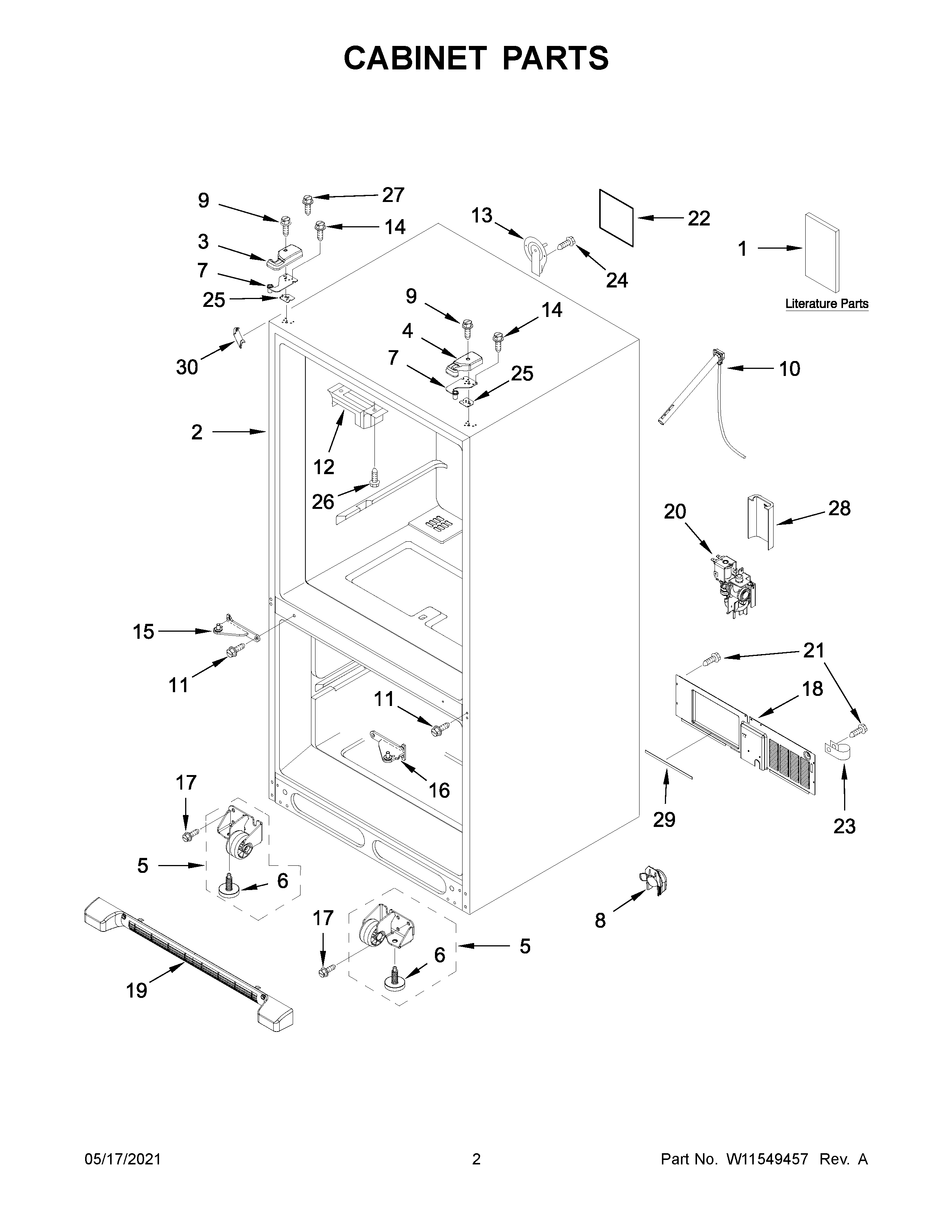

MFF2558FEZ08 02 – CABINET PARTS

Products

Position	Product
1A	ENERGY GUIDE
1	USE AND CARE GUIDE
1B	TECH SHEET
2	CABINET (NOT A SERVICEABLE PART)
3	WPW10337648 Whirlpool Refrigerator Cover
4	WPW10191117 Whirlpool Refrigerator Cover
5	WPW10515763 Whirlpool Refrigerator Cabinet Roller
5A	WPW10515762 Whirlpool Refrigerator Cabinet Roller
6	WPW10141622 Whirlpool Leveler
7	W11592375 Whirlpool Door Hinge
7A	W11592374 Whirlpool Refrigerator Top Door Hinge
8	W10485986 Whirlpool Tube Clamp
9	WP8281196 Whirlpool Screw
10	W11181718 Whirlpool Refrigerator Water Tube
11	W11573362 Whirlpool Screw Assembly
12	WP67003405 Whirlpool Pivot Block
13	12726003 Whirlpool Refrigerator Water Cover
14	WP489349 Whirlpool Refrigerator Screw
15	W10917991 Whirlpool Refrigerator Door Hinge
16	HINGE-DOOR
17	67006564 Whirlpool Refrigerator Screw
18	W10211854 Whirlpool Refrigerator Back Cover
19	WPW10534155 Whirlpool Refrigerator Kickplate Grille Gray
20	W11519244 Whirlpool Refrigerator Valve
21	SCREW
22	WPL W11042480
23	W11456069 Whirlpool Refrigerator Clamp
24	WP98165 Whirlpool Screw
25A	12999502 Whirlpool Refrigerator Hinge Shim
25	12999501 Whirlpool Refrigerator Hinge Shim
26	W11693756 Whirlpool Screw Assembly
27	W11214483 Whirlpool Refrigerator Screw
28	W10208592 Whirlpool Refrigerator Valve Cover
29	W11534848 Whirlpool Gasket
30	WP12587703AP Whirlpool Refrigerator Filler
