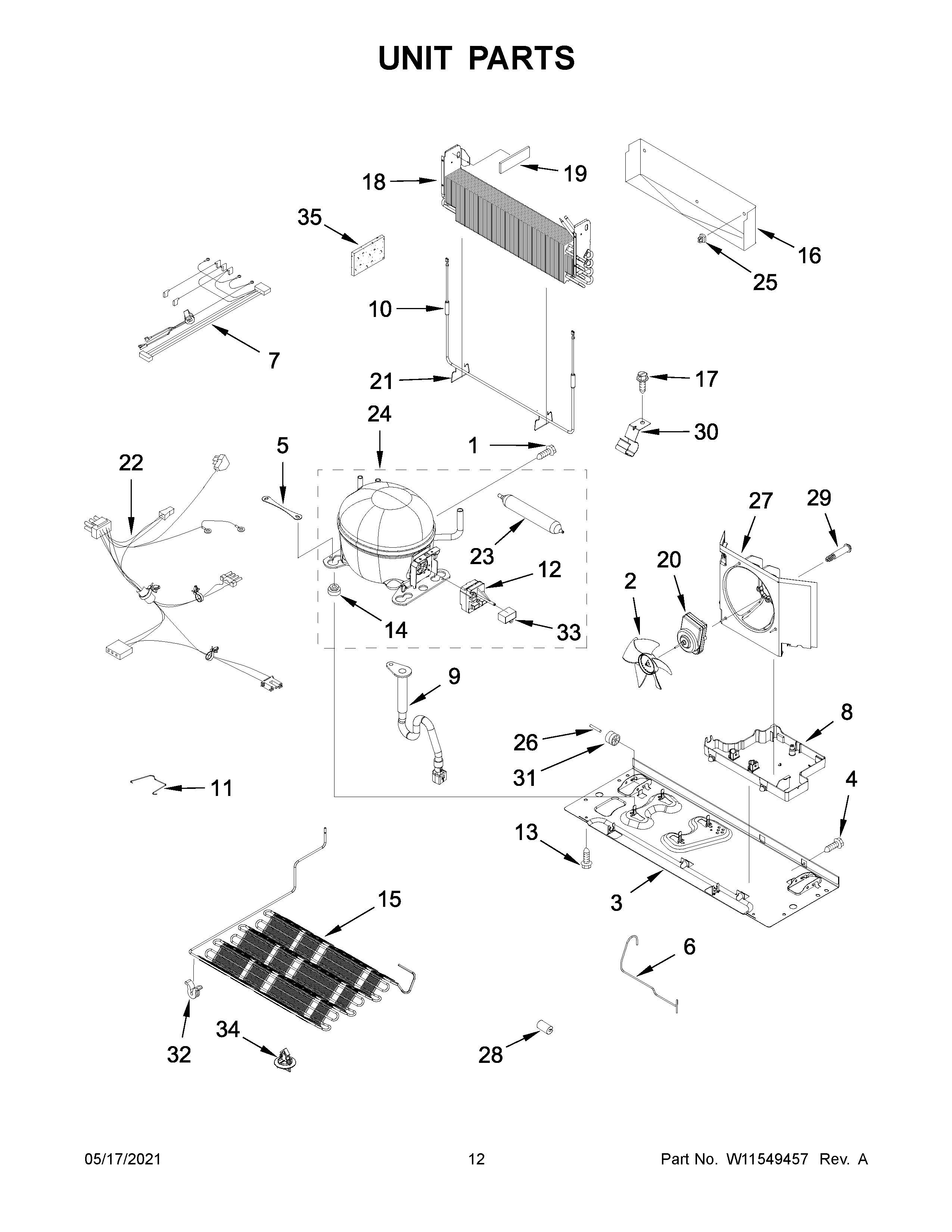

MFF2558FEZ08 07 – UNIT PARTS

MFF2558FEZ08 07 – UNIT PARTS

MFF2558FEZ08 07 – UNIT PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
112992301 Whirlpool Refrigerator Screw
2WP12825803 Whirlpool Refrigerator Fan Blade
3W11727651 Whirlpool Plate Assembly
467006425 Whirlpool Refrigerator Screw
5W10236396 Whirlpool Refrigerator Strap
7W11524653 Whirlpool Refrigerator Wire Harness
8WPW10655368 Whirlpool Refrigerator Drip Pan
9W10619951 Whirlpool Drain Tube with Grommet
10W11547652 Whirlpool Refrigerator Heater
11WPL W11379613
12W11524472 Whirlpool Refrigerator Start Device
13Screw
14WPW10169124 Whirlpool Refrigerator Grommet
15AW11506623 Whirlpool Refrigerator Coupler
15W11644420 Whirlpool Condenser
15BW11504432 Whirlpool Refrigerator Coupler
16W11547653 Whirlpool Refrigerator Drip Tray
17WP33001882 Whirlpool Screw
18BW11504415 Whirlpool Refrigerator Coupler
18W11598433 Whirlpool Refrigerator Evaporator Repair
18AW11504423 Whirlpool Refrigerator Coupler
19W11451451 Whirlpool Refrigerator Gasket
20W11613295 Whirlpool Condenser Motor
21W11380964 Whirlpool Clip Assembly
22W11741475 Whirlpool Wire Harness
23W11109499 Whirlpool Refrigerator Tube
23BW11504447 Whirlpool Refrigerator Coupler
23AW11504445 Whirlpool Refrigerator Coupler
24BW11504431 Whirlpool Microwave Coupler
24CW11506621 Whirlpool Refrigerator Coupler
24W11547313 Whirlpool Refrigerator Compressor
24DW11506635 Whirlpool Refrigerator Valve Coupler
24AW11504416 Whirlpool Refrigerator Coupler
25CLIP, EVAP (2)
2667006434 Whirlpool Axle Pin
27W11556315 Whirlpool Shroud
28W10852725 Whirlpool Refrigerator Grommet
29W10829281 Whirlpool Refrigerator Screw
30W10281329 Whirlpool Clamp
31WP67005149 Whirlpool Roller
32WPW10137529 Whirlpool Refrigerator Grommet
33WPW10350564 Whirlpool Refrigerator Freezer Capacitor
34W10815863 Whirlpool Clip
35W11553819 Whirlpool Refrigerator Insulation
