MFF2558KEW 03 – CONTROLS

MFF2558KEW 03 – CONTROLS

Written by

in

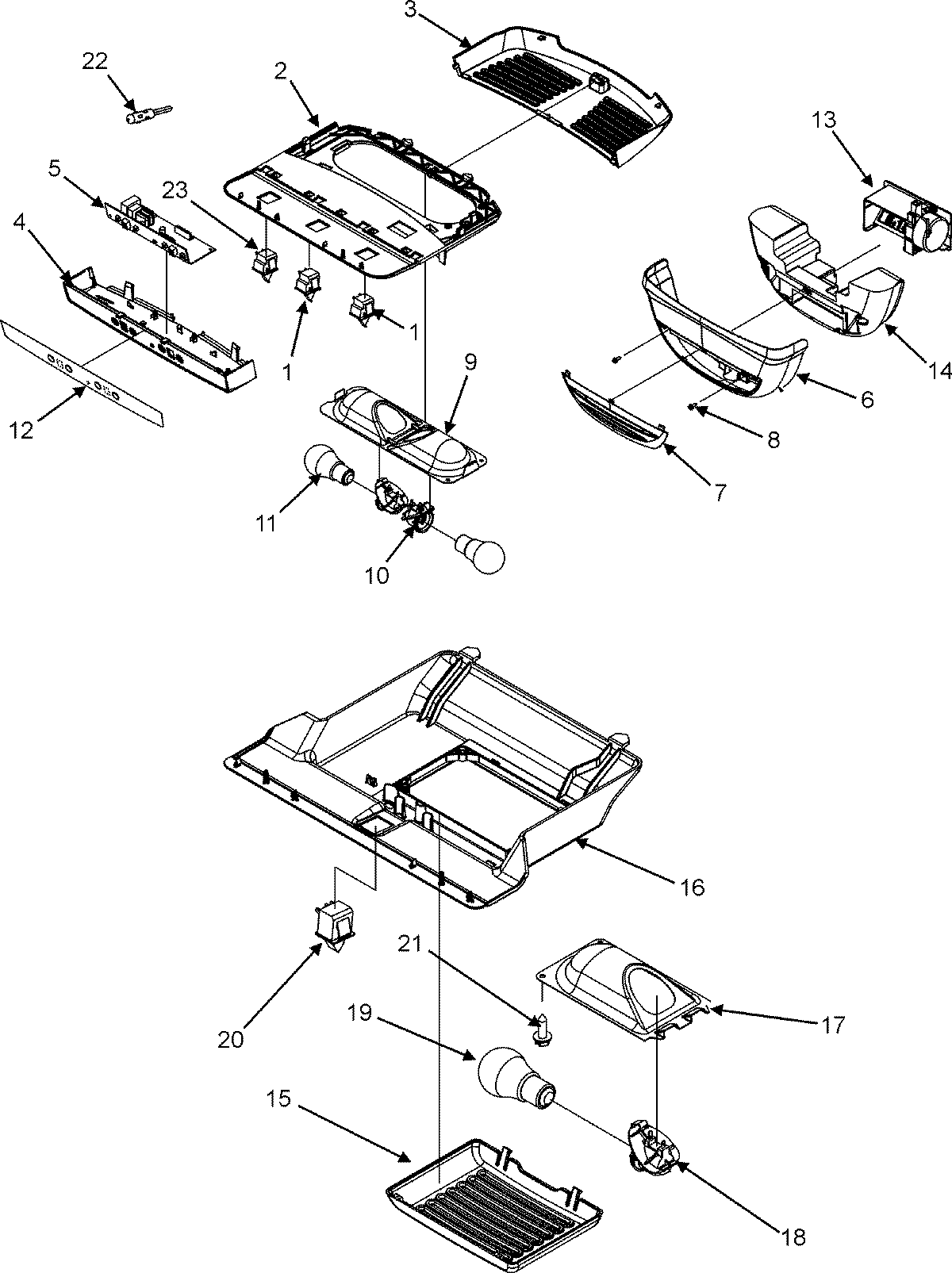

MFF2558KEW 03 – CONTROLS

Products

PositionProduct
1Switch, Light (2)
2MAY 67004078
3W11284721 Whirlpool Refrigerator Cover
4MODULE, REF CONTROL
5BOARD, CONTROL
6WP12806701 Whirlpool Refrigerator Box Cover
767003900 Whirlpool Refrigerator Insert Damper Cover
8MAY 67006602
912806601 Whirlpool Refrigerator Light Housing
11RANGE ONLY 40W 120V APPL BULB
12MAY 67004642
13WP67003903 Whirlpool Refrigerator Damper Control
13HARNESS, DAMPER
14WP67003904 Whirlpool Refrigerator Insulation
15MAY 67003905
1667003906 Whirlpool Refrigerator Control Module
17MAY 67001035
18Socket, Light (2)
20MAY 67005653
21MAY 67006530
2212002355 Whirlpool Refrigerator Thermistor Kit
23W11478401 Whirlpool Refrigerator Housing
24MAY 67006095
24WP12868601 Whirlpool Refrigerator Wire Harness
