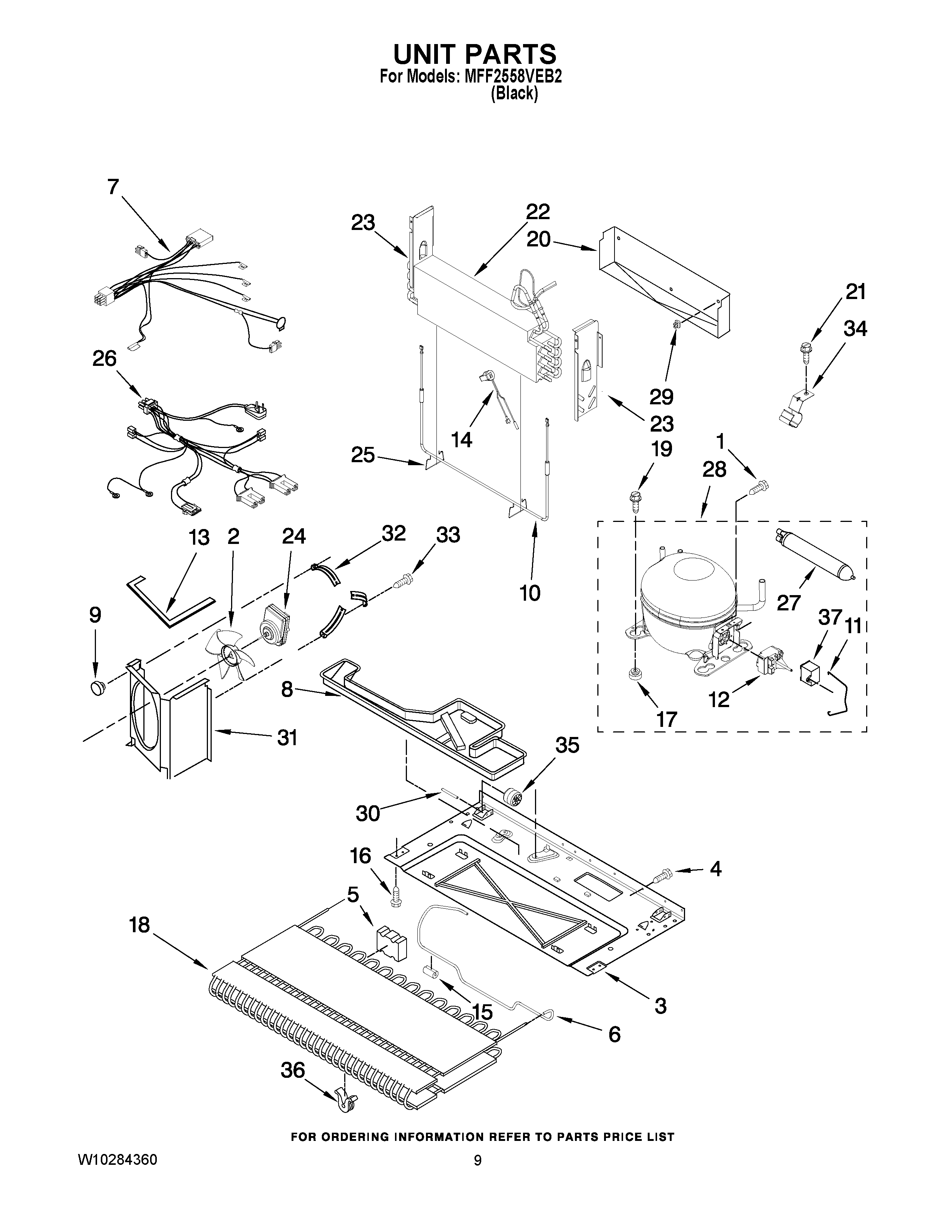

MFF2558VEB2 06 – UNIT PARTS

Products

Position	Product
NI	MAY 876764
NI	VALVE, ACCESS (1/4“)
NI	Valve, Access (3/4“)
NI	Valve, Access (5/16“)
NI	Valve, Access (5/8“)
NI	VALVE, ACCESS (3/8“)
NI	Valve, Access (1/2“)
NI	LINER (NOT A SERVICEABLE PART)
1	MAY 12992301
2	Fan, Blade
3	MAY 12457109
4	SCREW (10)
5	MAY 12933001
6	MAY W10183708
7	MAY W10119856
8	Drain Pan
9	GROMMET, BRACKET
10	MAY 12729105
11	Clip, Retaining
12	START DEVICE
13	WP854334 Whirlpool Air Conditioner Sealing Strip
14	Thermostat
15	GROMMET (2)
16	MAY 12992101
17	Grommet (4)
18	MAY W10135026
19	Screw (2)
20	MAY 12225403WD
21	MAY 12990701
22	MAY 12726403
23	MAY 12225601
23	MAY 12225701
24	MAY 12825101
25	W11673433 Whirlpool Clip
26	Harness, Unit Includes Cord
27	Drier
28	Compressor (Includes items 11,12,17,27,29)
29	MAY 10623002
30	Axle, Roller (2)
31	Shroud, Condenser
32	BRACKET, FAN MOTOR
33	Screw (3)
34	MAY 10547003
35	Roller (2)
36	GROMMET, COND (4)
37	Capacitator (Production)
