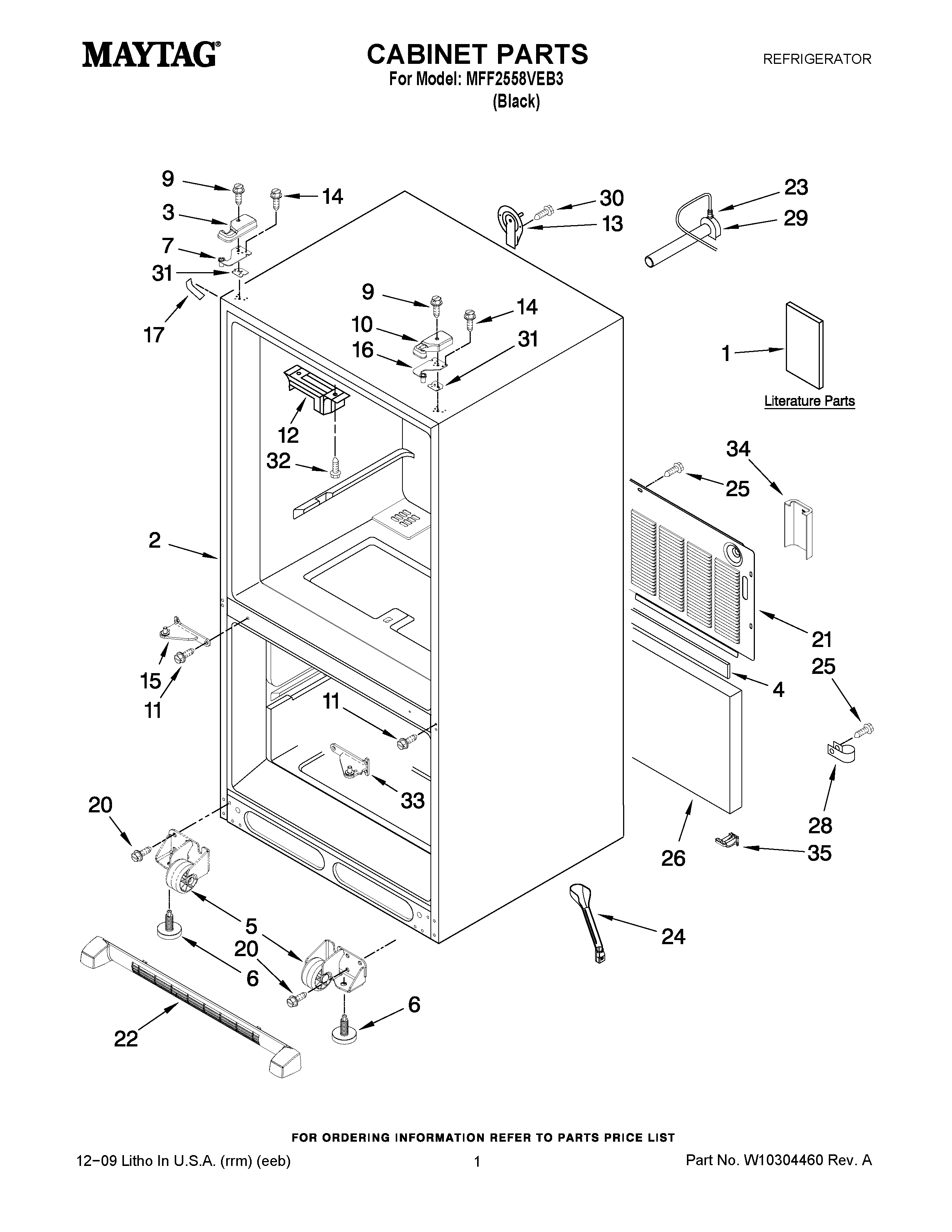

MFF2558VEB3 01 – CABINET PARTS

Products

Position	Product
1	MAY W10279332
1	MAY W10187813
1	Owners Manual
2	LINER (NOT A SERVICEABLE PART)
3	MAY 12962301B
4	MAY B5759655
5	ROLLER ASSY. (FRONT) (RIGHT)
5	ROLLER ASSY. (FRONT) (LEFT)
6	Foot Brake (2)
7	MAY 12963204ED
9	MAY 12992602
10	MAY 12962302B
11	MAY 12990101
12	Block, Pivot
13	MAY 12726003
14	SCREW (6)
15	HINGE, CENTER (BLACK, LEFT)
16	MAY 12963205ED
17	COVER, CORNER (BLACK)
20	Screw (8)
21	MAY W10211854
22	GRILLE ASSEMBLY (INCLUDES CLIPS) (BLACK)
23	CLIP
24	MAY W10210988
25	SCREW (10)
26	Insulation, Sound
28	W10833902 Whirlpool Refrigerator Clamp
29	MAY 10463203SP
30	MAY 12990504
31	MAY 12999502
31	MAY 12999501
32	SCREW (2)
33	HINGE, CENTER (BLACK, RIGHT )
34	GUARD-WATER VALVE
35	MAY W10216614
