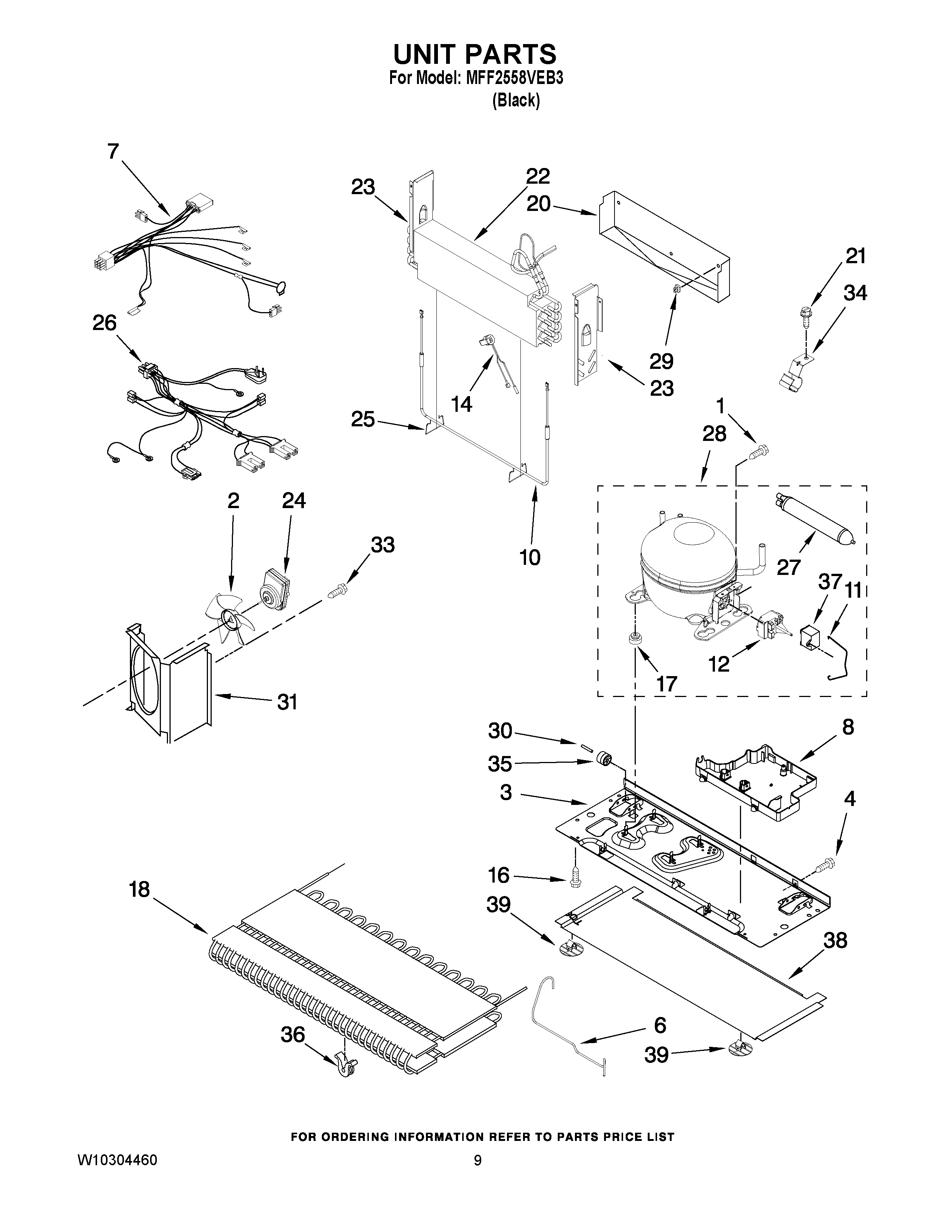

MFF2558VEB3 06 – UNIT PARTS

Products

Position	Product
NI	LINER (NOT A SERVICEABLE PART)
NI	VALVE, ACCESS (1/4“)
NI	Valve, Access (5/16“)
NI	VALVE, ACCESS (3/8“)
NI	Valve, Access (1/2“)
NI	Valve, Access (3/4“)
NI	Valve, Access (5/8“)
NI	MAY 876764
1	MAY 12992301
2	MAY 12825803
3	MAY W10210985
4	SCREW (10)
6	MAY W10233569
7	HARNESS, EVAP HEATER
8	MAY W10296785
10	EVAPORATOR HEATER
11	MAY W10174384
12	START PROTECT, COMBO (START DEVICE, COMBINATION (START RELAY AND OVERLOAD) FOR SERVICE COMPRESSOR ONLY)
14	Thermostat
16	MAY 12992101
17	Grommet (4)
18	MAY W10135026
20	MAY 12225403WD
21	MAY 12990701
22	MAY 12726403
23	Dam (Right Side)
23	DAM (LEFT SIDE)
24	MAY W10239053
25	W11673433 Whirlpool Clip
26	HARNESS, UNIT (INCLUDES POWER CORD)
27	Drier
28	MAY W10164016
29	MAY 10623002
30	Axle, Roller (2)
31	SHROUD
33	MAY W10216919
34	MAY 10547003
35	Roller (2)
36	GROMMET, COND (4)
37	Capacitator (Production)
38	EXTENSION, BASEPAN
39	MAY W10206339
