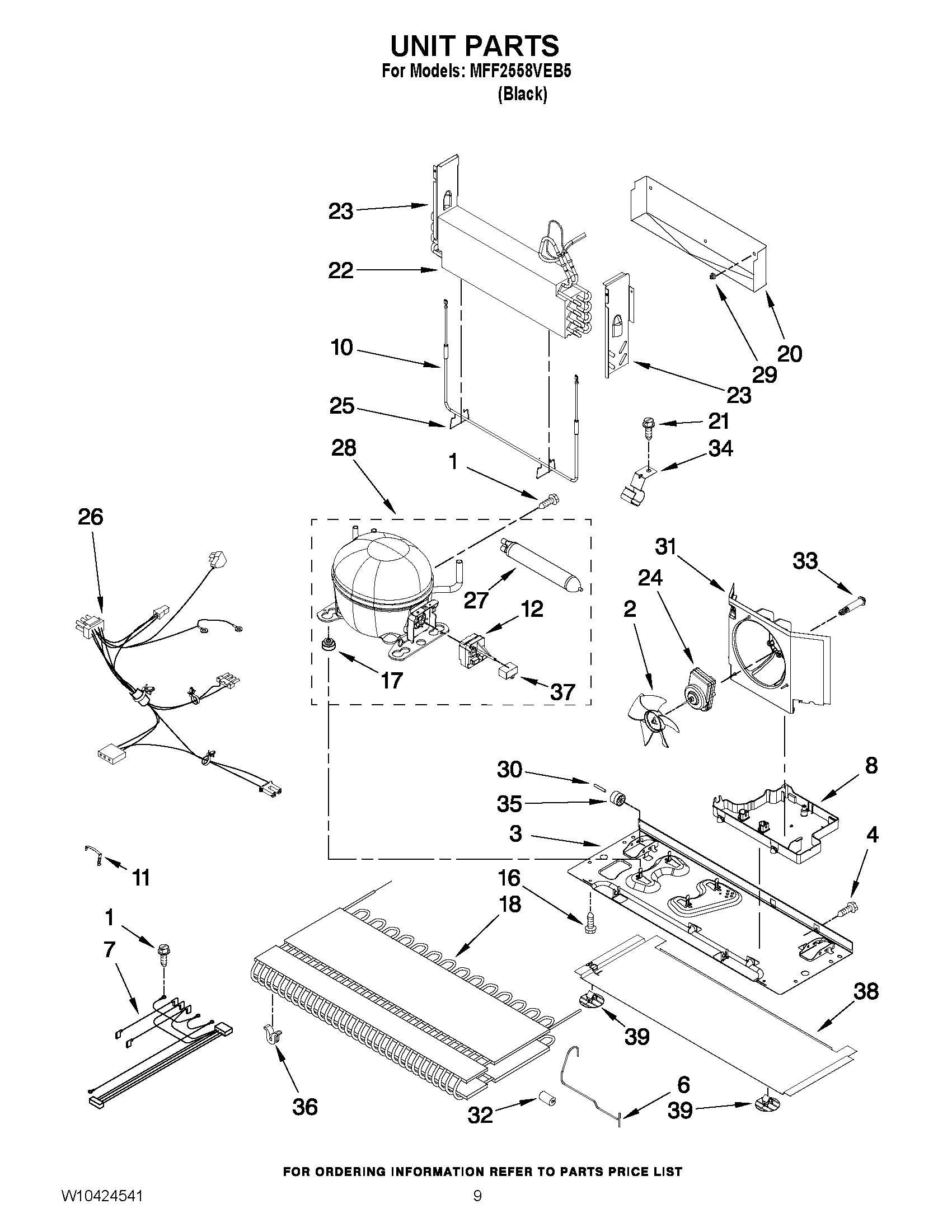

MFF2558VEB5 06 – UNIT PARTS

Products

Position	Product
NI	VALVE, ACCESS (1/4“)
NI	Valve, Access (5/8“)
NI	Valve, Access (1/2“)
NI	VALVE, ACCESS (3/8“)
NI	Valve, Access (5/16“)
NI	MAY 876764
NI	LINER (NOT A SERVICEABLE PART)
NI	Valve, Access (3/4“)
1	MAY 12992301
2	MAY 12825803
3	MAY W10210985
4	SCREW (10)
6	MAY W10233569
7	HARNESS, EVAPORATOR (INCLUDES HEATER)
8	MAY W10296785
10	EVAPORATOR HEATER
11	MAY W10216075
12	START DEVICE
16	MAY 12992101
17	Grommet (4)
18	MAY W10346415
20	MAY W10292803
21	MAY 12990701
22	MAY W10317014
23	Dam (Right Side)
23	DAM (LEFT SIDE)
24	MAY W10239053
25	W11673433 Whirlpool Clip
26	HARNESS, UNIT (INCLUDES POWER CORD)
27	Drier
28	MAY W10187125
29	MAY 10623002
30	Axle, Roller (2)
31	SHROUD
32	GROMMET, CONDENSER
33	MAY W10216919
34	MAY W10281329
36	GROMMET, COND (4)
37	Capacitator (Production)
38	EXTENSION, BASEPAN
39	MAY W10206339
