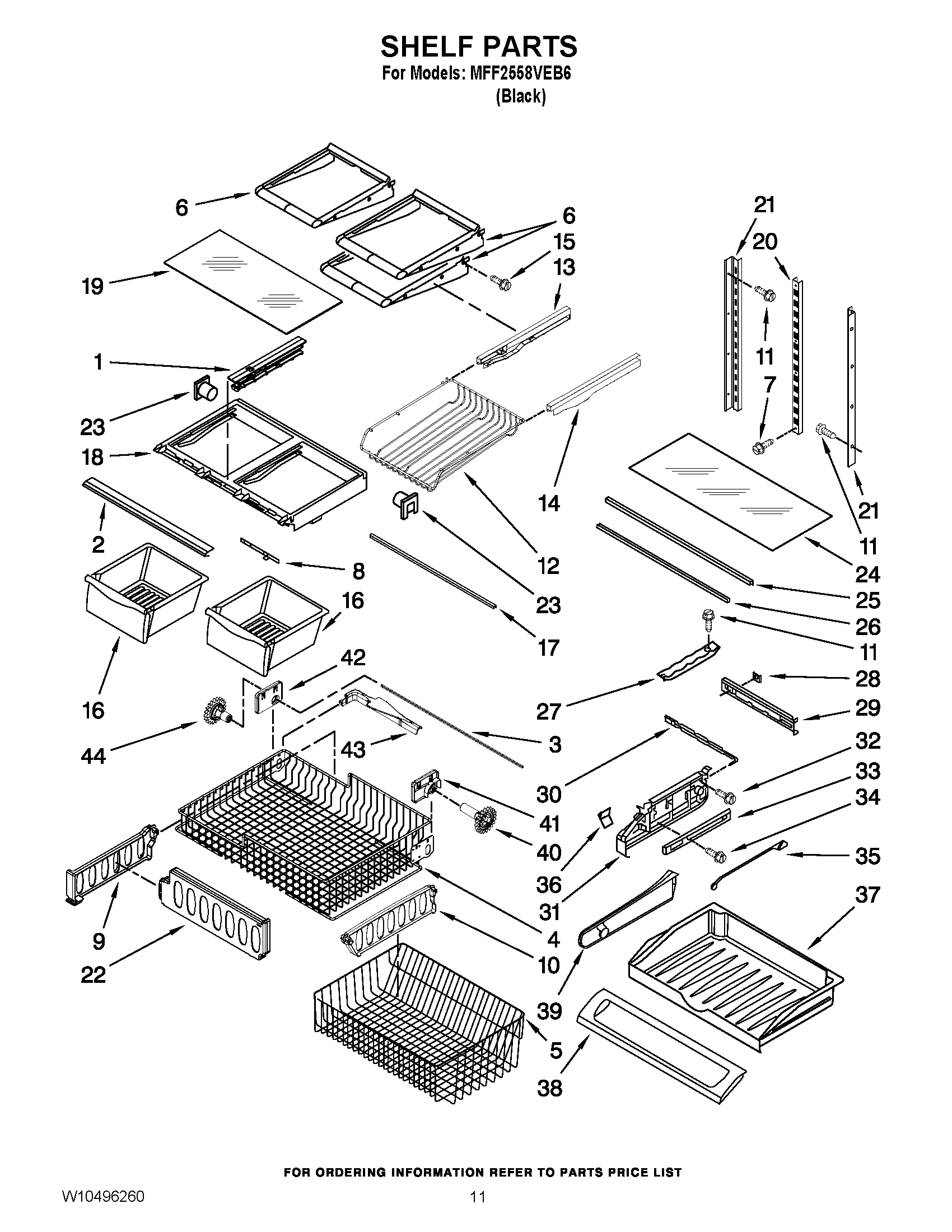

MFF2558VEB6 07 – SHELF PARTS
Written by
in
MFF2558VEB6 07 – SHELF PARTS
Products
Position
Product
1
RAIL, CENTER CRISPER FRAME
2
MAY W10231345N
3
MAY 12812904WD
4
MAY W10348246
5
MAY W10150039N
6
SHELF, STAT (2)
7
MAY W10215666
8
MAY 12530805SP
9
Divider, Upper Basket
10
DIVIDER, LOWER BASKET
11
MAY 12990513
12
MAY 12503805SP
13
GLIDE, LEFT
14
GLIDE, RIGHT
15
SCREW
16
CRISPER (2)
17
Brace, Crisper (2)
18
MAY W10329866
19
GLASS, CRISPER COVER
20
MAY W10273463
21
MAY W10251971
22
MAY W10171558
23
MAY 13062602
24
GLASS, PANTRY
25
MAY 12655902SP
26
MAY 12227305WH
27
TRACK, PANTRY
28
MAY 12656901
29
MAY 12656202
30
SLIDE, TEMPERATURE
31
ENDCAP, PANTRY (LEFT)
31
ENDCAP, PANTRY (RIGHT)
32
MAY 12990504
33
MAY W10235370
34
SCREW (2)
35
ROD, TEMPERATURE CONTROL
36
MAY 12655204V
37
MAY 12731302
38
MAY 12656815
39
DIVIDER, PANTRY DRAWER
40
MAY W10146446
41
MOUNT-GEAR (RIGHT HAND)
42
MOUNT-GEAR (LEFT HAND)
43
MAY W10149389N
44
MAY W10158749
←
