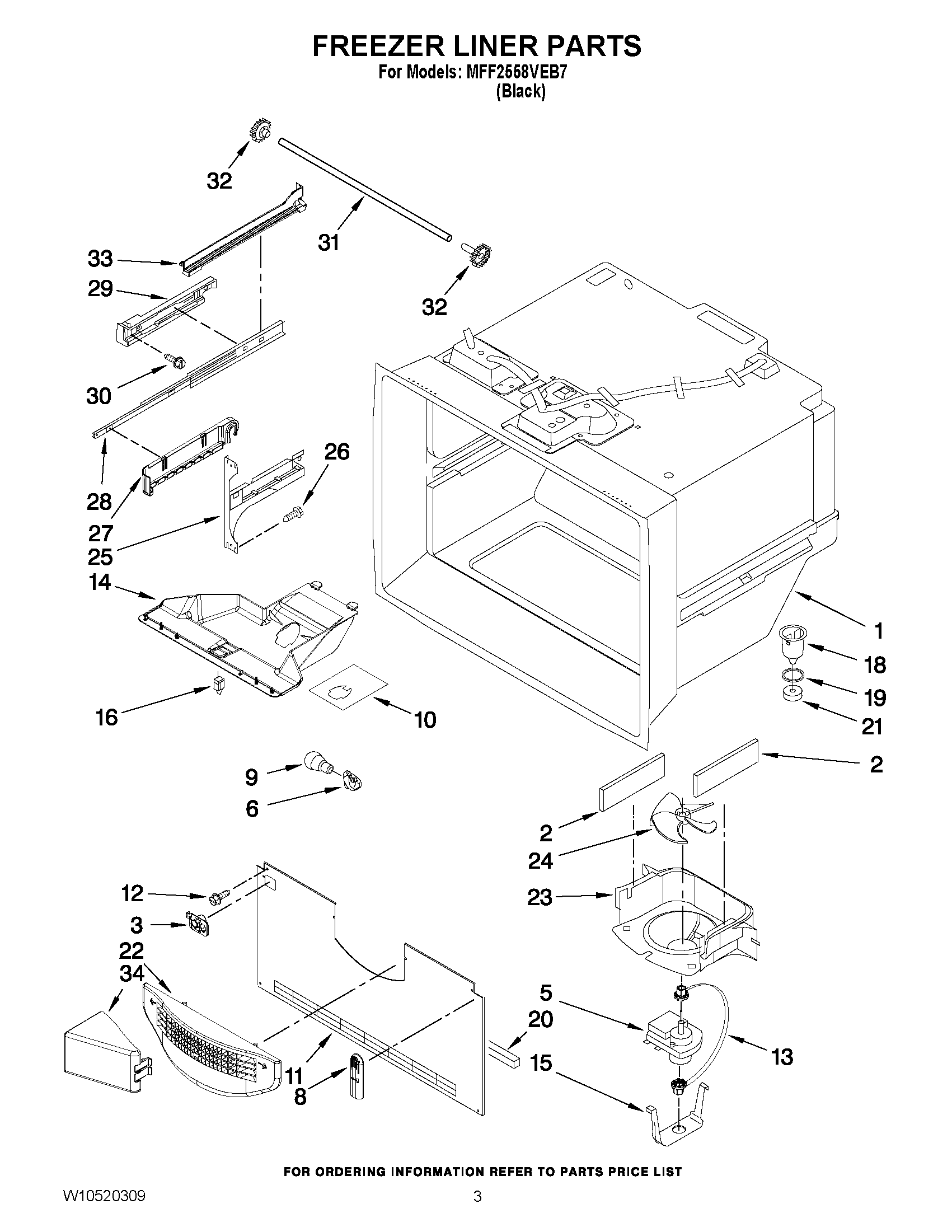

MFF2558VEB7 02 – FREEZER LINER PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2Gasket, Bottom
3MAY 12932103
5MAY W10128551
6W11447232 Whirlpool Refrigerator Socket
8MAY 12815301
9MAY W10311505
10FOIL-FZ LIGHT
11MAY W10308416
12SCREW (10)
13MAY W10121318
14MODULE-FZ LIGHT
15CLIP, EVAP. MOTOR
16MAY 12466105
18MAY D7753903
19MAY M0500703
20GASKET, BOTTOM
21Gasket
22Grille, Fz Air
23SHROUD, EVAP.FAN
24Blade, Fan (Evaporator)
25BRACKET, DOOR (LEFT)
25BRACKET, DOOR (RIGHT)
26Screw (8)
27CRADLE-BASKET (RIGHT HAND)
27CRADLE-BASKET (LEFT HAND)
28SLIDE, DRAWER (2)
29ADAPTER, SLIDE (LEFT HAND)
29ADAPTER, SLIDE (RIGHT HAND)
30Screw (6)
31SHAFT
3212002497 Whirlpool Refrigerator Drawer Gear Kit
33RACK-SIDE (RIGHT)
33RACK-SIDE (LEFT)
34MAY W10157765
