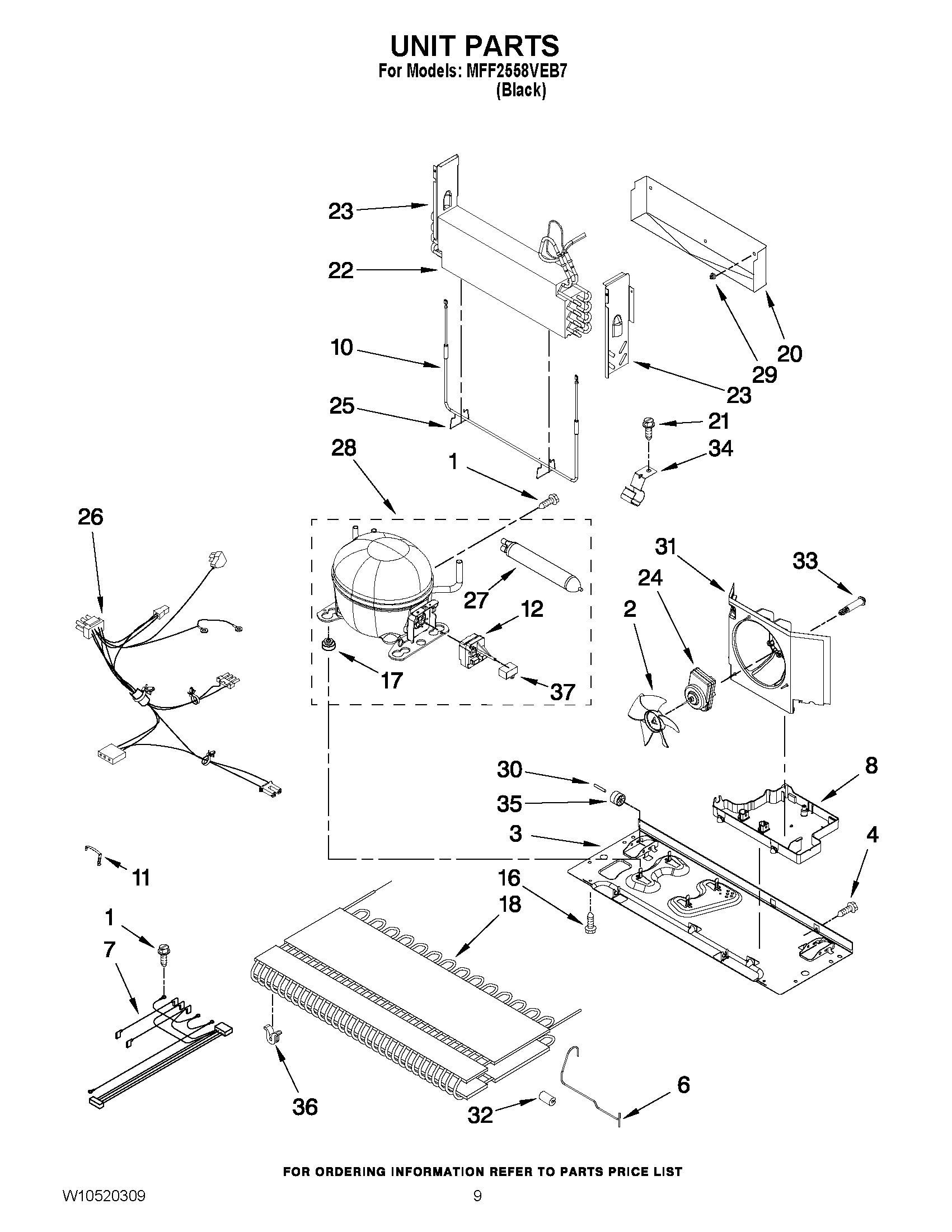

MFF2558VEB7 06 – UNIT PARTS

Products

Position	Product
NI	VALVE, ACCESS (3/8“)
NI	Valve, Access (3/4“)
NI	MAY 876764
NI	Valve, Access (5/8“)
NI	Valve, Access (1/2“)
NI	VALVE, ACCESS (1/4“)
NI	LINER (NOT A SERVICEABLE PART)
NI	Valve, Access (5/16“)
1	MAY 12992301
2	MAY 12825803
3	MAY W10480111
4	SCREW (10)
6	MAY W10233569
7	HARNESS, EVAPORATOR (INCLUDES HEATER)
8	MAY W10296785
10	EVAPORATOR HEATER
11	MAY W10216075
12	START DEVICE, COMBINATION (START RELAY AND OVERLOAD) (PRODUCTION)
16	MAY 12992101
17	Grommet (4)
18	MAY W10346415
20	MAY W10292803
21	MAY 12990701
22	MAY W10317014
23	Dam (Right Side)
23	DAM (LEFT SIDE)
24	MAY W10239053
25	W11673433 Whirlpool Clip
26	HARNESS, UNIT (INCLUDES POWER CORD)
27	Drier
28	COMPRESSOR KIT (CONTAINS ITEMS 12, 17, 27, & 29)
29	MAY 10623002
30	Axle, Roller (2)
31	SHROUD
32	GROMMET, CONDENSER
33	MAY W10216919
34	MAY W10281329
35	Roller (2)
36	GROMMET, COND (4)
37	Capacitator (Production)
