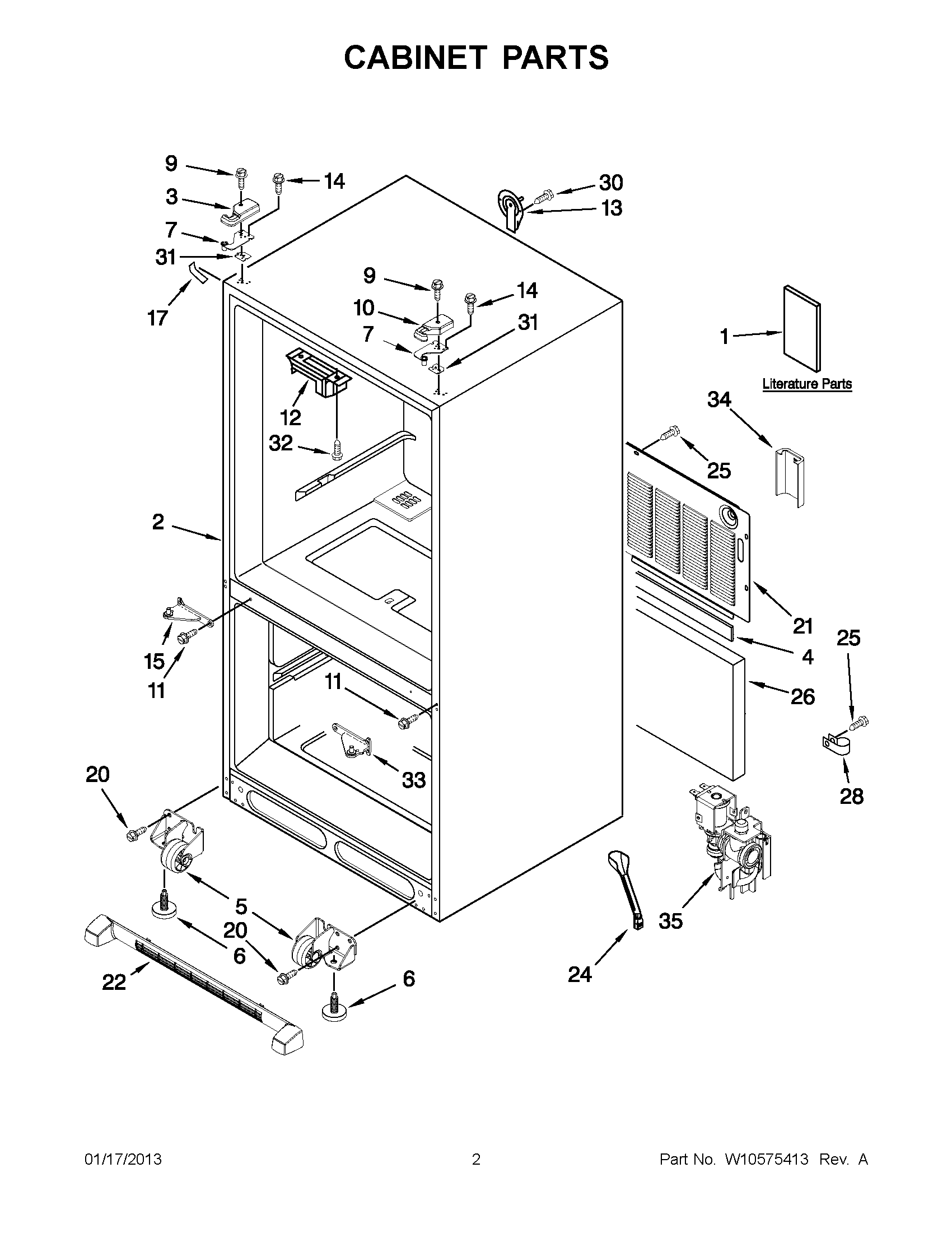

MFF2558VEB8 01 – CABINET PARTS

MFF2558VEB8 01 – CABINET PARTS

Written by

in

MFF2558VEB8 01 – CABINET PARTS

Products

PositionProduct
1MAY W10517966N
1MAY W10187813
1MAY W10366206
2LINER (NOT A SERVICEABLE PART)
3MAY 12962301B
4MAY B5759655
5ROLLER ASSEMBLY (LEFT HAND)
5ROLLER ASSEMBLY (RIGHT HAND)
6Brake, Foot
7MAY 12963204ED
7MAY 12963205ED
9MAY 12992602
10MAY 12962302BN
11MAY 12990101
12Block, Pivot
13MAY 12726003
14SCREW (6)
15HINGE, CENTER (BLACK, LEFT)
17COVER, CORNER (BLACK)
20Screw (8)
21MAY W10211854
22MAY W10244561N
24TUBE-DRAIN
25SCREW (10)
26Insulation, Sound
28CLAMP, TUBE
30MAY 12990504
31MAY 12999501
31MAY 12999502
32SCREW (2)
33HINGE, CENTER (BLACK, RIGHT )
34GUARD-WATER VALVE
35MAY W10498976
