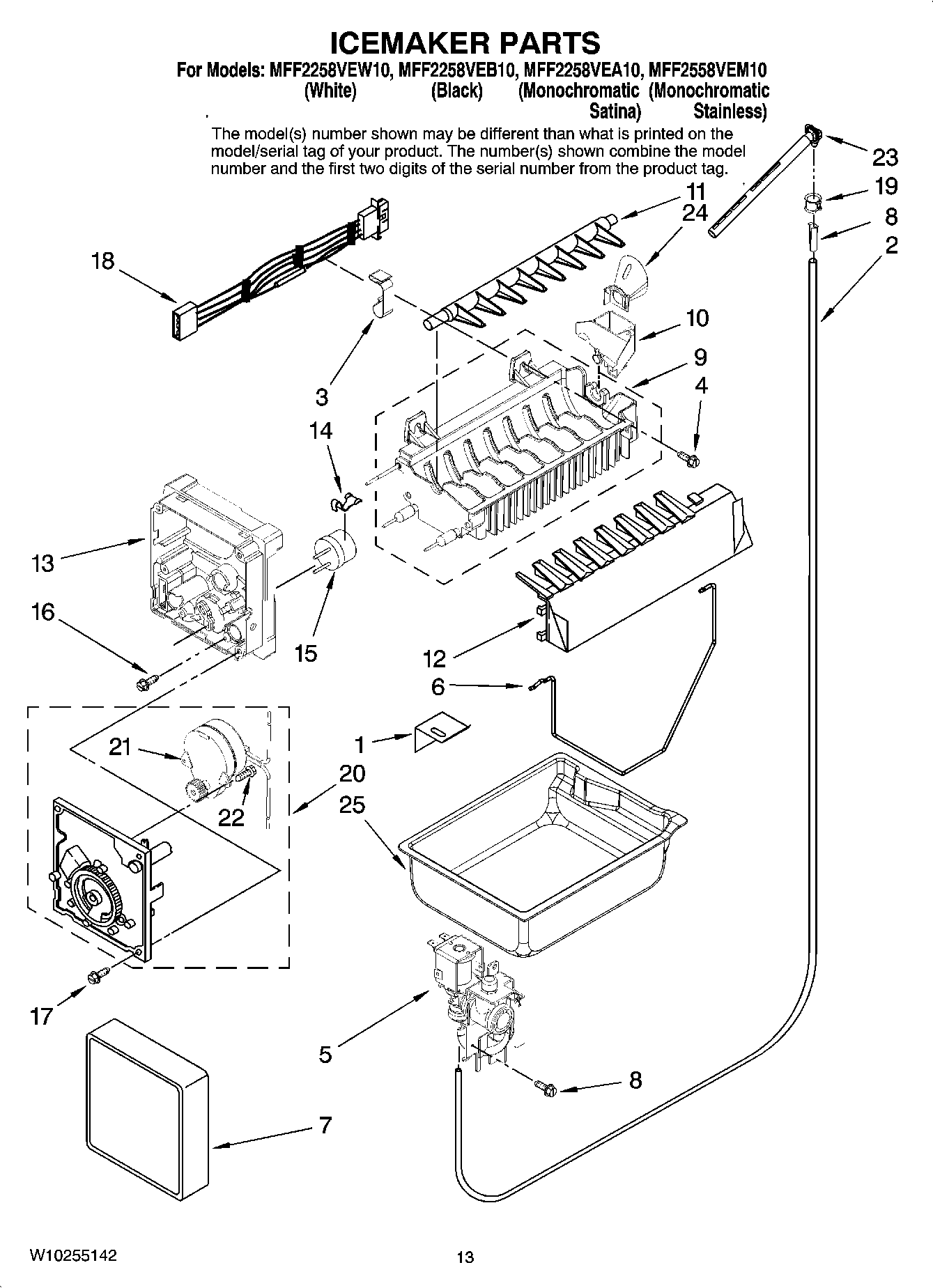

MFF2558VEM10 08 – ICEMAKER PARTS

Products

Position	Product
1	MAY 2256086
2	MAY B5705331
3	CLAMP, WIRE
4	MAY 489276
5	VALVE, WATER INLET
6	ARM, SHUTOFF
7	Cover
8	MAY A3223101
9	MAY W10122527
10	Cup, Fill
11	MAY 627843
12	MAY 2182124
13	MAY 2194712
14	MAY 2315522
15	Thermostat (Also Order 542369 Cement Alumilastic)
16	MAY 8533917
17	Screw (3)
18	HARNESS, ICEMAKER
19	Clip
20	MODULE ASSEMBLY (INCLUDES ITEM 24)
22	MAY 489136
23	MAY W10137519
24	MAY 12918001
25	MAY W10171529
100	ICEMAKER ASSEMBLY (COMPLETE)
