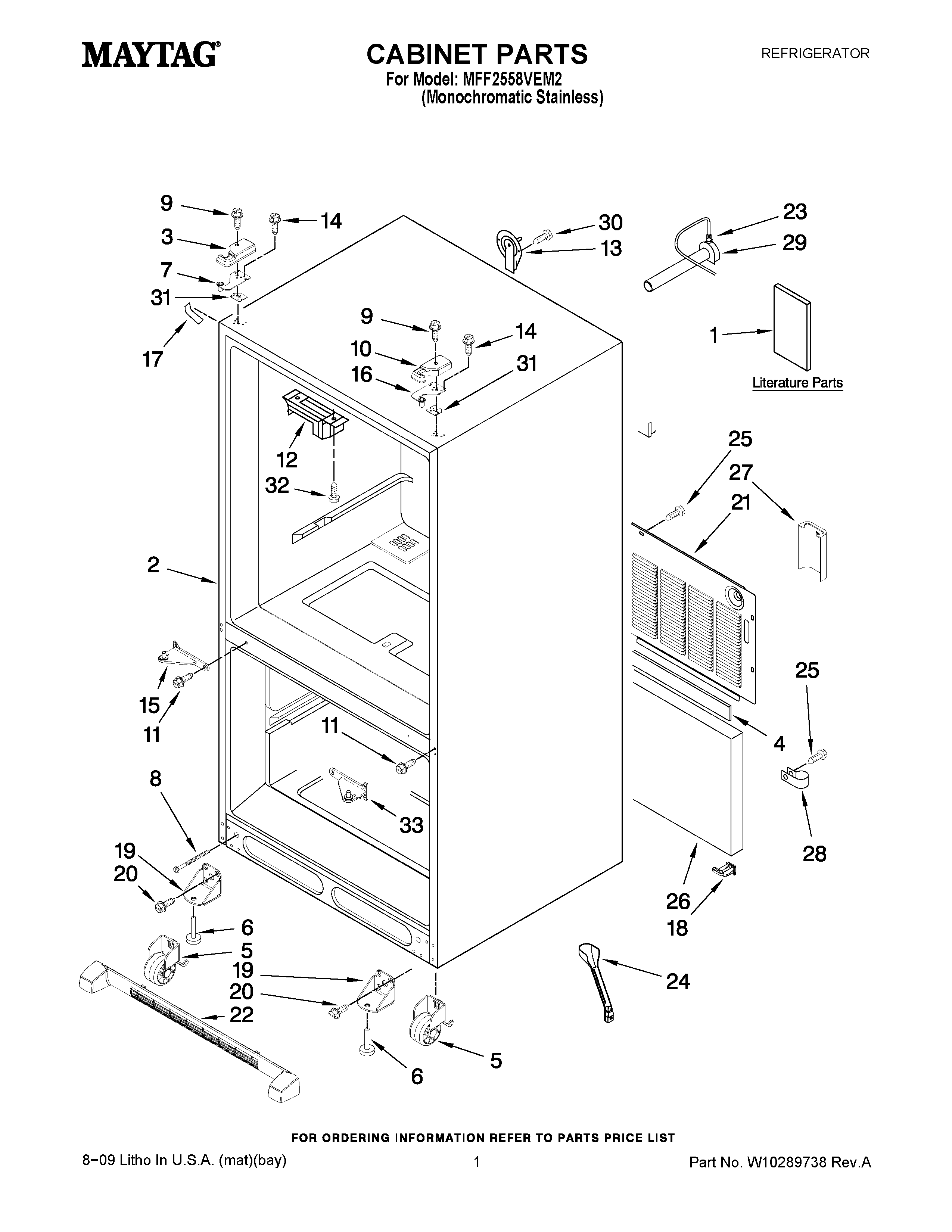

MFF2558VEM2 01 – CABINET PARTS

Products

Position	Product
1	MAY W10238844
1	MAY W10187813
1	Owners Manual
2	LINER (NOT A SERVICEABLE PART)
3	MAY 12962301AP
4	Gasket
5	ROLLER ASSY.(REAR)
6	Foot Brake (2)
7	MAY 12963204ED
8	Bolt, Adjusting (Rear)
9	MAY 12992602
10	MAY 12962302AP
11	MAY 12990101
12	Block, Pivot
13	MAY 12726003
14	SCREW (6)
15	HINGE, CENTER (LT) (GREY)
16	MAY 12963205ED
17	COVER, CORNER (GREY)
18	MAY W10216614
19	Bracket, Foot
20	Screw (8)
21	MAY W10211854
22	GRILLE, TOE (GREY)
23	CLIP
24	MAY W10210988
25	SCREW (10)
26	Insulation, Sound
27	GUARD-WATER VALVE
28	W10833902 Whirlpool Refrigerator Clamp
29	MAY 10463203SP
30	MAY 12990504
31	MAY 12999502
31	MAY 12999501
32	SCREW (2)
33	HINGE, CENTER (RT) (GREY)
