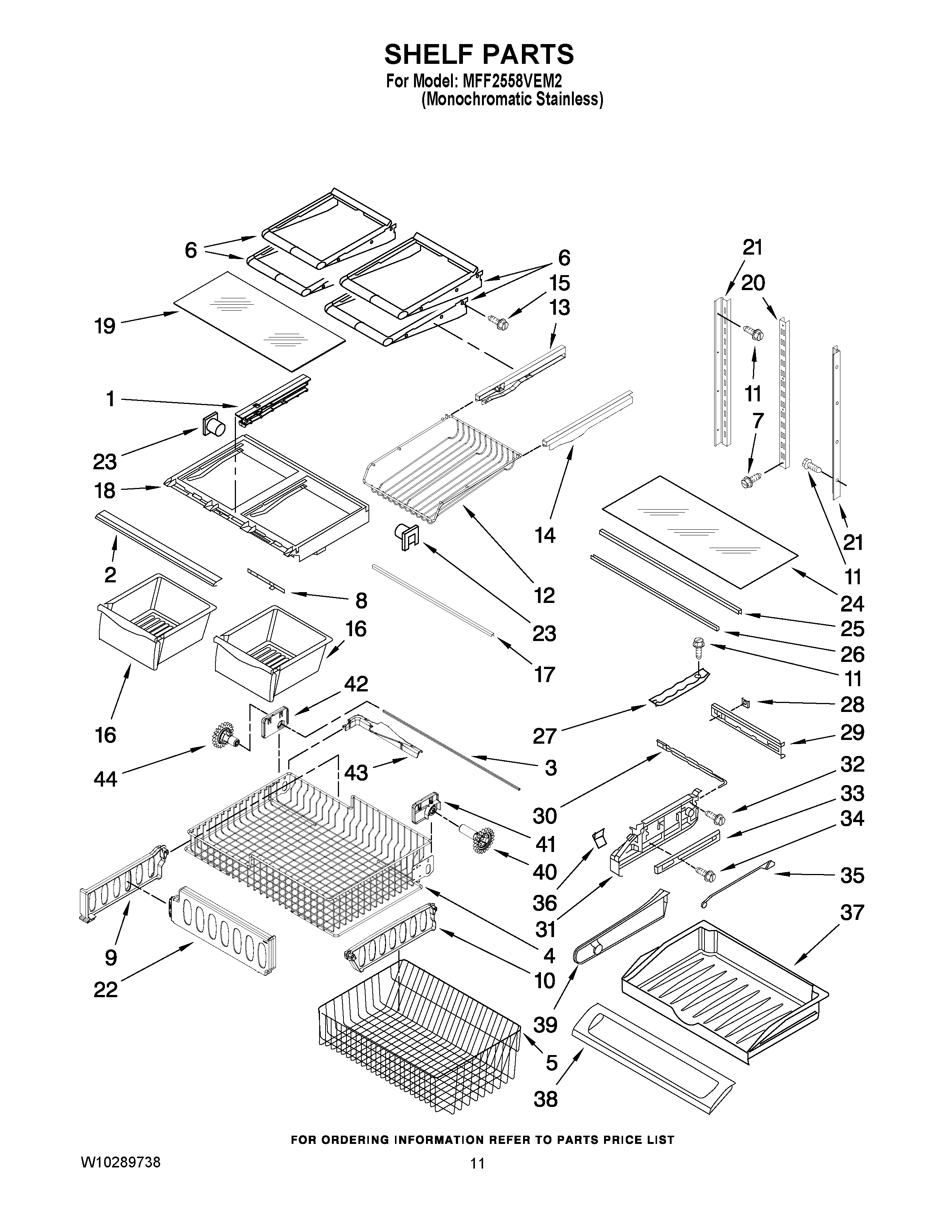

MFF2558VEM2 07 – SHELF PARTS
Written by
in
MFF2558VEM2 07 – SHELF PARTS
Products
Position
Product
1
RAIL, CENTER CRISPER
2
MAY W10231345
3
MAY 12812904WD
4
MAY W10209706
5
Basket, Freezer (Lower)
6
SHELF, STAT (2)
7
MAY 12990515
8
MAY 12530805SP
9
Divider, Upper Basket
10
Divider, Lower Basket
11
MAY 12990513
12
MAY 12503805SP
13
GLIDE, LEFT
14
GLIDE, RIGHT
15
SCREW
16
CRISPER (2)
17
Brace, Crisper (2)
18
FRAME, CRISPER (2)
20
MAY 12435807
21
MAY 12710608
22
MAY W10171558
23
MAY 13062602
24
MAY 12204824
25
MAY 12655902SP
26
MAY 12227305WD
27
TRACK, PANTRY
28
MAY 12656901
29
MAY 12656202
30
SLIDE, TEMPERATURE
31
ENDCAP, PANTRY (LEFT)
31
ENDCAP, PANTRY (RIGHT)
32
MAY 12990504
33
MAY 13058101V
34
SCREW (2)
35
ROD, TEMPERATURE CONTROL
36
MAY 12655204V
37
MAY 12731302
38
MAY 12656815
39
DIVIDER, PANTRY DRAWER
40
MAY W10146446
41
MAY W10233899
42
MAY W10233898
43
MAY W10149389
44
MAY W10158749
←
