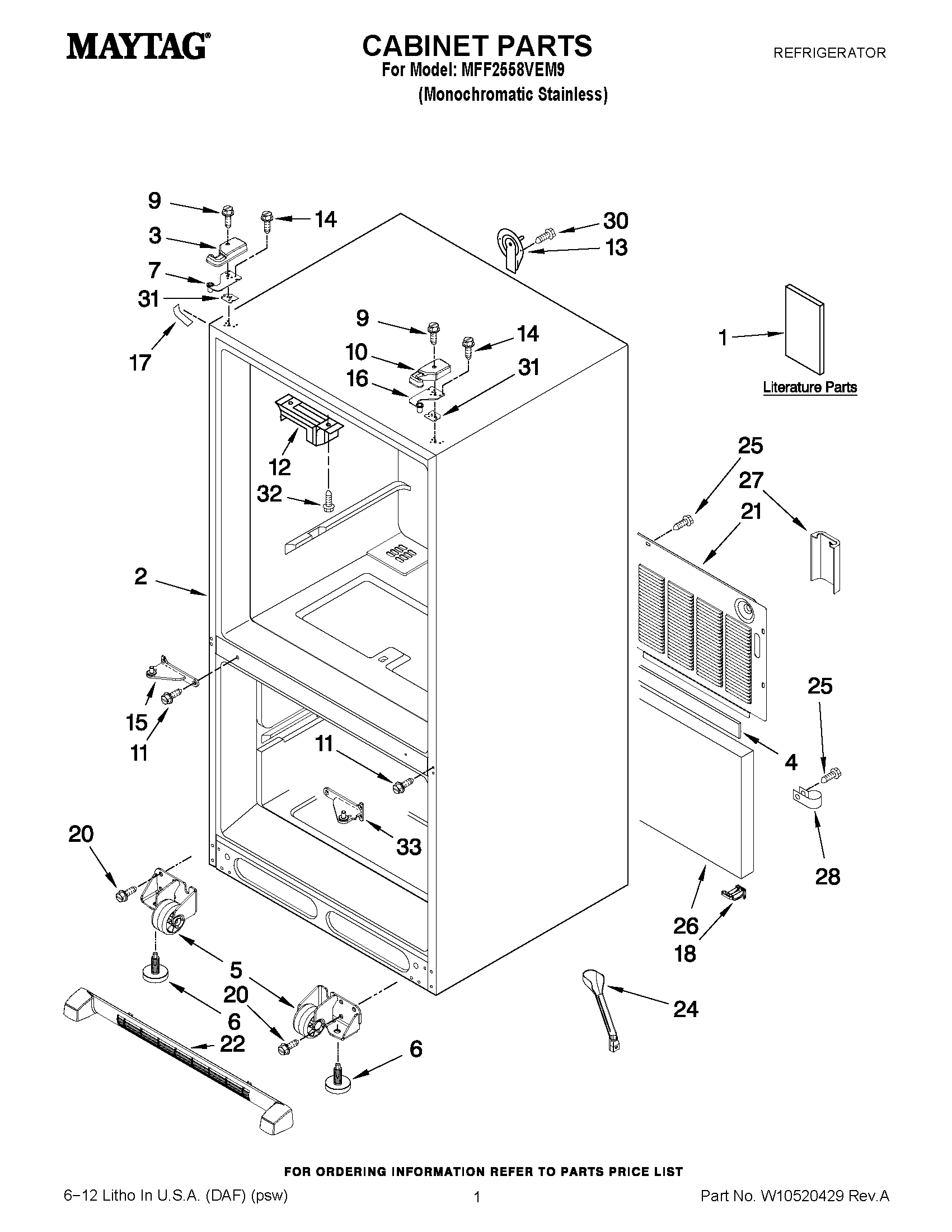

MFF2558VEM9 01 – CABINET PARTS

Products

PositionProduct
1MAY W10475389
1MAY W10366206
1MAY W10187813
2LINER (NOT A SERVICEABLE PART)
3MAY 12962301AP
4MAY B5759655
5ROLLER ASSY. (FRONT) (RIGHT)
5ROLLER ASSY. (FRONT) (LEFT)
6Brake, Foot
7MAY 12963204ED
9MAY 12992602
10MAY 12962302AP
11MAY 12990101
12Block, Pivot
13MAY 12726003
14SCREW (6)
15HINGE, CENTER (LT) (GREY)
16MAY 12963205ED
17COVER, CORNER (GREY)
18MAY W10216614
20Screw (8)
21MAY W10211854
22GRILLE, TOE (GREY)
24MAY W10210988
25SCREW (10)
26Insulation, Sound
27GUARD-WATER VALVE
28CLAMP, TUBE
30MAY 12990504
31MAY 12999502
31MAY 12999501
32SCREW (2)
33HINGE, CENTER (RT) (GREY)
