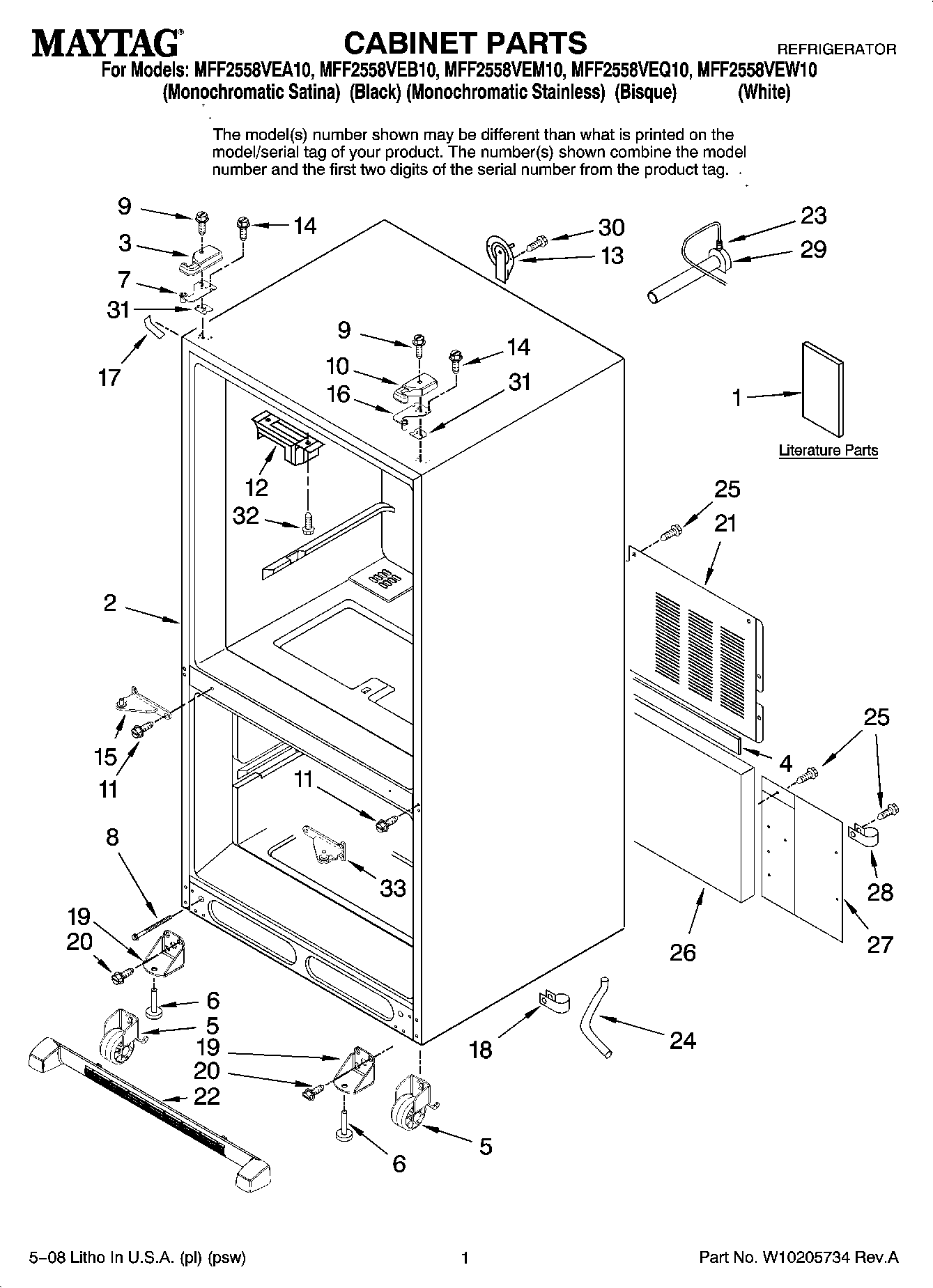

MFF2558VEW10 01 – CABINET PARTS

MFF2558VEW10 01 – CABINET PARTS

Written by

in

MFF2558VEW10 01 – CABINET PARTS

Products

PositionProduct
1Owners Manual
1MAY W10205969
1MAY W10187813
3Cover, Left Hinge (Bisque)
3W10337647 Whirlpool Refrigerator Cover
3Cover, Left Hinge (Apollo Grey)
3WPW10337634 Whirlpool Refrigerator Cover
4Gasket
5Roller Assy.(Rear)
6W11177593 Whirlpool Leveling Feet
7MAY W10199045
871003131 Whirlpool Oven Screw
9WP8281196 Whirlpool Screw
10Cover, Right Hinge (Bisque)
10Cover, Right Hinge (Apollo Grey)
10WP67005956 Whirlpool Refrigerator Cover
1067005958 Whirlpool Refrigerator Top Hinge Cover (RT-WHT)
11MAY 67005822
12WP67003405 Whirlpool Pivot Block
13COVER, WATER LINE
14WP489349 Whirlpool Refrigerator Screw
15MAY W10191142
1567006442 Whirlpool Refrigerator Center Hinge (LT-BLK)
15W10918113 Whirlpool Refrigerator Door Hinge
16W11592374 Whirlpool Refrigerator Top Door Hinge
17MAY 67003486
1767003485 Whirlpool Refrigerator Corner Cover (Black)
1767003484 Whirlpool Refrigerator White Corner Cover
17Cover, Corner (Apollo Grey)
18MAY W10157973
1912906303WD Whirlpool Refrigerator Bracket
20MAY 67006564
21BACK, MACH COMP
22WPW10534154 Whirlpool Refrigerator Front Grille
22MAY W10191107
22WPW10534153 Whirlpool Refrigerator Black Kickplate Grille
22Grille Assembly (Includes Clips) (Bisque)
23Clip
24MAY W10164397
25Screw (10)
2667003796 Whirlpool Refrigerator Fiber Acoustic
27MAY 12479803
28W10833902 Whirlpool Refrigerator Clamp
29MAY W10137519
30WP98165 Whirlpool Screw
3112999502 Whirlpool Refrigerator Hinge Shim
3112999501 Whirlpool Refrigerator Hinge Shim
32WP7101P126-60 Whirlpool Screw
33W10918168 Whirlpool Refrigerator Door Hinge
33MAY 67006379
33MAY W10191143
