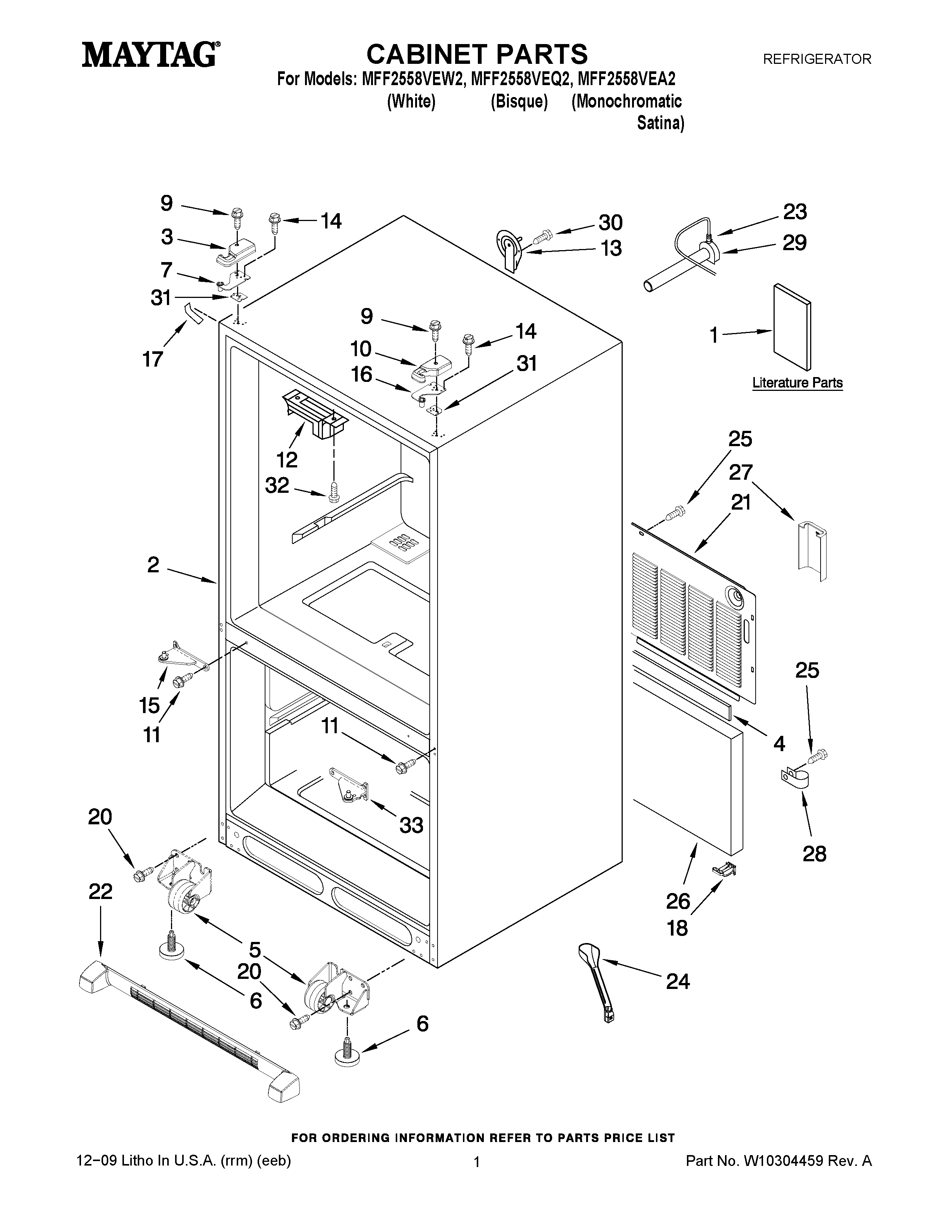

MFF2558VEW2 01 – CABINET PARTSadmin2025-04-26T09:11:49+00:00MFF2558VEW2 01 – CABINET PARTS
Products
| Position | Product |
|---|
| 1 | MAY W10279332 |
| 1 | Owners Manual |
| 1 | MAY W10187813 |
| 2 | LINER (NOT A SERVICEABLE PART) |
| 3 | COVER, LEFT HINGE (BISQUE) |
| 3 | MAY 12962301W |
| 3 | MAY 12962301AP |
| 4 | Gasket |
| 5 | ROLLER ASSY. (FRONT) (RIGHT) |
| 5 | ROLLER ASSY. (FRONT) (LEFT) |
| 6 | Foot Brake (2) |
| 7 | MAY 12963204ED |
| 9 | MAY 12992602 |
| 10 | COVER, RIGHT HINGE (BISQUE) |
| 10 | MAY 12962302W |
| 10 | MAY 12962302AP |
| 11 | MAY 12990101 |
| 12 | Block, Pivot |
| 13 | MAY 12726003 |
| 14 | SCREW (6) |
| 15 | HINGE, CENTER (LT) (GREY) |
| 15 | Hinge, Center (LT) (White) |
| 16 | MAY 12962305ED |
| 17 | Cover, Corner (Bisque) |
| 17 | COVER, CORNER (GREY) |
| 17 | Cover, Corner (2) (White) |
| 18 | MAY W10216614 |
| 20 | Screw (8) |
| 21 | MAY W10211854 |
| 22 | GRILLE, TOE (GREY) |
| 22 | MAY W10244559 |
| 22 | GRILLE ASSEMBLY (INCLUDES CLIPS) (BISQUE) |
| 23 | CLIP |
| 24 | MAY W10210988 |
| 25 | SCREW (10) |
| 26 | Insulation, Sound |
| 27 | GUARD-WATER VALVE |
| 28 | W10833902 Whirlpool Refrigerator Clamp |
| 29 | MAY 10463203SP |
| 30 | MAY 12990504 |
| 31 | MAY 12999501 |
| 31 | MAY 12999502 |
| 32 | SCREW (2) |
| 33 | Hinge, Center (RT) (White) |
| 33 | HINGE, CENTER (RT) (GREY) |
