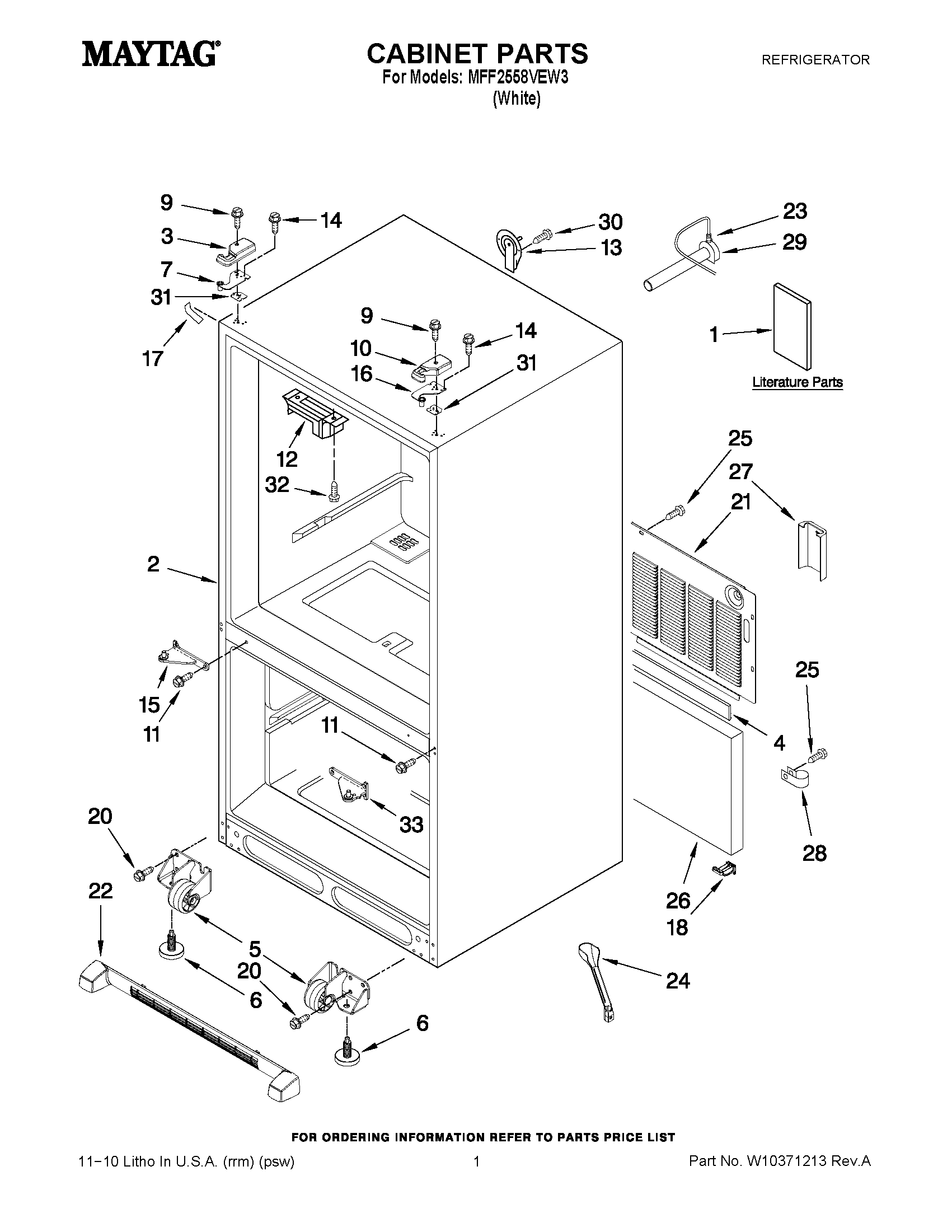

MFF2558VEW3 01 – CABINET PARTS

Products

Position	Product
1	TECH SHEET
1	MAY W10187813
1	OWNERS MANUAL
2	LINER (NOT A SERVICEABLE PART)
3	MAY 12962301W
4	MAY B57596555
5	ROLLER ASSY. (FRONT) (LEFT)
5	ROLLER ASSY. (FRONT) (RIGHT)
6	Brake, Foot
7	MAY 12963204ED
9	MAY 12992602
10	MAY 12962302W
11	MAY 12990101
12	Block, Pivot
13	MAY 12726003
14	SCREW (6)
15	Hinge, Center (LT) (White)
16	MAY 12963205ED
17	Cover, Corner (2) (White)
18	MAY W10216614
20	Screw (8)
21	MAY W10211854
22	MAY W10244559
23	CLIP
24	MAY W10210988
25	SCREW (10)
26	Insulation, Sound
27	GUARD-WATER VALVE
28	CLAMP, TUBE
29	MAY 10463203SP
30	MAY 12990504
31	MAY 12999501
31	MAY 12999502
32	SCREW (2)
33	Hinge, Center (RT) (White)
