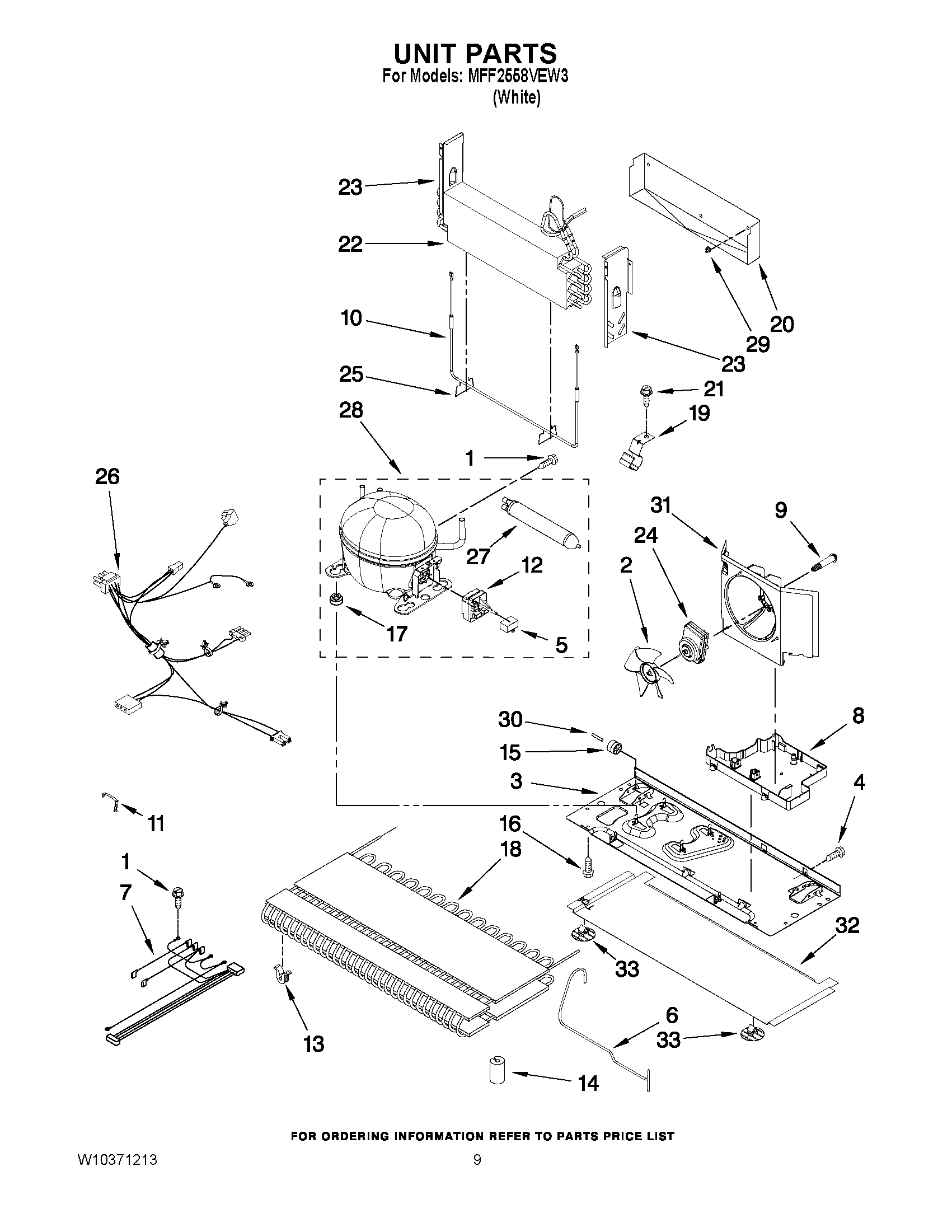

MFF2558VEW3 06 – UNIT PARTS

Products

Position	Product
NI	MAY 876764
NI	VALVE, ACCESS (3/8“)
NI	Valve, Access (5/16“)
NI	VALVE, ACCESS (1/4“)
NI	Valve, Access (5/8“)
NI	Valve, Access (3/4“)
NI	Valve, Access (1/2“)
NI	LINER (NOT A SERVICEABLE PART)
1	MAY 12992301
2	MAY 12825803
3	MAY W10210985
4	SCREW (10)
5	Capacitator (Production)
6	MAY W10233569
7	HARNESS, EVAPORATOR (INCLUDES HEATER)
8	MAY W10296785
9	MAY W10216919
10	EVAPORATOR HEATER
11	MAY W10174384
12	START PROTECT, COMBO (START DEVICE, COMBINATION (START RELAY AND OVERLOAD) FOR SERVICE COMPRESSOR ONLY)
13	GROMMET, COND (4)
14	GROMMET, CONDENSER
15	Roller (2)
16	MAY 12992101
17	Grommet (4)
18	MAY W10135026
19	MAY W10281329
20	MAY W10292803
21	MAY 12990701
22	MAY W10317014
23	DAM (LEFT SIDE)
23	Dam (Right Side)
24	MAY W10239053
25	W11673433 Whirlpool Clip
26	HARNESS, UNIT (INCLUDES POWER CORD)
27	Drier
28	MAY W10164016
29	MAY 10623002
30	Axle, Roller (2)
31	SHROUD
32	EXTENSION, BASEPAN
33	MAY W10206339
