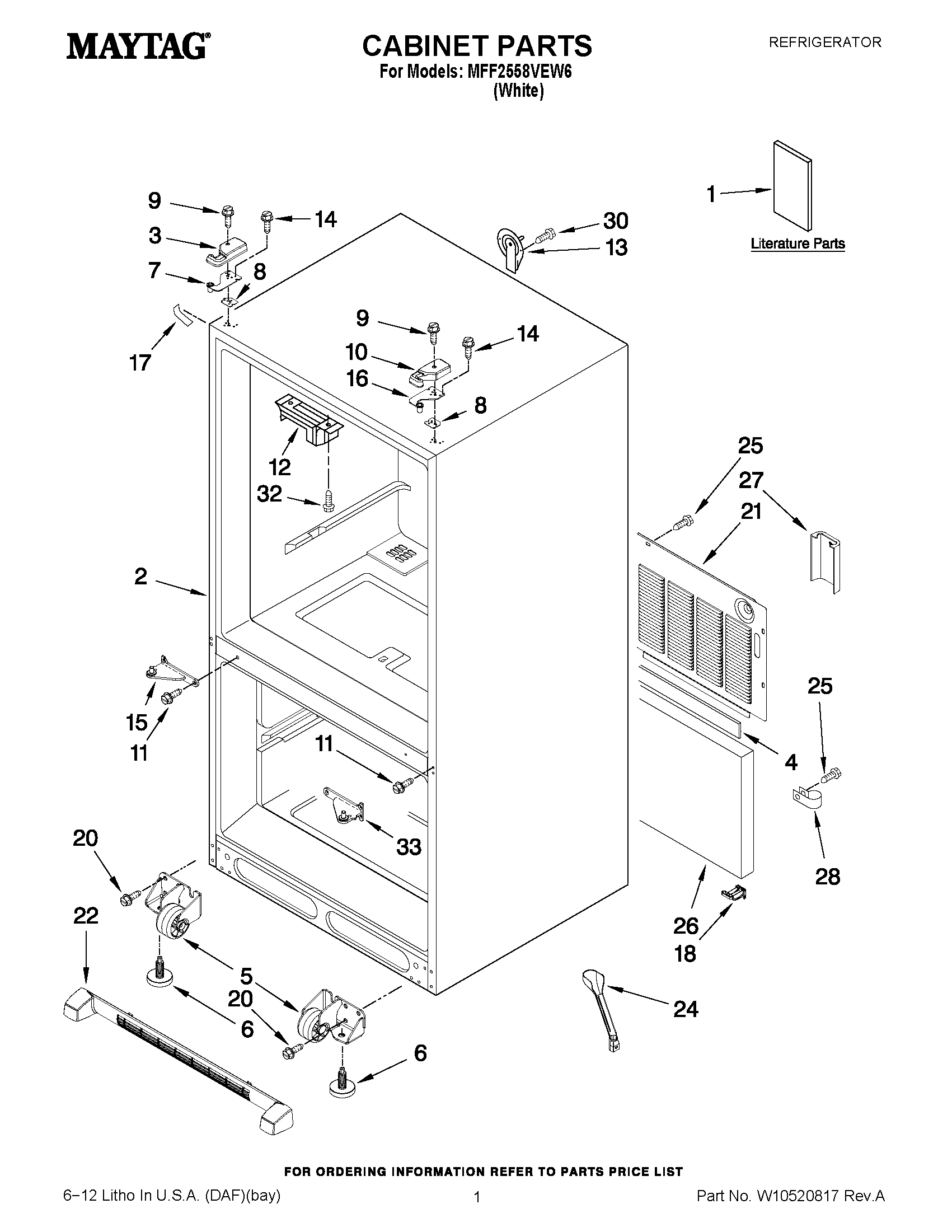

MFF2558VEW6 01 – CABINET PARTS

MFF2558VEW6 01 – CABINET PARTS

Written by

in

MFF2558VEW6 01 – CABINET PARTS

Products

Position	Product
1	MAY W10475389
1	MAY W10187813
1	MAY W10366206
2	LINER (NOT A SERVICEABLE PART)
3	MAY 12962301W
4	MAY B5759655
5	ROLLER ASSY. (FRONT) (RIGHT)
5	ROLLER ASSY. (FRONT) (LEFT)
6	Brake, Foot
7	MAY 12963204ED
8	MAY 12999502
8	MAY 12999501
9	MAY 12992602
10	COVER, RIGHT HINGE (WHITE)
11	MAY 12990101
12	Block, Pivot
13	MAY 12726003
14	SCREW (6)
15	Hinge, Center (LT) (White)
16	MAY 12963205ED
17	Cover, Corner (2) (White)
18	MAY W10216614
20	Screw (8)
21	MAY W10211854
22	MAY W10244559N
24	MAY W10210988
25	SCREW (10)
26	Insulation, Sound
27	GUARD-WATER VALVE
28	CLAMP, TUBE
30	MAY 12990504
32	SCREW (2)
33	Hinge, Center (RT) (White)
