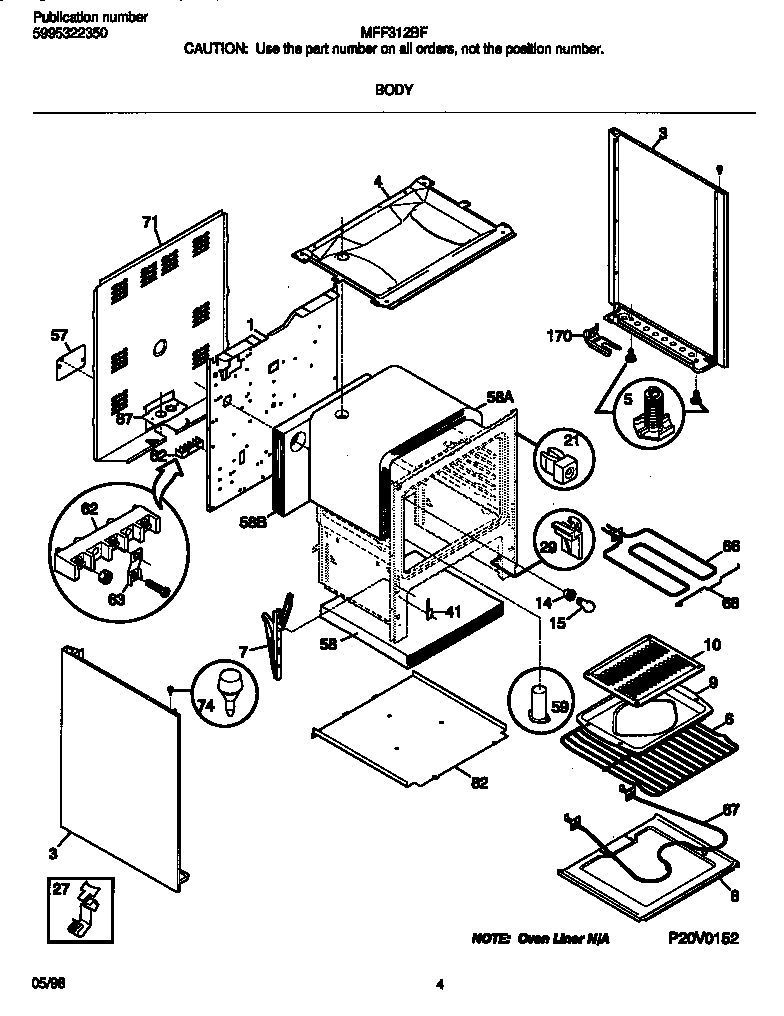

MFF312BFWC 03 – BODY

MFF312BFWC 03 – BODY

Written by

in

MFF312BFWC 03 – BODY

Products

PositionProduct
*62490WCI 316081029
*62487Screw,cup pt ,8-18 x 0.375 ,chrome
*624895308014215 Frigidaire Oven Screw
*624863203550 Frigidaire Oven Plug
*62488316205500 Frigidaire Oven Nut
*62492316116000 Frigidaire Screw
*62485WCI 3051367
*62491WCI 3934058
1WCI 316080804
3WCI 316081028
4WCI 5303271756
5NUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
5SCREW-LEVELING
6316067902 Frigidaire Oven Rack
7Hinge,oven door ,(2)
8PANEL-OVEN BOTTOM
9WCI 316073800
10WCI 3205234
14316116400 Frigidaire Oven Light Socket
15WCI 5300067016
21SPACER-BODYSIDE, (8)
275303284616 Frigidaire Range Bulb Clip Thermostat
293051162 Frigidaire Oven Range Front Broiler Drawer Glide
41WCI 3131570
57WCI 316081101
58316047707 Frigidaire Insulation
58316403803 Frigidaire Insulation
58316054202 Frigidaire Insulation
59WCI 316073601
625304409888 Frigidaire Oven Terminal Block with Hardware
665303051140 Frigidaire Broil Element
67316075103 Frigidaire Oven Bake Element
68316203400 Frigidaire Oven Support
71WCI 316015805
74BUMPER, COOKTOP (4)
82WCI 5303289913
87316081200 Frigidaire Oven Bracket
