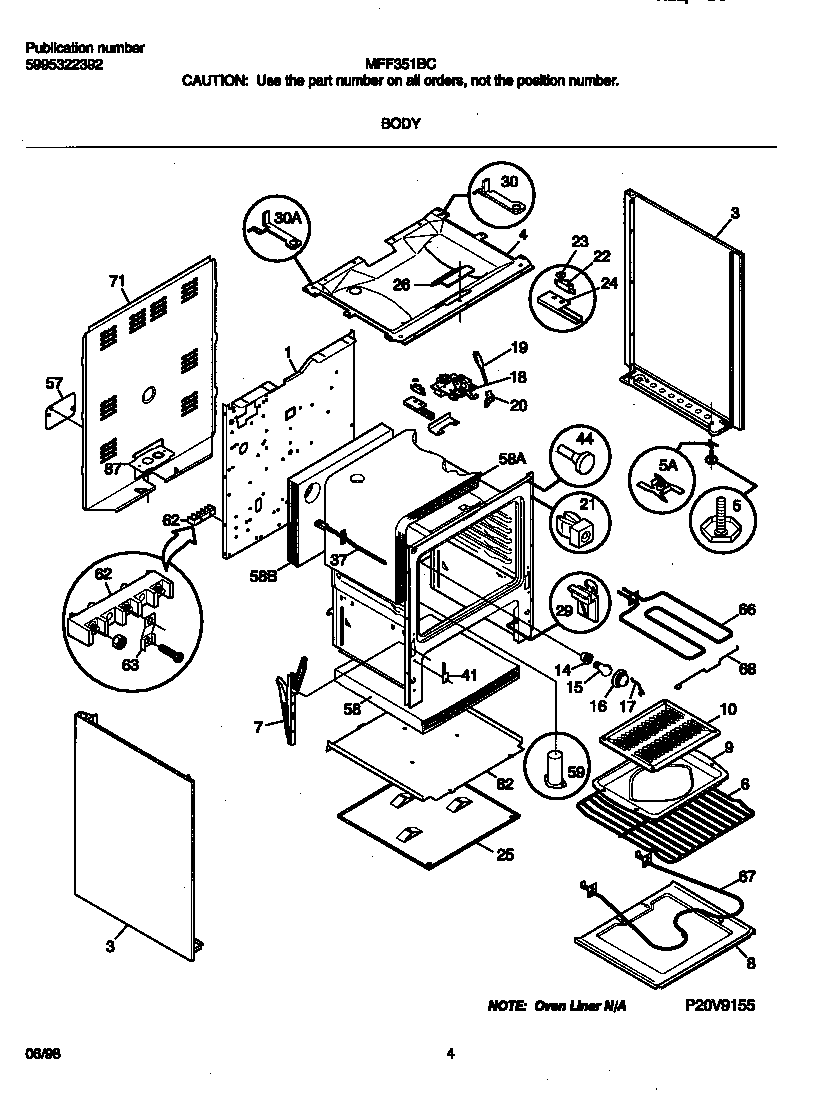

MFF351BCWD 03 – BODY

MFF351BCWD 03 – BODY

Written by

in

MFF351BCWD 03 – BODY

Products

PositionProduct
*63097SHIELD-LATCH (NON-ILLUSTRATED)
*63093WCI 316001364
*630873203550 Frigidaire Oven Plug
*630925308014215 Frigidaire Oven Screw
*63088WCI 08067757
*63089Screw,cup pt ,8-18 x 0.375 ,chrome
*63090316205500 Frigidaire Oven Nut
*63098WCI 08013188
*63099STUD SPACER (2) (NON-ILLUSTRATED)
*63091WCI 5303281584
1WCI 316080804
3BWCI 316081035
3AWCI 316081034
4WCI 5303271658
5WCI 316107300
6316067902 Frigidaire Oven Rack
7WCI 316007002
8PANEL-OVEN BOTTOM
9WCI 316073800
10WCI 3205234
14316116400 Frigidaire Oven Light Socket
15WCI 5300067016
165304524341 Frigidaire Lens
17316087500 Frigidaire Oven Retainer
18WCI 5303015361
19WCI 5303131357
20WCI 3203218
21SPACER-BODYSIDE, (8)
22SWITCH-LATCH
23FSTNR-PUSH ON
24SHIELD-LATCH
25WCI 3200848
293051162 Frigidaire Oven Range Front Broiler Drawer Glide
30BRACKET-HINGE, MAIN TOP RH
30BRACKET-HINGE, MAIN TOP, LH
375304497424 Frigidaire Oven Temperature Sensor Probe Kit
41WCI 3131570
443131903 Frigidaire Door/Drawer Bumper
57WCI 316081101
58BINSULATION, OVEN WRAPPER
58B316054202 Frigidaire Insulation
58A316047707 Frigidaire Insulation
58AWCI 316054200
58316403803 Frigidaire Insulation
59WCI 316073600
625304409888 Frigidaire Oven Terminal Block with Hardware
63PLATE=GROUND STRAP
665303051140 Frigidaire Broil Element
67316075103 Frigidaire Oven Bake Element
68316203400 Frigidaire Oven Support
71WCI 316015805
82WCI 5303289913
87316081200 Frigidaire Oven Bracket
170A316112005 Frigidaire Oven Anti-Tip Range Bracket Kit
170B316116000 Frigidaire Screw
