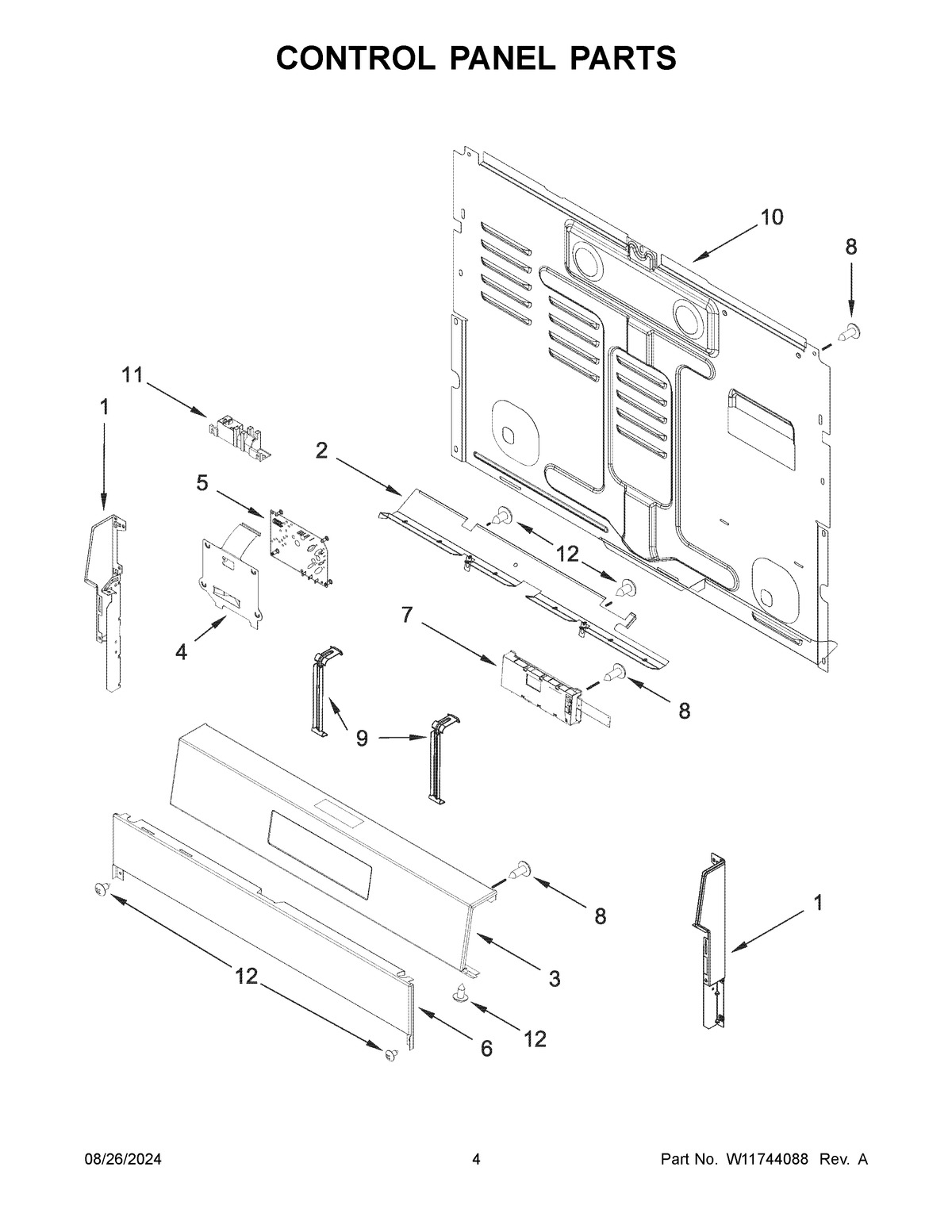

MFGS4030RB0 03 – CONTROL PANEL PARTSadmin2025-04-26T12:45:02+00:00MFGS4030RB0 03 – CONTROL PANEL PARTS
Products
| Position | Product |
|---|
| 1 | ENDPOST, CONSOLE (BLACK (LEFT)) |
| 1B | ENDPOST, CONSOLE (WHITE (LEFT)) |
| 1C | ENDPOST, CONSOLE (WHITE (RIGHT)) |
| 1A | ENDPOST, CONSOLE (BLACK (RIGHT)) |
| 2 | SHIELD, HEAT |
| 3 | PANEL, CONTROL (BLACK) |
| 3A | PANEL, CONTROL (WHITE) |
| 4 | BRACKET, MOUNTING |
| 5 | W10898291 Whirlpool Spark Module |
| 6A | Panel, Lower (White) |
| 6 | PANEL, LOWER (BLACK) |
| 7 | W11729237-includeCORE Whirlpool Electronic Control+Core |
| 8 | SCREW |
| 9 | BRACKET, CONTROL |
| 10 | COVER, BACK |
| 11 | W11703692 Whirlpool Speaker Module |
| 12 | WP3196557 Whirlpool Screw |
