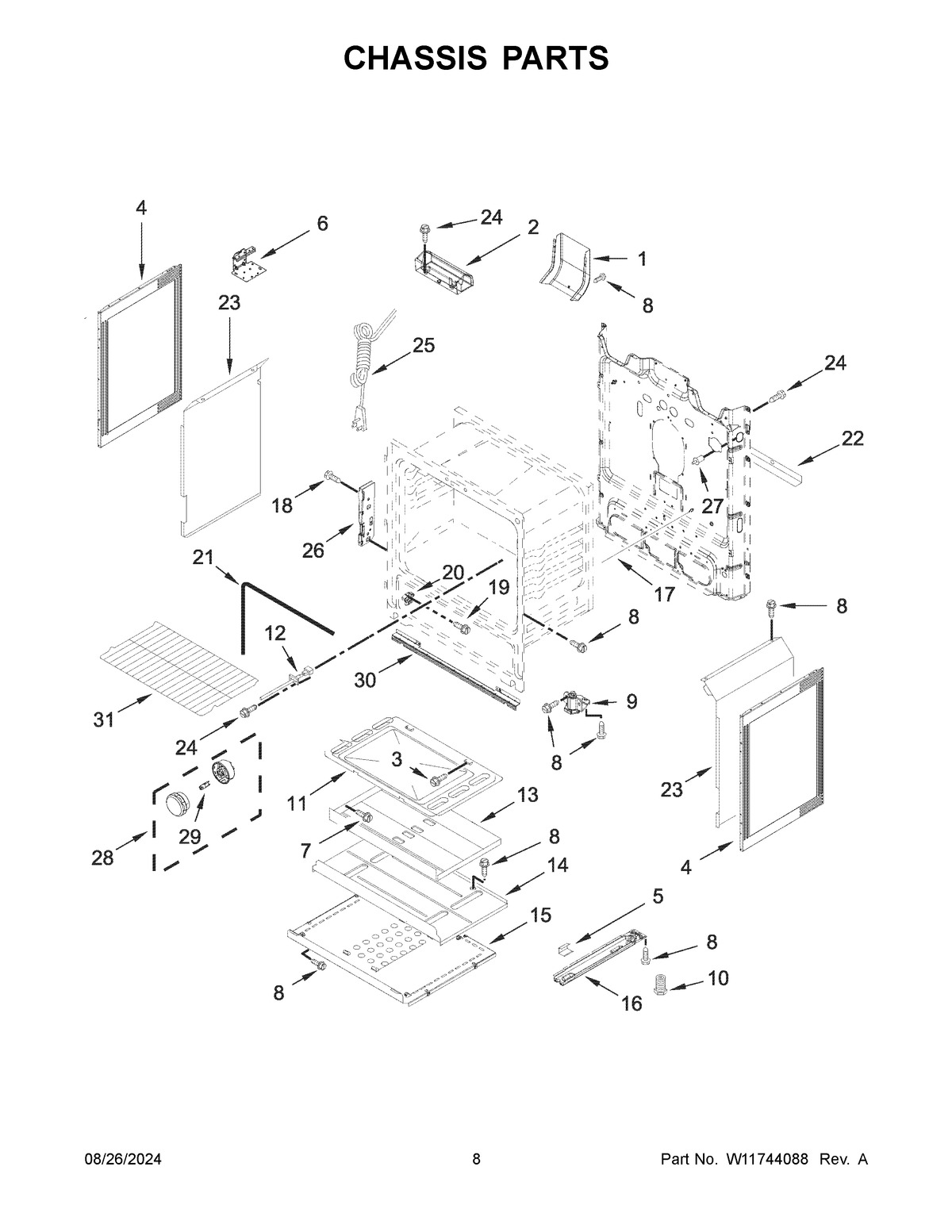

MFGS4030RB0 05 – CHASSIS PARTS

Products

Position	Product
NI	INSULATION, BACK
NI	FOLLOWING PARTS NOT ILLUSTRATED
NI	INSULATION, WRAP
1	BOX, FLUE
2	SHIELD, FLUE
3	W10379120 Whirlpool Screw
4A	PANEL-SIDE
4	W11730303 Whirlpool Side Panel
5	W10137382 Whirlpool Clip
6	BRACKET, COOKTOP CONSOLE
8	SCREW
9	WPW10341186 Whirlpool Refrigerator Front Levelling Leg
10	WPW10058460 Whirlpool Appliance Levelling Leg
11	BOTTOM, OVEN
12	SENSOR-RANGE
13	8053967 Whirlpool Oven Heat Baffle
14	8053969 Whirlpool Heat Shield
15	SHIELD, LOWER
16A	WPW10306546 Whirlpool Base Rail
17	9757239 Whirlpool Oven Door Rod
18	W10777162 Whirlpool Screw
19	Screw
20	W10807823 Whirlpool Drawer Glide
21	W11542153 Whirlpool Door Gasket
22	W10435470 Whirlpool Brace
23A	W11379943 Whirlpool Retainer
23	W11379353 Whirlpool Retainer
24	WP3196557 Whirlpool Screw
25	CORD, POWER
26	W10647259 Whirlpool Hinge Receiver
27	SWTCH-LITE
28	W11707255 Whirlpool Light
29	BULB-LIGHT
30	W11464547 Whirlpool Support Bracket
31	RACK-OVEN
