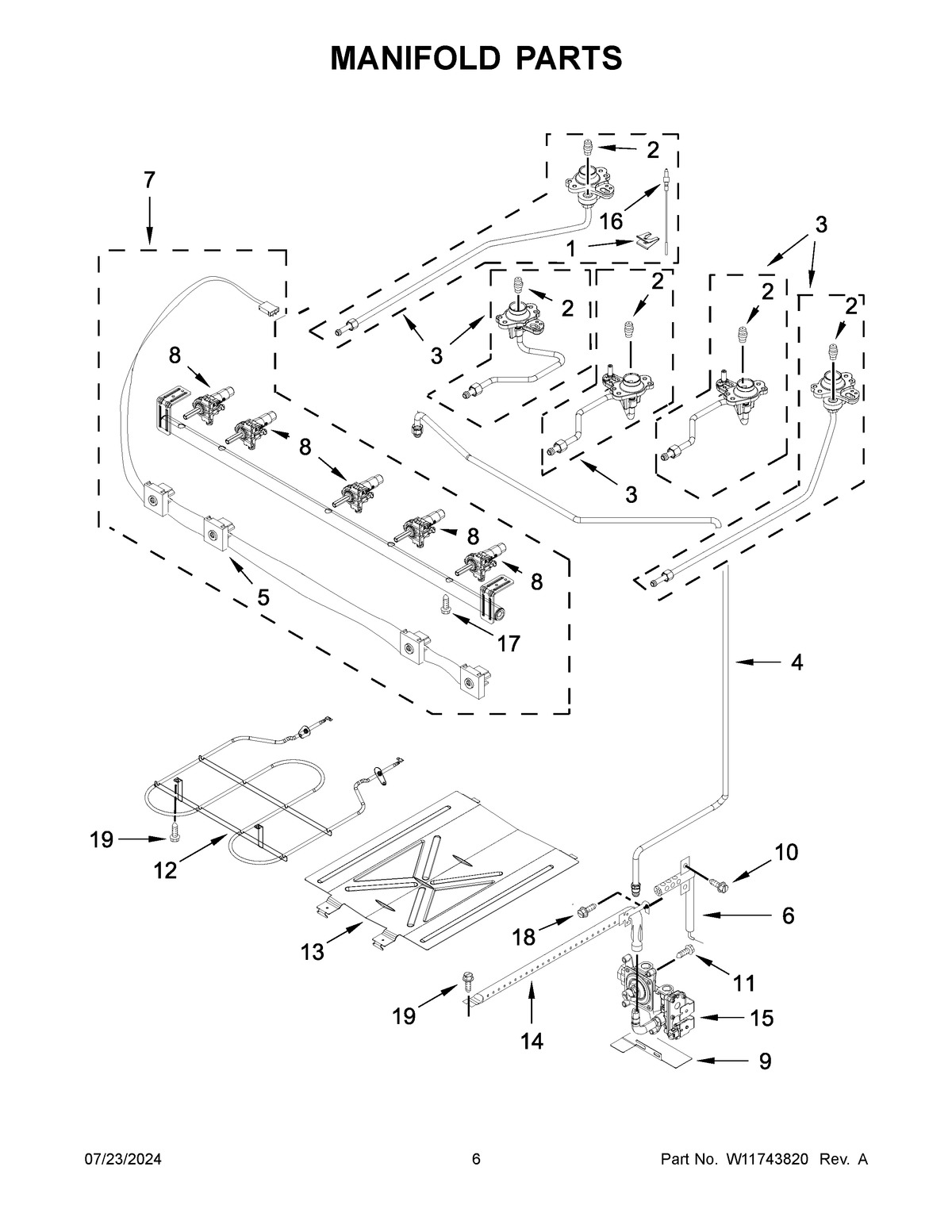

MFGS4030RS0 04 – MANIFOLD PARTS

Products

Position	Product
NI	CNVRSN-KIT
NI	FOLLOWING PARTS NOT ILLUSTRATED
NI	ORIFICE
1	W11684564 Whirlpool Clip Assembly
2	ORIFICE (12K) (LEFT FRONT AND LEFT REAR)
2C	W10907868 Whirlpool Spud Orifice
2A	ORIFICE (18K) (LEFT FRONT, RIGHT FRONT AND CENTER)
2B	W11677633 Whirlpool Spud Orifice
3	ORIFICE HOLDER ASSEMBLY (12K) (LEFT FRONT)
3B	ORIFICE HOLDER ASSEMBLY (5K) (RIGHT REAR) (INCLUDES ORIFICE)
3A	ORIFICE HOLDER ASSEMBLY (12K) (LEFT REAR)
3C	HOLDER-ORF
4	TUBING (MANIFOLD TO REGULATOR)
5	W11727166 Whirlpool Wire Harness
6	W11524031 Whirlpool Oven Igniter
7	MANIFOLD ASSEMBLY
8B	VALVE, SINGLE (RIGHT REAR)
8	VALVE, GAS (LEFT FRONT AND LEFT REAR)
8A	VALVE, SINGLE (RIGHT FRONT AND CENTER)
9	W10224921 Whirlpool Bracket Mounting
10	W11684507 Whirlpool Screw
11	WP3400016 Whirlpool Screw Assembly
12	W10714060 Whirlpool Broiler Burner
13	WPW10184491 Whirlpool Burner Baffle
14	WP9758078 Whirlpool Oven Burner
15	W10898290 Whirlpool Gas Valve
16A	W11453920 Whirlpool Surface Igniter
16	W11453940 Whirlpool Surface Igniter
17	SCREW
18	3196265 Whirlpool Oven Screw
19	SCREW
