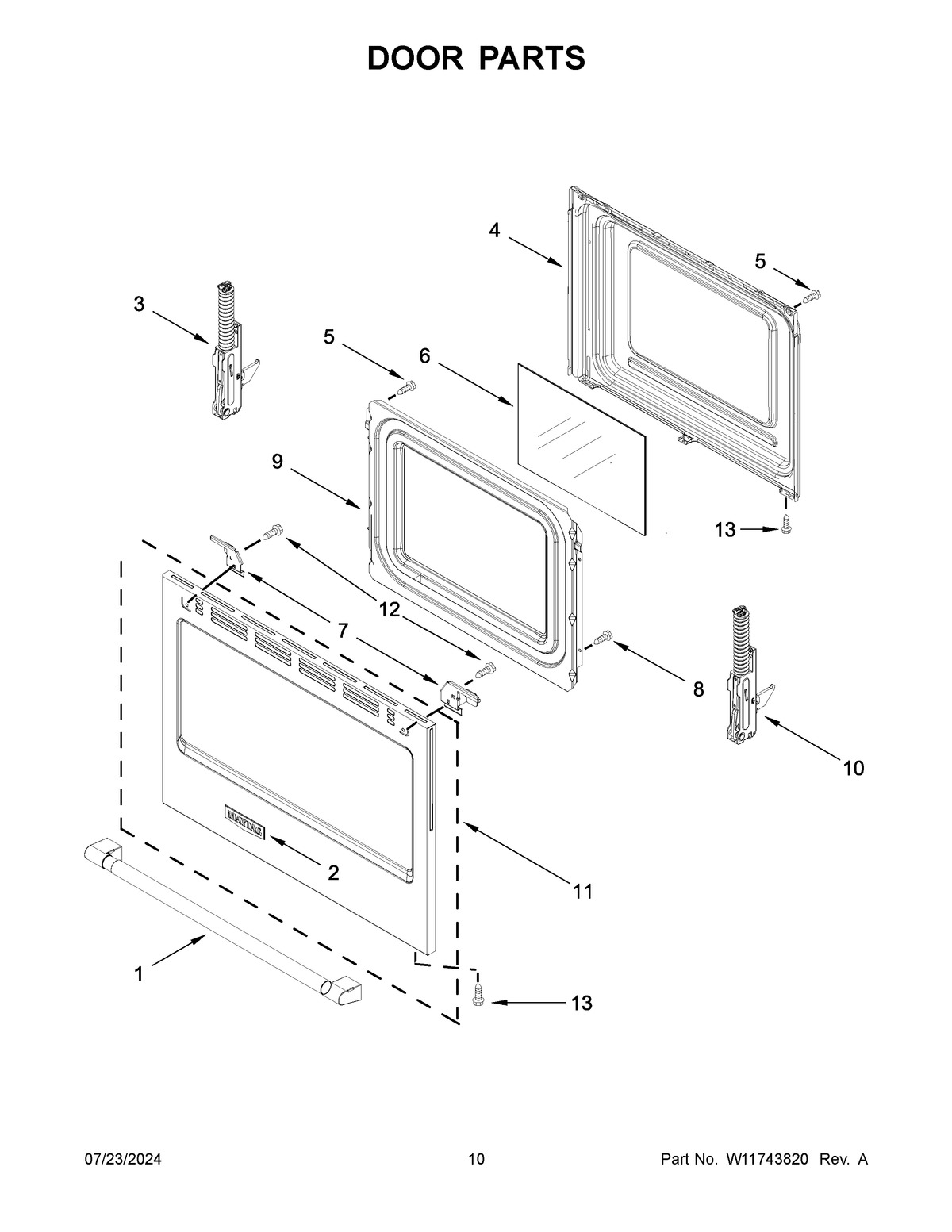

MFGS4030RS0 06 – DOOR PARTS

MFGS4030RS0 06 – DOOR PARTS

Written by

in

MFGS4030RS0 06 – DOOR PARTS

Products

PositionProduct
1HNDLE-DOOR
2W11648754 Whirlpool Nameplate
3WPW10299226 Whirlpool Door Hinge
4WP9761344 Whirlpool Door Liner
5WPW10031790 Whirlpool Screw
6W11399628 Whirlpool Door Glass
7ABRACKET, HANDLE MOUNT (LEFT)
7BRACKET, HANDLE MOUNT (RIGHT)
8W10777162 Whirlpool Screw
9W11685635 Whirlpool Retainer
10WPW10299227 Whirlpool Range Door Hinge
11GLASS ASSEMBLY, OUTER DOOR (STAINLESS (INCLUDES BADGE))
12WP3196154 Whirlpool Screw Assembly
13WP355214 Whirlpool Screw
