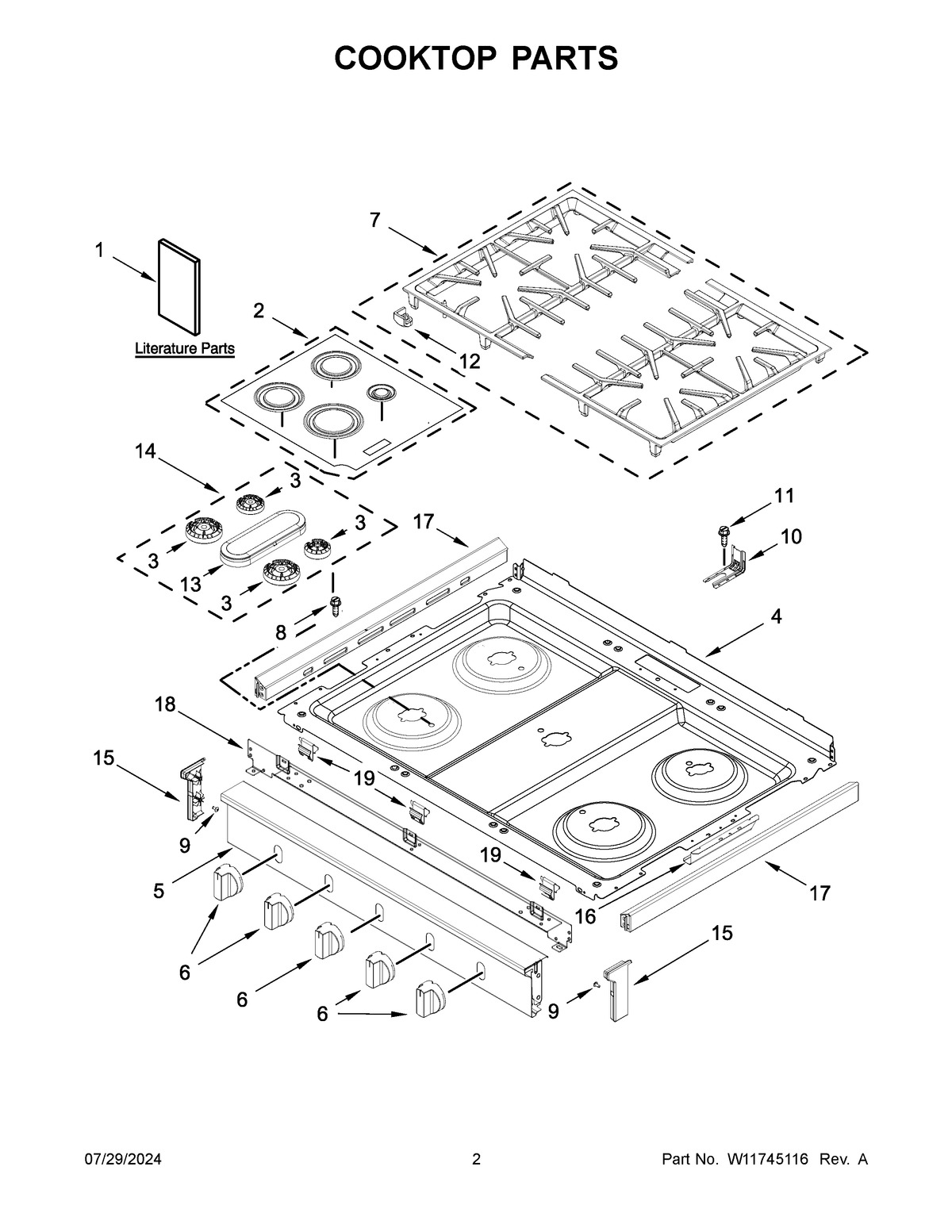

MFGS6030RB0 02 – COOKTOP PARTS

Products

Position	Product
NI	FOLLOWING PARTS NOT ILLUSTRATED
NI	HARNESS, MAIN
NI	W11707251 Whirlpool Wire Harness
NI	3196896 Whirlpool Clip
NI	W11244557 Whirlpool Screw
NI	16515 Whirlpool Clip
NI	3400964 Whirlpool Oven Clip
1A	OWNERS MANUAL
1	QUICK START GUIDE
1B	TECH SHEET
2	CAP-BURNER
3A	W11435657 Whirlpool Burner Head
3	SPREADER, FLAME (LEFT FRONT AND RIGHT REAR)
3B	W11435630 Whirlpool Oven Burner Head
4	COOKTOP (BLACK)
5	PANEL, MANIFOLD (BLACK)
5A	PANEL, MANIFOLD (WHITE)
6	KNOB
7	GRATE KIT (BLACK (SET OF 2))
8	W11241230 Whirlpool Screw
9	W11245710 Whirlpool Refrigerator Screw
10	W11447673 Whirlpool Range Tip Anchor
11	SCREW, ANTI-TIP KIT
12	GRATE, BUMPER
13	W11475513 Whirlpool Top Burner Assembly
14	BURNER KIT
15C	PANEL, MANIFOLD END CAP (WHITE (RIGHT))
15B	PANEL, MANIFOLD END CAP (WHITE (LEFT))
15A	PANEL, MANIFOLD END CAP (BLACK (RIGHT))
15	PANEL, MANIFOLD END CAP (BLACK (LEFT))
16	BRACKET, SPARK MODULE
17	COOKTOP FRAME (BLACK)
18	BRKT-SUPRT
19	SPRING, CLIP
