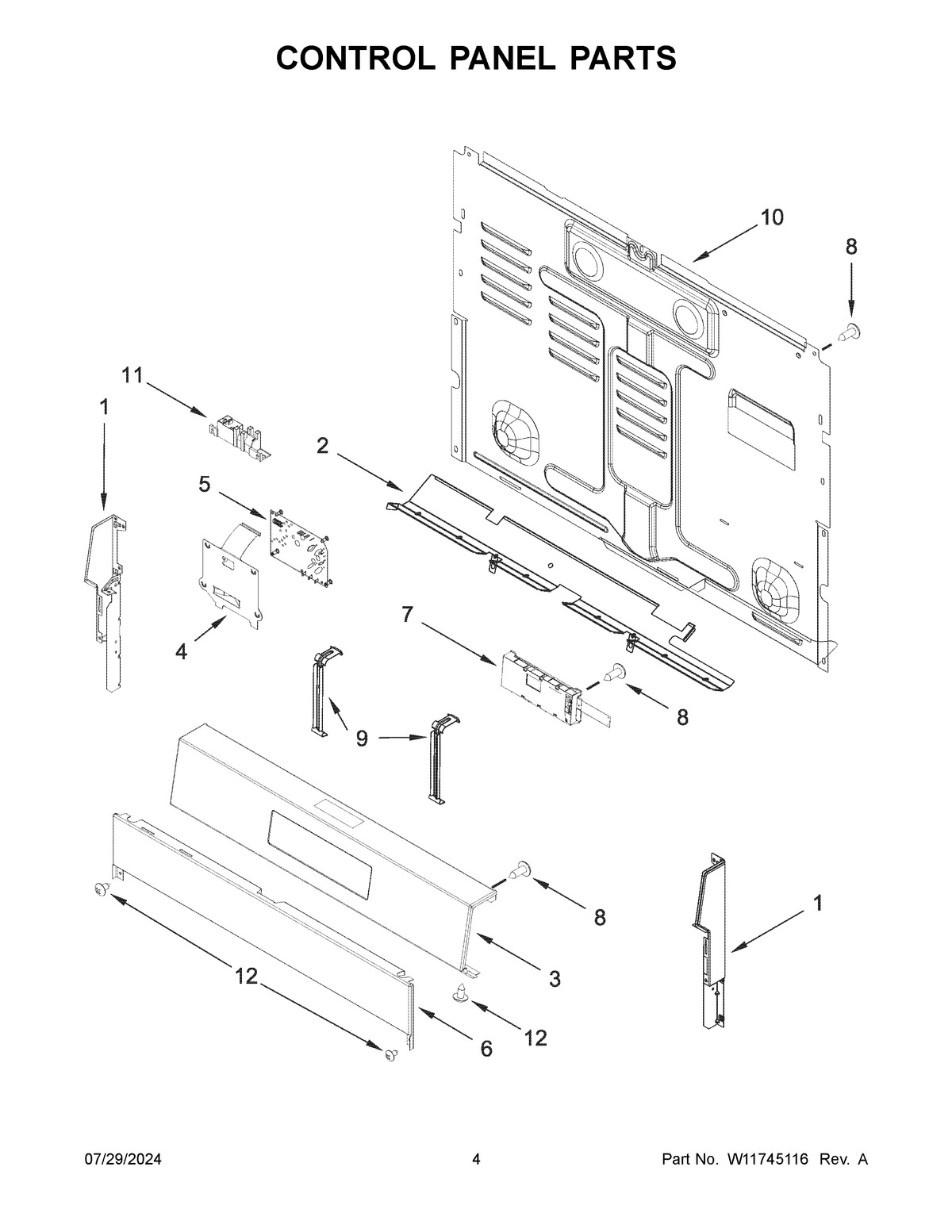

MFGS6030RB0 03 – CONTROL PANEL PARTS

Products

Position	Product
1A	ENDPOST, CONSOLE (BLACK (RIGHT))
1B	ENDPOST, CONSOLE (WHITE (LEFT))
1C	ENDPOST, CONSOLE (WHITE (RIGHT))
1	ENDPOST, CONSOLE (BLACK (LEFT))
2	SHIELD, HEAT
3A	PANEL, CONTROL (WHITE)
3	PANEL, CONTROL (BLACK)
4	BRACKET, MOUNTING (DSI)
5	W10898291 Whirlpool Spark Module
6	PANEL, LOWER (BLACK)
6A	Panel, Lower (White)
7	W11730046-includeCORE Whirlpool Electronic Control+Core
8	SCREW
9	BRACKET, CONTROL
10	COVER, BACK
11	W11703692 Whirlpool Speaker Module
12	WP3196557 Whirlpool Screw
