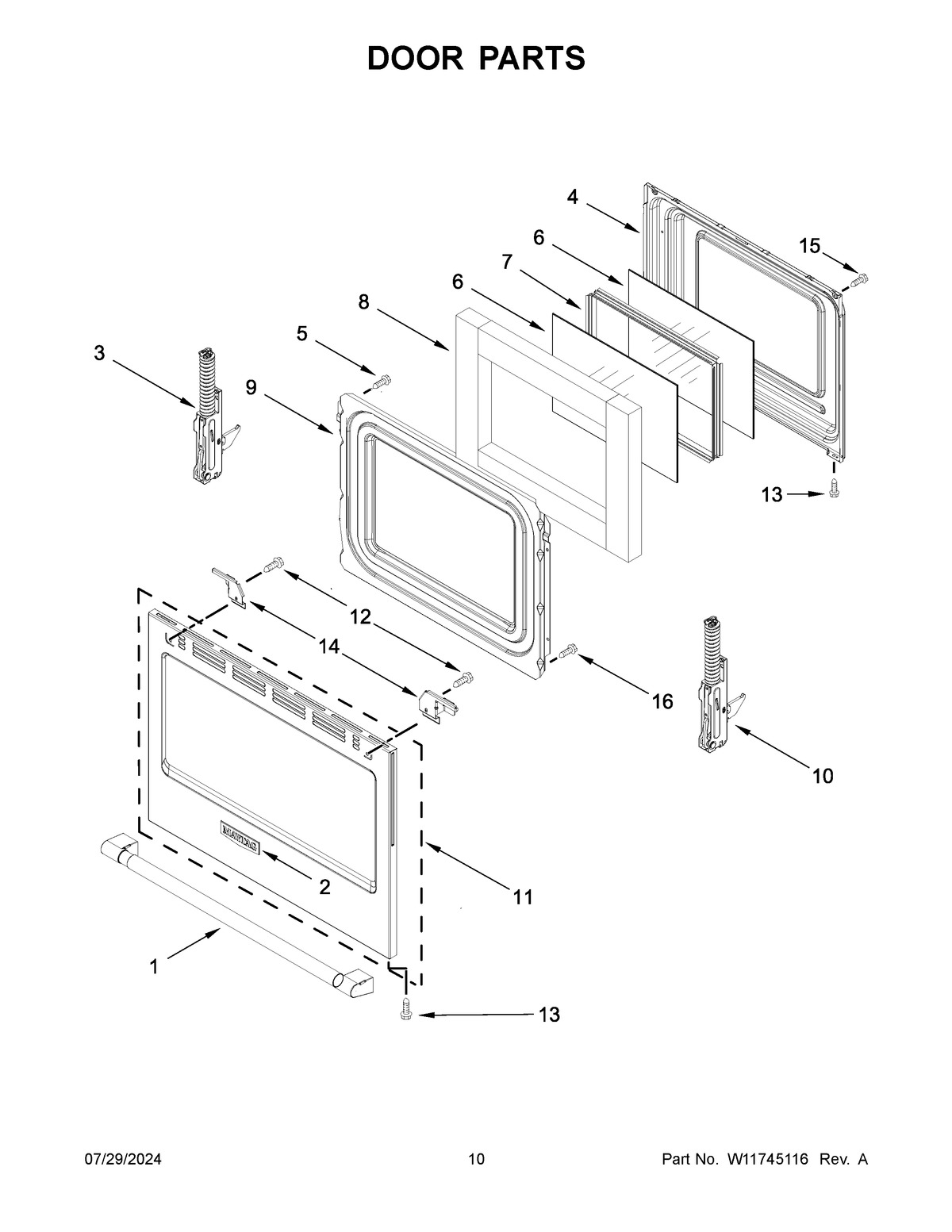

MFGS6030RB0 06 – DOOR PARTS

Products

Position	Product
1	HNDLE-DOOR
2	W11648754 Whirlpool Nameplate
3	WPW10388635 Whirlpool Door Hinge
4	WP9761344 Whirlpool Door Liner
5	WPW10031790 Whirlpool Screw
6	WP8053948 Whirlpool Door Glass
7	WPW10316950 Whirlpool Window Frame
8	WPW10278991 Whirlpool Insulation
9	W11539580 Whirlpool Retainer
10	WPW10440013 Whirlpool Door Hinge
11A	GLASS-DOOR
11	OUTER DOOR SKIN AND GLASS ASSEMBLY (BLACK (INCLUDES BADGE))
12	WP3196154 Whirlpool Screw Assembly
13	WP355214 Whirlpool Screw
14A	BRACKET, HANDLE MOUNT (LEFT)
14	BRACKET, HANDLE MOUNT (RIGHT)
15	WPW10200660 Whirlpool Range Oven Door Handle Screw
16	W10777162 Whirlpool Screw
