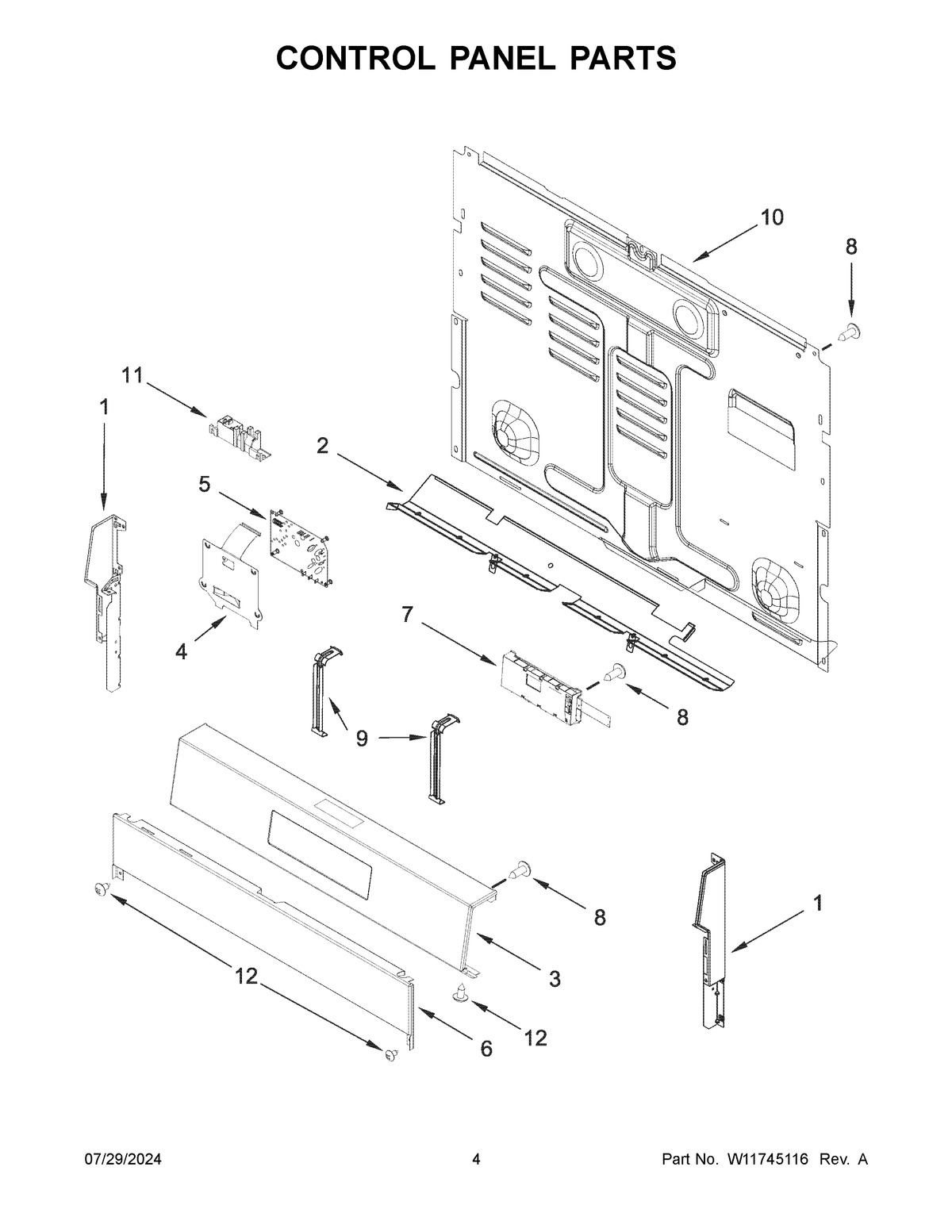

MFGS6030RW0 03 – CONTROL PANEL PARTS

Products

PositionProduct
1AENDPOST, CONSOLE (BLACK (RIGHT))
1BENDPOST, CONSOLE (WHITE (LEFT))
1CENDPOST, CONSOLE (WHITE (RIGHT))
1ENDPOST, CONSOLE (BLACK (LEFT))
2SHIELD, HEAT
3APANEL, CONTROL (WHITE)
3PANEL, CONTROL (BLACK)
4BRACKET, MOUNTING (DSI)
5W10898291 Whirlpool Spark Module
6PANEL, LOWER (BLACK)
6APanel, Lower (White)
7W11730046-includeCORE Whirlpool Electronic Control+Core
8SCREW
9BRACKET, CONTROL
10COVER, BACK
11W11703692 Whirlpool Speaker Module
12WP3196557 Whirlpool Screw
