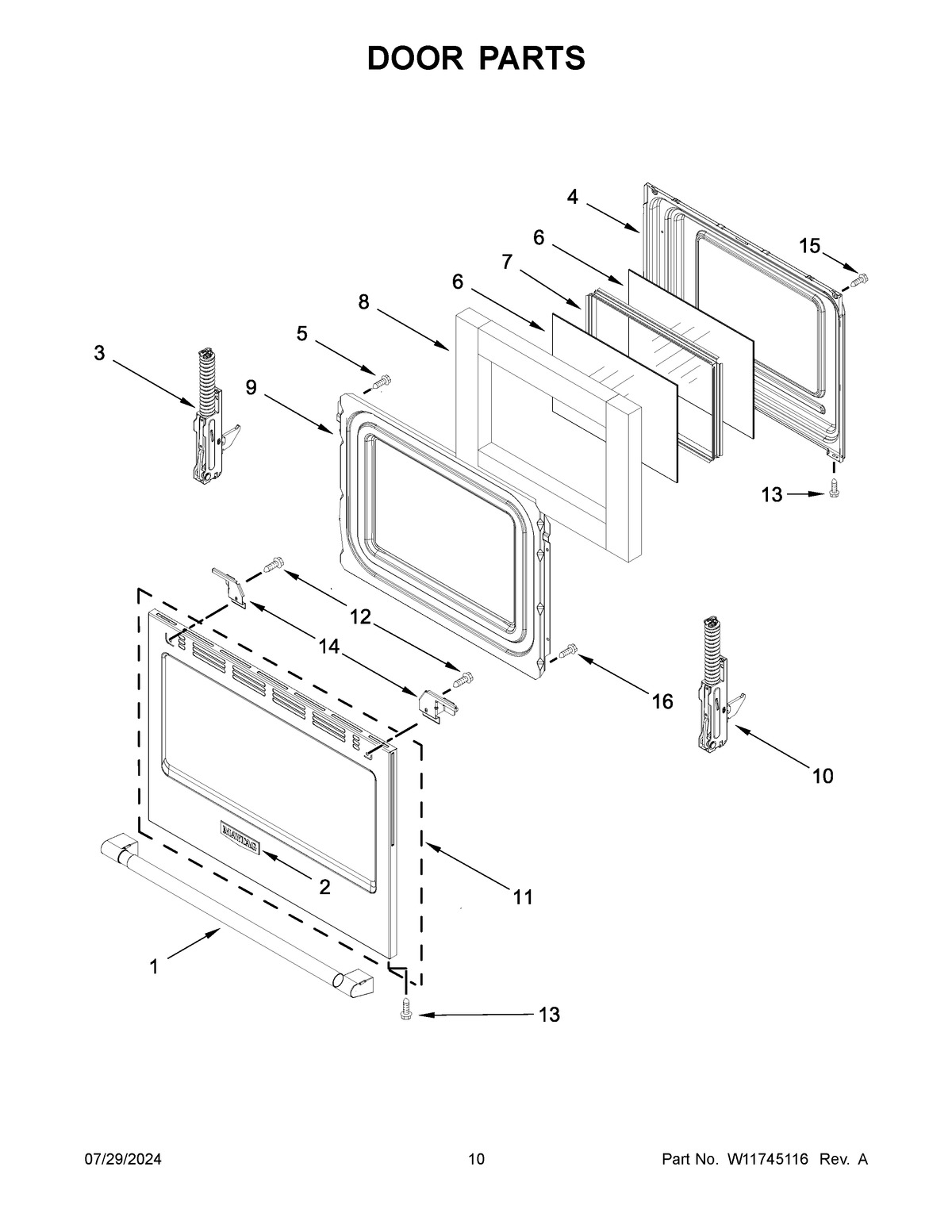

MFGS6030RW0 06 – DOOR PARTS

MFGS6030RW0 06 – DOOR PARTS

Written by

in

MFGS6030RW0 06 – DOOR PARTS

Products

PositionProduct
1HNDLE-DOOR
2W11648754 Whirlpool Nameplate
3WPW10388635 Whirlpool Door Hinge
4WP9761344 Whirlpool Door Liner
5WPW10031790 Whirlpool Screw
6WP8053948 Whirlpool Door Glass
7WPW10316950 Whirlpool Window Frame
8WPW10278991 Whirlpool Insulation
9W11539580 Whirlpool Retainer
10WPW10440013 Whirlpool Door Hinge
11AGLASS-DOOR
11OUTER DOOR SKIN AND GLASS ASSEMBLY (BLACK (INCLUDES BADGE))
12WP3196154 Whirlpool Screw Assembly
13WP355214 Whirlpool Screw
14ABRACKET, HANDLE MOUNT (LEFT)
14BRACKET, HANDLE MOUNT (RIGHT)
15WPW10200660 Whirlpool Range Oven Door Handle Screw
16W10777162 Whirlpool Screw
