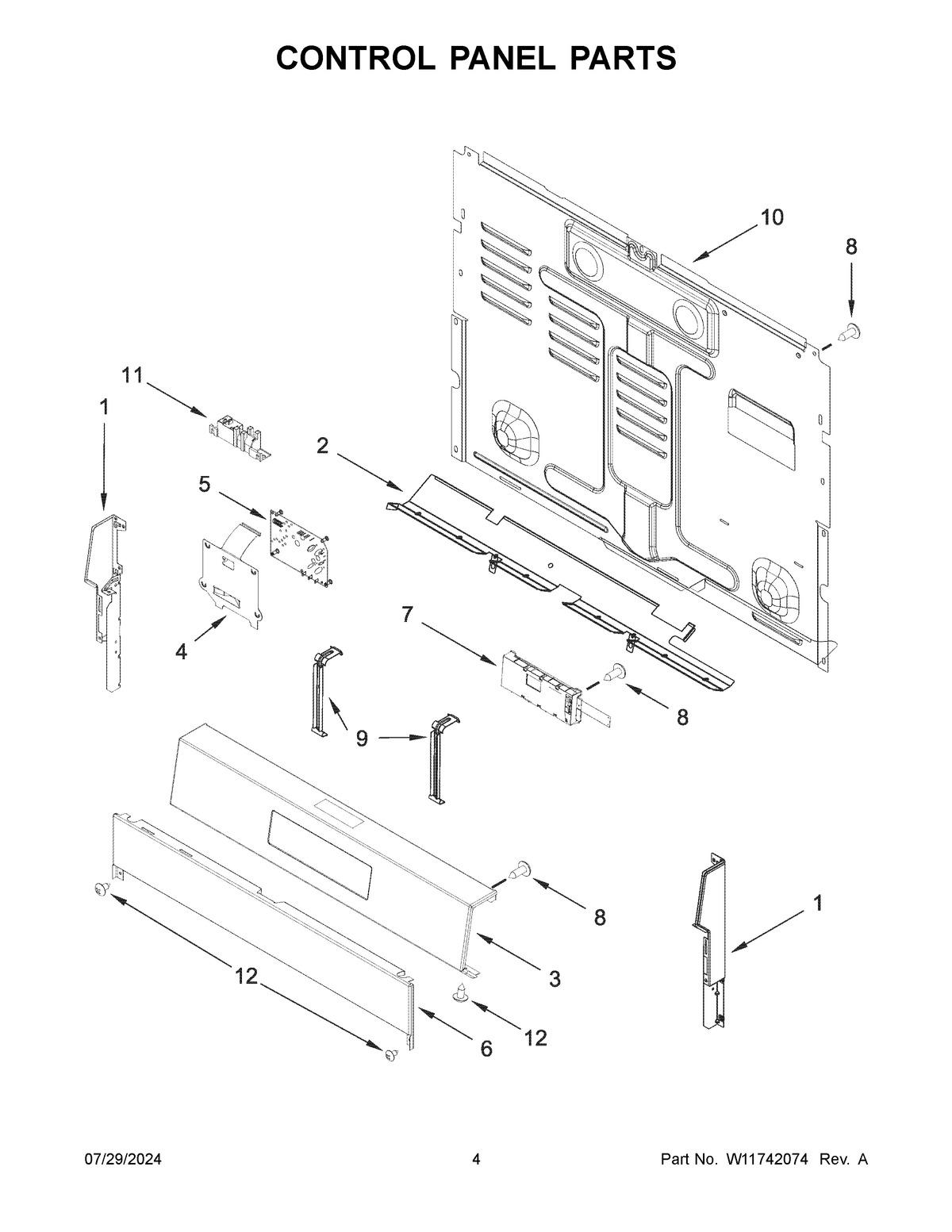

MFGS6030RZ0 03 – CONTROL PANEL PARTS

MFGS6030RZ0 03 – CONTROL PANEL PARTS

Written by

in

MFGS6030RZ0 03 – CONTROL PANEL PARTS

Products

PositionProduct
1AENDCAP (STAINLESS (RIGHT))
1ENDCAP (STAINLESS (LEFT))
2SHIELD, HEAT
3PANEL, CONTROL (STAINLESS)
4BRACKET, MOUNTING (DSI)
5W10898291 Whirlpool Spark Module
6TRIM-PANEL
7W11730046-includeCORE Whirlpool Electronic Control+Core
8SCREW
9BRACKET, CONTROL
10COVER, BACK
11W11703692 Whirlpool Speaker Module
12WP3196557 Whirlpool Screw
