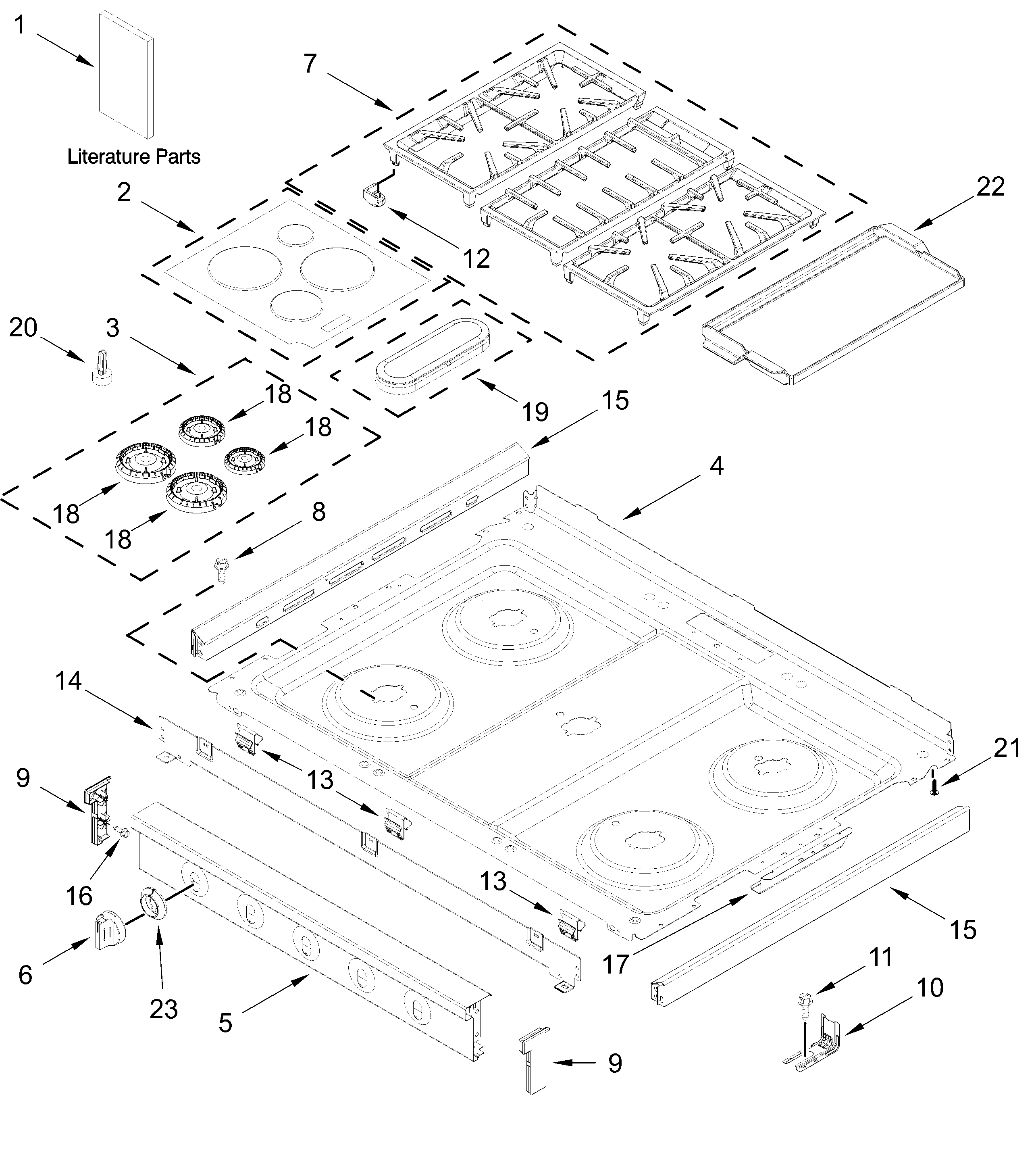

MFGS8030RZ0 COOKTOP PARTS

Products

Position	Product
	FOLLOWING PARTS NOT ILLUSTRATED
	HARNESS, COOKTOP
	(Right Front)
	OWNER'S MANUAL
	HARNESS, MAIN
	(Left Rear)
	(Center)
	QUICK START GUIDE
	Tech Sheet
	Panel, Manifold End Cap (Stainless Right)
	(Left Front, Right Rear)
	HARNESS, BAKE
	W11435630 Whirlpool Oven Burner Head
	16515 Whirlpool Clip
	3196896 Whirlpool Clip
	3400964 Whirlpool Oven Clip
	W11435657 Whirlpool Burner Head
1	Literature Parts
2	Burner Cap Kit (Black, Set of 4)
3	BURNER KIT
4	COOKTOP (BLACK)
5	PANL-MNFLD
6	Knob (Stainless)
7	Grate Kit (Black, Set of 3)
8	W11241230 Whirlpool Screw
9	ENDCAP-PNL
10	W11447673 Whirlpool Range Tip Anchor
11	SCREW, ANTI-TIP KIT
12	GRATE, BUMPER
13	SPRING, CLIP
14	BRKT-SUPRT
15	FRAME, COOKTOP (BLACK)
16	W11245710 Whirlpool Refrigerator Screw
17	BRACKET, SPARK MODULE
18	SPREADER, FLAME (LEFT FRONT AND RIGHT REAR)
19	W11475513 Whirlpool Top Burner Assembly
20	GLIDE, MAIN TOP
21	W10530626 Whirlpool Screw
22	ACCESSORY PARTS, GRIDDLE
23	Bezel (Stainless)
