MFGS8030RZ0 DOOR PARTS

MFGS8030RZ0 DOOR PARTS

Written by

in

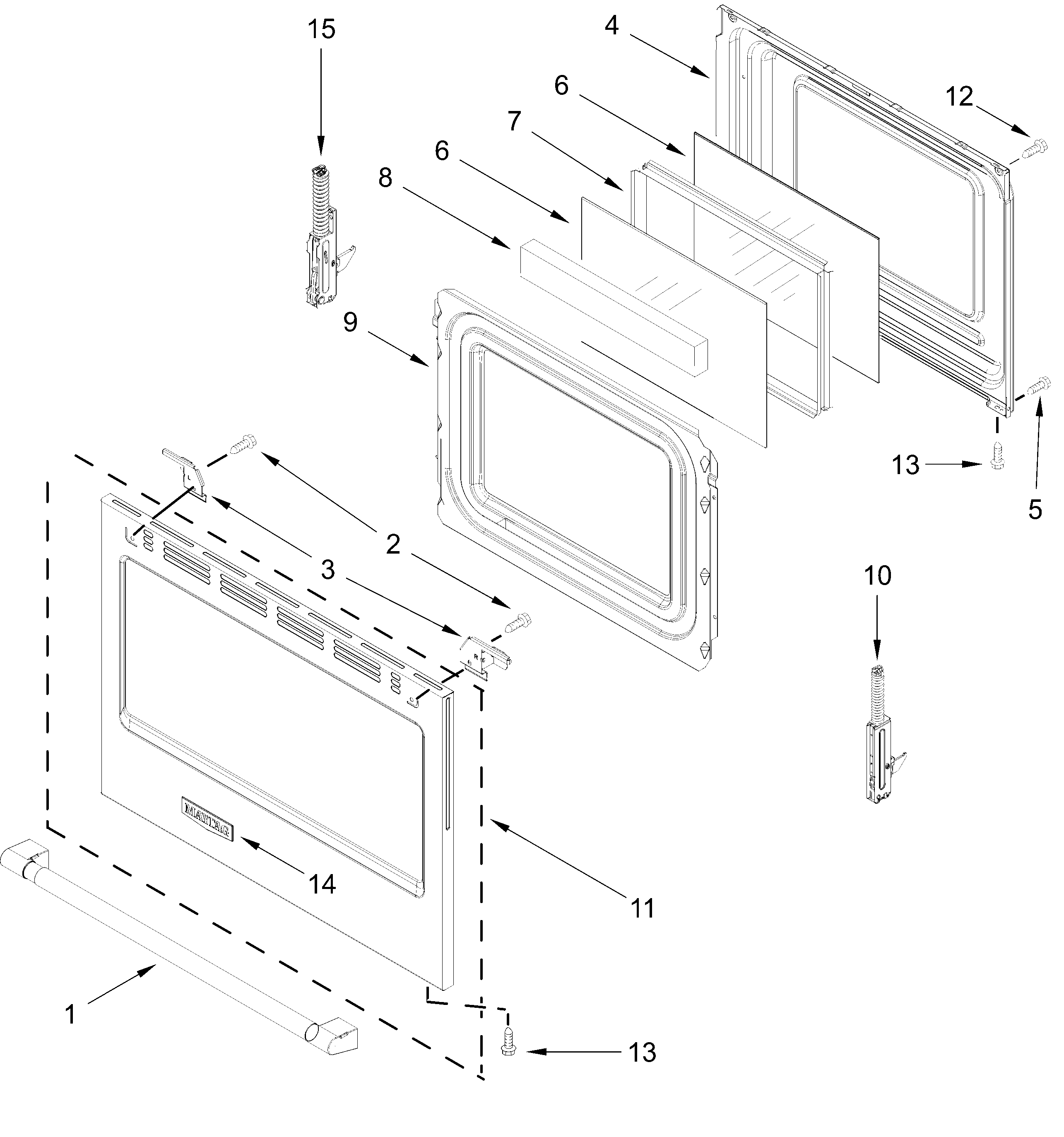

MFGS8030RZ0 DOOR PARTS

Products

PositionProduct
BRACKET, HANDLE MOUNT (RIGHT)
1HNDLE-DOOR
2WP3196154 Whirlpool Screw Assembly
3BRACKET, HANDLE MOUNT (LEFT)
4WP9761344 Whirlpool Door Liner
5WPW10031790 Whirlpool Screw
6WP8053948 Whirlpool Door Glass
7WPW10316950 Whirlpool Window Frame
8WPW10278991 Whirlpool Insulation
9W11539580 Whirlpool Retainer
10WPW10388635 Whirlpool Door Hinge
11GLASS ASSEMBLY, OUTER DOOR (STAINLESS (INCLUDES BADGE))
12WPW10200660 Whirlpool Range Oven Door Handle Screw
13WP355214 Whirlpool Screw
14W11648754 Whirlpool Nameplate
15WPW10440013 Whirlpool Door Hinge
