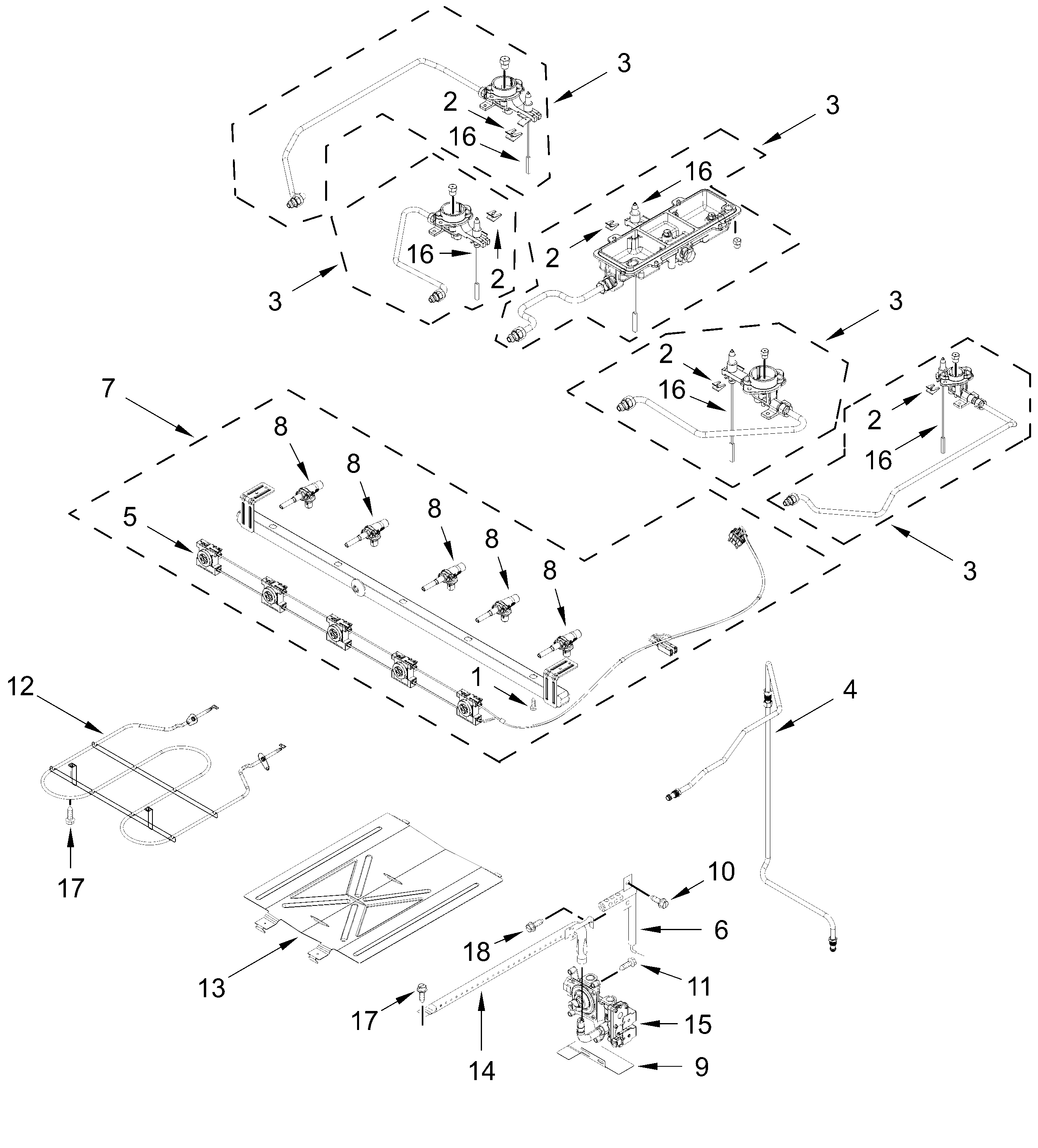

MFGS8030RZ0 MANIFOLD PARTS

Products

Position	Product
	CNVRSN-KIT
	WPW10182767 Whirlpool Wire Tie
	ORIFICE HOLDER ASSEMBLY (18K) (RIGHT FRONT) (INCLUDES ORIFICE)
	(Left Rear)
	ELECTRODE (CENTER)
	ORIFICE
	(Right Rear)
	VALVE, SINGLE (RIGHT FRONT AND CENTER)
	VALVE, SINGLE (RIGHT REAR)
	(Right Front)
	W11453920 Whirlpool Surface Igniter
	(Center)
	HOLDER-ORF
	FOLLOWING PARTS NOT ILLUSTRATED
	ORIFICE HOLDER ASSEMBLY (12K) (LEFT REAR)
	(Left Front)
	(Right Front, Right Rear)
	(Right Front, Center)
	(Left Front, Left Rear)
	ORIFICE HOLDER ASSEMBLY (5K) (RIGHT REAR) (INCLUDES ORIFICE)
1	SCREW
2	W11684564 Whirlpool Clip Assembly
3	ORIFICE HOLDER ASSEMBLY (12K) (LEFT FRONT)
4	TUBING (MANIFOLD TO REGULATOR)
5	W11727166 Whirlpool Wire Harness
6	W11524031 Whirlpool Oven Igniter
7	MANIFOLD ASSEMBLY
8	VALVE, GAS (LEFT FRONT AND LEFT REAR)
9	W10224921 Whirlpool Bracket Mounting
10	W11684507 Whirlpool Screw
11	WP3400016 Whirlpool Screw Assembly
12	W10714060 Whirlpool Broiler Burner
13	WPW10184491 Whirlpool Burner Baffle
14	WP9758078 Whirlpool Oven Burner
15	W10898290 Whirlpool Gas Valve
16	W11453940 Whirlpool Surface Igniter
17	SCREW
18	3196265 Whirlpool Oven Screw
