MFI2067AEB 08 – LEFT REFRIGERATOR DOOR (ICE & WATER)

MFI2067AEB 08 – LEFT REFRIGERATOR DOOR (ICE & WATER)

Written by

in

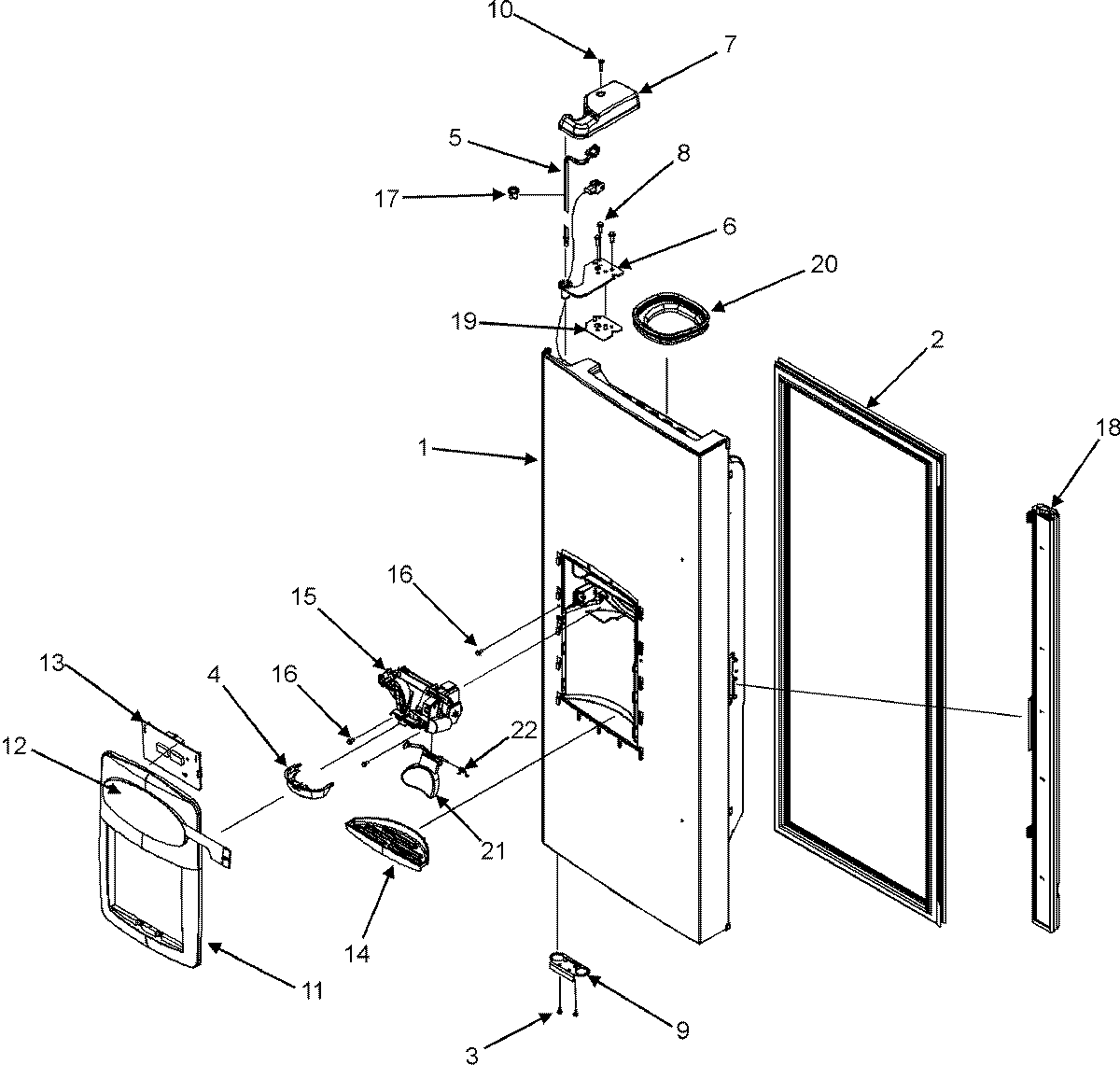

MFI2067AEB 08 – LEFT REFRIGERATOR DOOR (ICE & WATER)

Products

PositionProduct
1MAY 67006965
2W11378944 Whirlpool Door Gasket
3WP98165 Whirlpool Screw
467006295 Whirlpool Refrigerator Target Ring
512962106 Whirlpool Refrigerator Waterline Door
6MAY 67005950
7W10337647 Whirlpool Refrigerator Cover
8WP489349 Whirlpool Refrigerator Screw
9W11708403 Whirlpool Door Stop
10WP8281196 Whirlpool Screw
11Facade, Dispenser (Black)
12W11221359 Whirlpool Refrigerator Electronic Control Board
1367006294 Whirlpool Control Board + Core
14WP12999301B Whirlpool Drip Tray Grille
15MAY W10131128
1712996601 Whirlpool Refrigerator Bushing Clip
18MAY 67006400
18WPW10151713 Whirlpool Refrigerator Mullion Rail
1912999501 Whirlpool Refrigerator Hinge Shim
20WPW10287601 Whirlpool Seal
21MAY W10131124
22WP12565502 Whirlpool Refrigerator Spring
