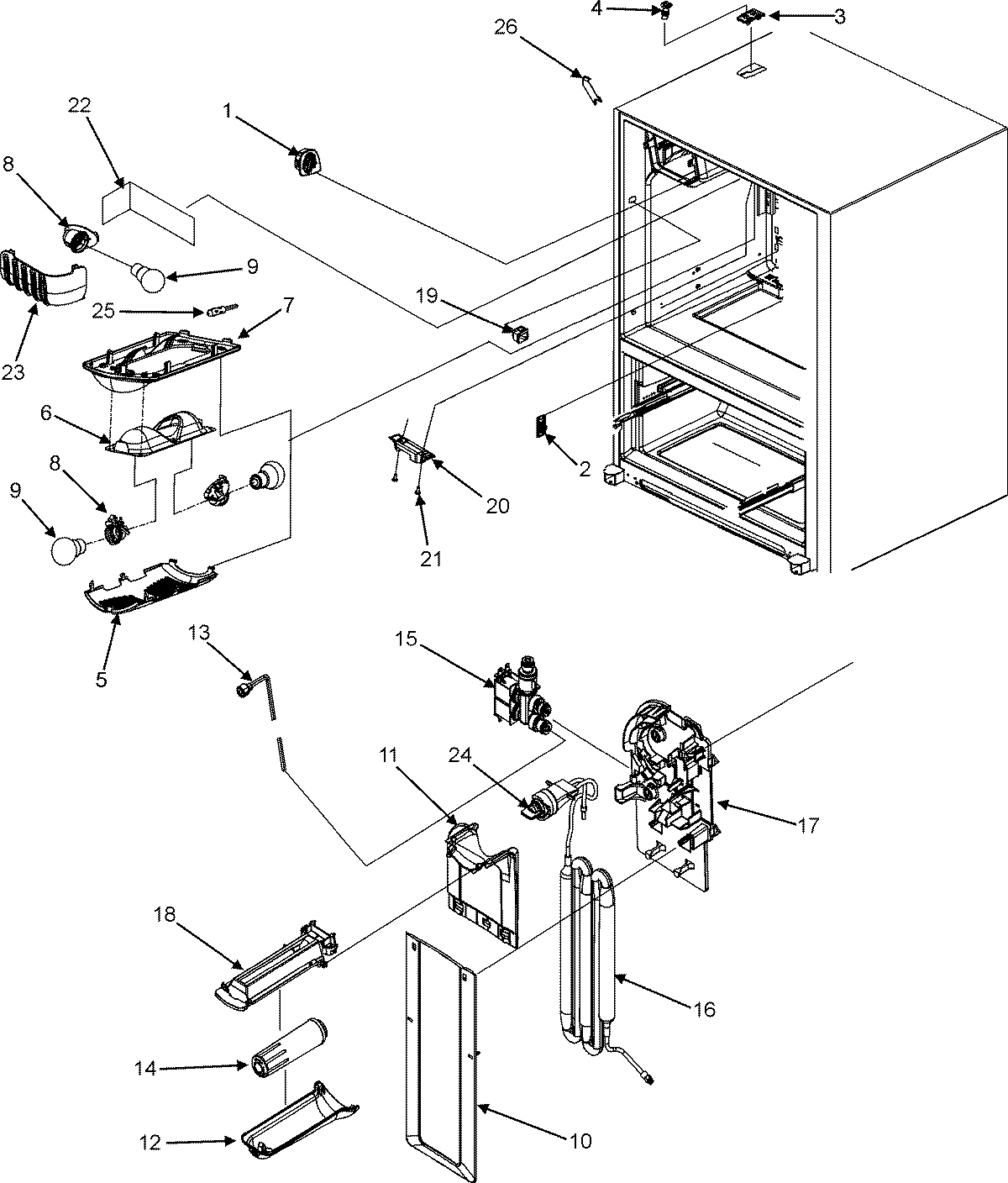

MFI2067AEB 11 – REF LIGHT/WATER TANK/FILTER/VALVE

MFI2067AEB 11 – REF LIGHT/WATER TANK/FILTER/VALVE

Written by

in

MFI2067AEB 11 – REF LIGHT/WATER TANK/FILTER/VALVE

Products

PositionProduct
1W10555984 Whirlpool Refrigerator Grille
212987301 Whirlpool Refrigerator Cover
3MAY 67006320
4TUBE-WATER
5MAY 67006318
612806601 Whirlpool Refrigerator Light Housing
7MAY 67006328
8Socket, Light (2)
9RANGE ONLY 40W 120V APPL BULB
1067006329 Whirlpool Refrigerator Cover Water Tank (Lower)
11MAY 67006330
12WP67006331 Whirlpool Refrigerator Water Filter Cover
13WATERLINE-CABINET W/NUT
14MAY 67006467
1567006322 Whirlpool Refrigerator Dual Water Valve
16WP12956202 Whirlpool Refrigerator Reservoir
17MAY 67006324
18Bracket, Filter
19SWITCH, LIGHT
20WP67003405 Whirlpool Pivot Block
21SCREW
22MAY 67006326
23MAY 67006327
24MAY 12664501
2512002355 Whirlpool Refrigerator Thermistor Kit
2667003485 Whirlpool Refrigerator Corner Cover (Black)
