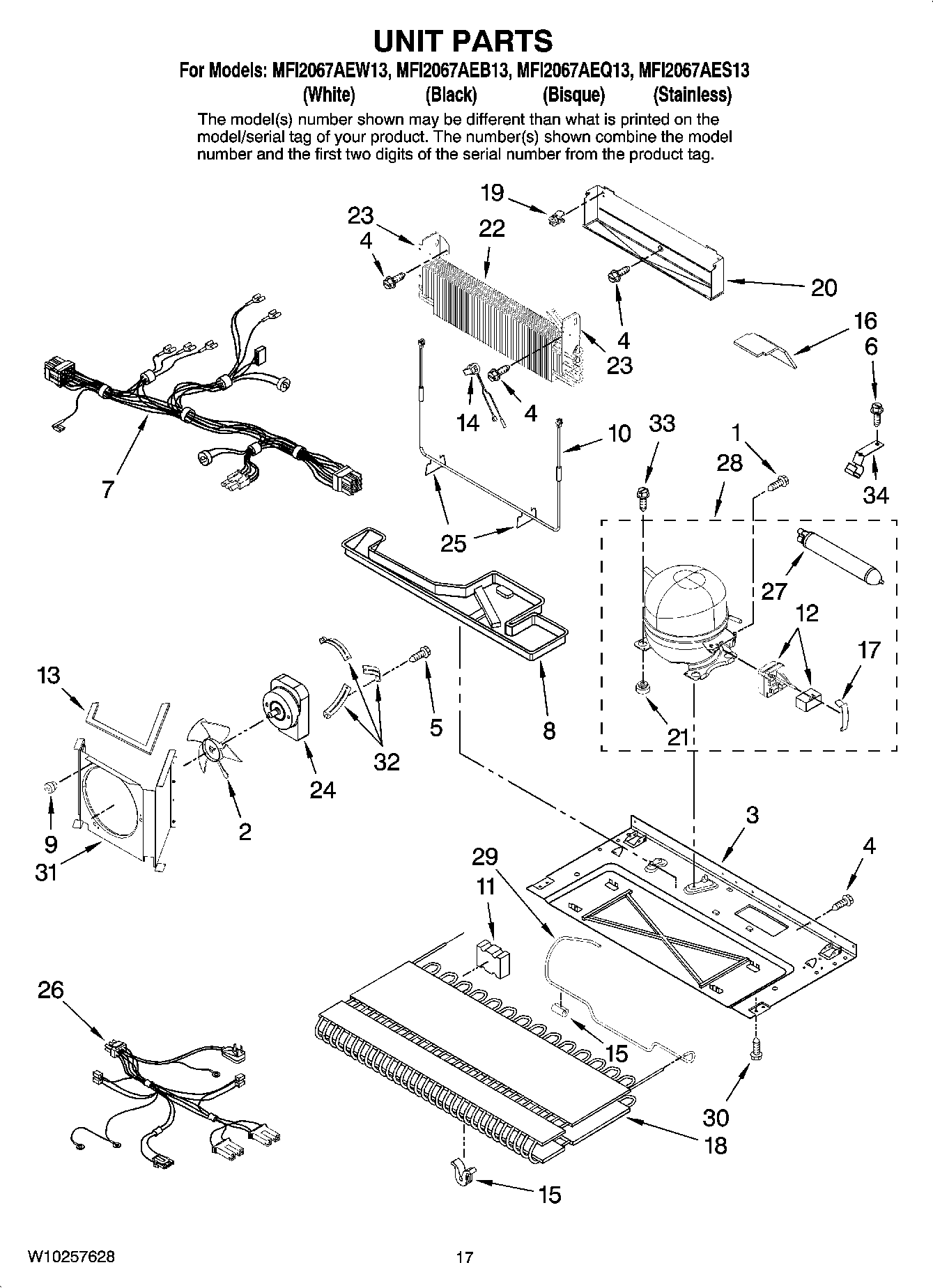

MFI2067AEB13 10 – UNIT PARTS

Products

Position	Product
NI	MAY 876764
NI	Valve, Access (5/16``)
NI	VALVE, ACCESS (3/8``)
NI	Valve, Access (1/2``)
NI	VALVE, ACCESS (1/4``)
NI	Valve, Access (5/8``)
NI	Valve, Access (3/4``)
1	MAY 67006433
2	MAY W10162928
3	MAY 12457108
4	Screw (10)
5	WP67004954 Whirlpool Refrigerator Screw
6	SCREW
7	Harness, Evap Heater
8	WP12579803 Whirlpool Refrigerator Drain Pan
9	GROMMET, BRACKET
10	MAY W10162932
11	MAY 12933001
12	W10613606 Whirlpool Refrigerator Start Device Relay Overload
13	WP854334 Whirlpool Air Conditioner Sealing Strip
14	MAY 67006387
15	67005680 Whirlpool Refrigerator Condenser Grommet
16	PAD-ACOUSTIC
17	MAY 67007052
18	WP67006131 Whirlpool Refrigerator Condenser
19	MAY 10623002
20	MAY 12225403WD
21	67003493 Whirlpool Refrigerator Compressor Grommet
22	MAY W10184230
23	Dam (Left Side)
23	Dam (Right Side)
24	MAY 67004432
25	W11673433 Whirlpool Clip
26	Harness, Unit with Power Cord
27	Drier
28	COMPRESSOR-TPG1370YXA(BM)
29	MAY 67004700
30	Screw (4)
31	MAY W10162963
32	MAY 67004953
33	Screw (2)
34	MAY 10547003
