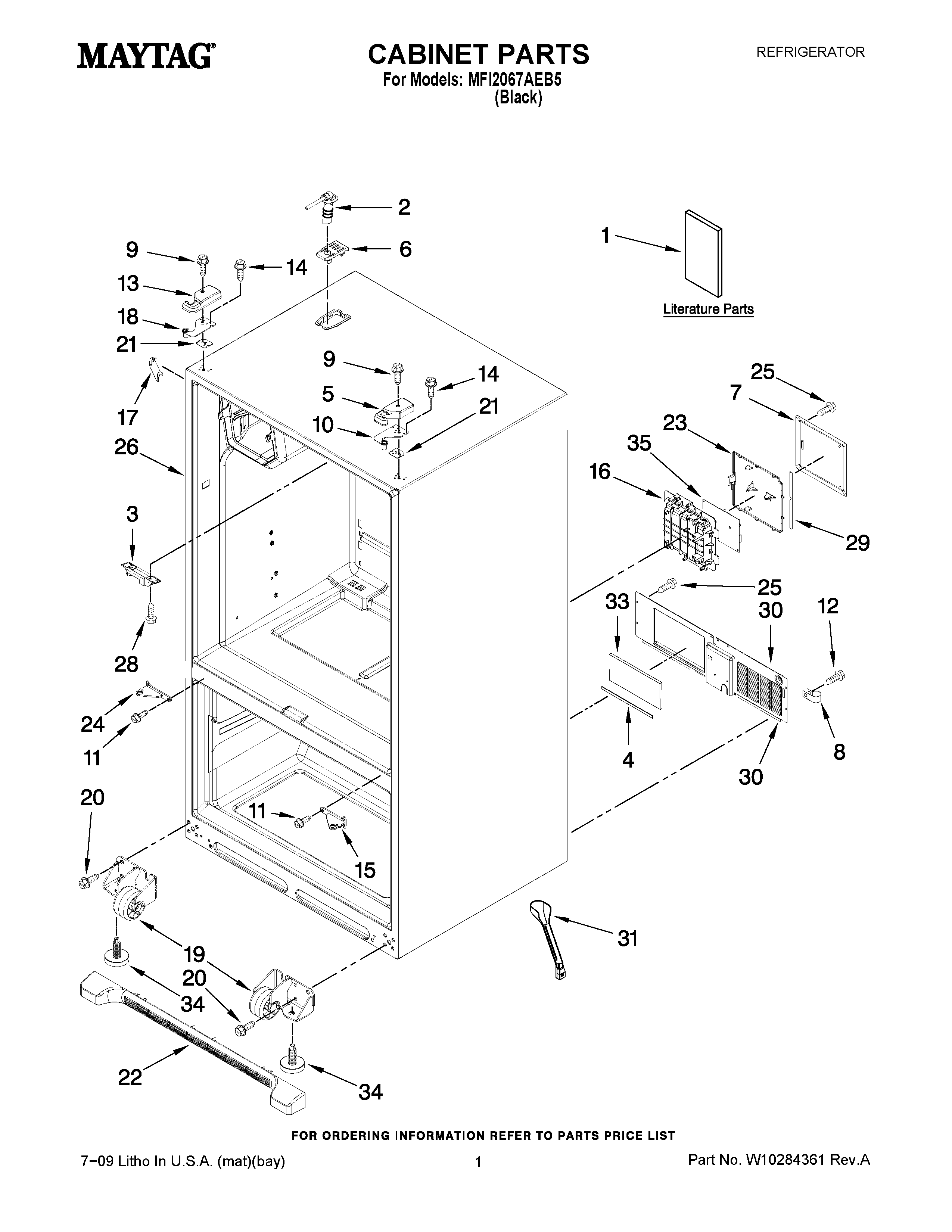

MFI2067AEB5 01 – CABINET PARTS

Written by

Products

Position	Product
1	MAY W10238849
1	MAY W10215640
1	MAY W10175444
2	Tube W/Waterline, Fill-IM
3	Block, Pivot
4	Gasket
5	MAY 12962302B
6	MAY 12981401B
7	MAY 12961602
8	W10833902 Whirlpool Refrigerator Clamp
9	MAY 12992602
10	MAY 12963205ED
11	SCREW (6)
12	SCREW (10)
13	MAY 12962301B
14	SCREW (6)
15	HINGE, CENTER (BLACK, RIGHT )
16	MAY 12957601
17	COVER, CORNER (BLACK)
18	MAY 12963204ED
19	ROLLER ASSEMBLY (RIGHT SIDE)
19	ROLLER ASSEMBLY (LEFT SIDE)
20	Screw (8)
21	MAY 12999501
21	MAY 12999502
22	GRILLE ASSEMBLY (INCLUDES CLIPS) (BLACK)
23	MAY 12957701
24	HINGE, CENTER (BLACK, LEFT)
25	SCREW
26	LINER (NOT A SERVICEABLE PART)
28	Screw (4)
29	GASKET-HV BOX
30	MAY W10211858
31	MAY W10210988
33	Insulation, Sound
34	Brake, Foot
35	MAY W10213583
