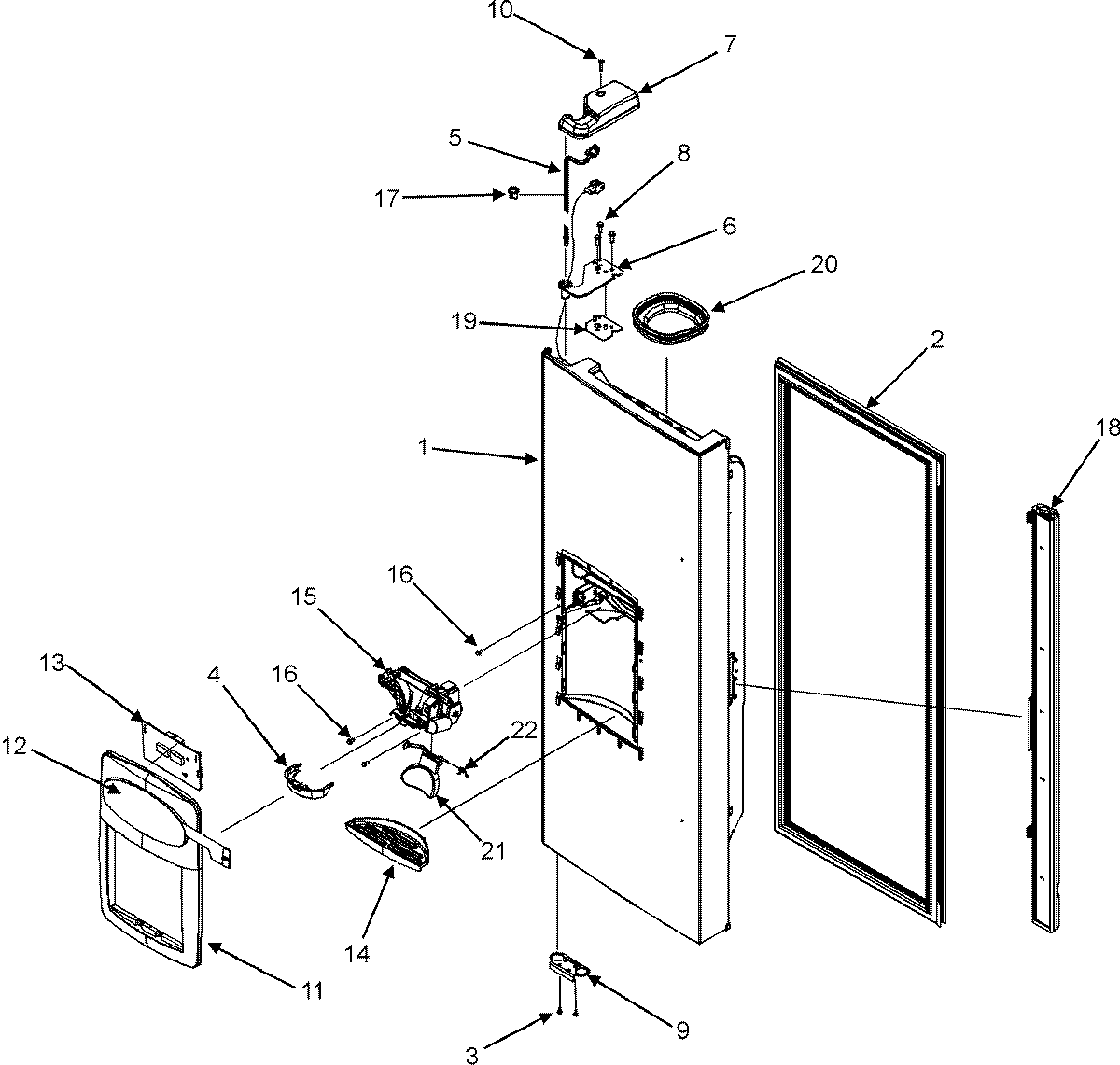

MFI2067AEQ 08 – LEFT REFRIGERATOR DOOR (ICE & WATER)

MFI2067AEQ 08 – LEFT REFRIGERATOR DOOR (ICE & WATER)

Written by

in

MFI2067AEQ 08 – LEFT REFRIGERATOR DOOR (ICE & WATER)

Products

PositionProduct
1MAY 67006966
2W11396037 Whirlpool Door Gasket
3WP98165 Whirlpool Screw
467006295 Whirlpool Refrigerator Target Ring
512962106 Whirlpool Refrigerator Waterline Door
6MAY 67005950
7Cover, Left Hinge (Bisque)
8WP489349 Whirlpool Refrigerator Screw
9STOP, DOOR (BSQ)
10WP8281196 Whirlpool Screw
11MAY 67006289
12W10772349 Whirlpool Refrigerator Electronic Control Board
1367006294 Whirlpool Control Board + Core
14MAY 67006440
1712996601 Whirlpool Refrigerator Bushing Clip
18WP12722813W Whirlpool Refrigerator Mullion Rail
18MAY 67006400
1912999501 Whirlpool Refrigerator Hinge Shim
20WPW10287601 Whirlpool Seal
21MAY W10131125
22WP12565502 Whirlpool Refrigerator Spring
