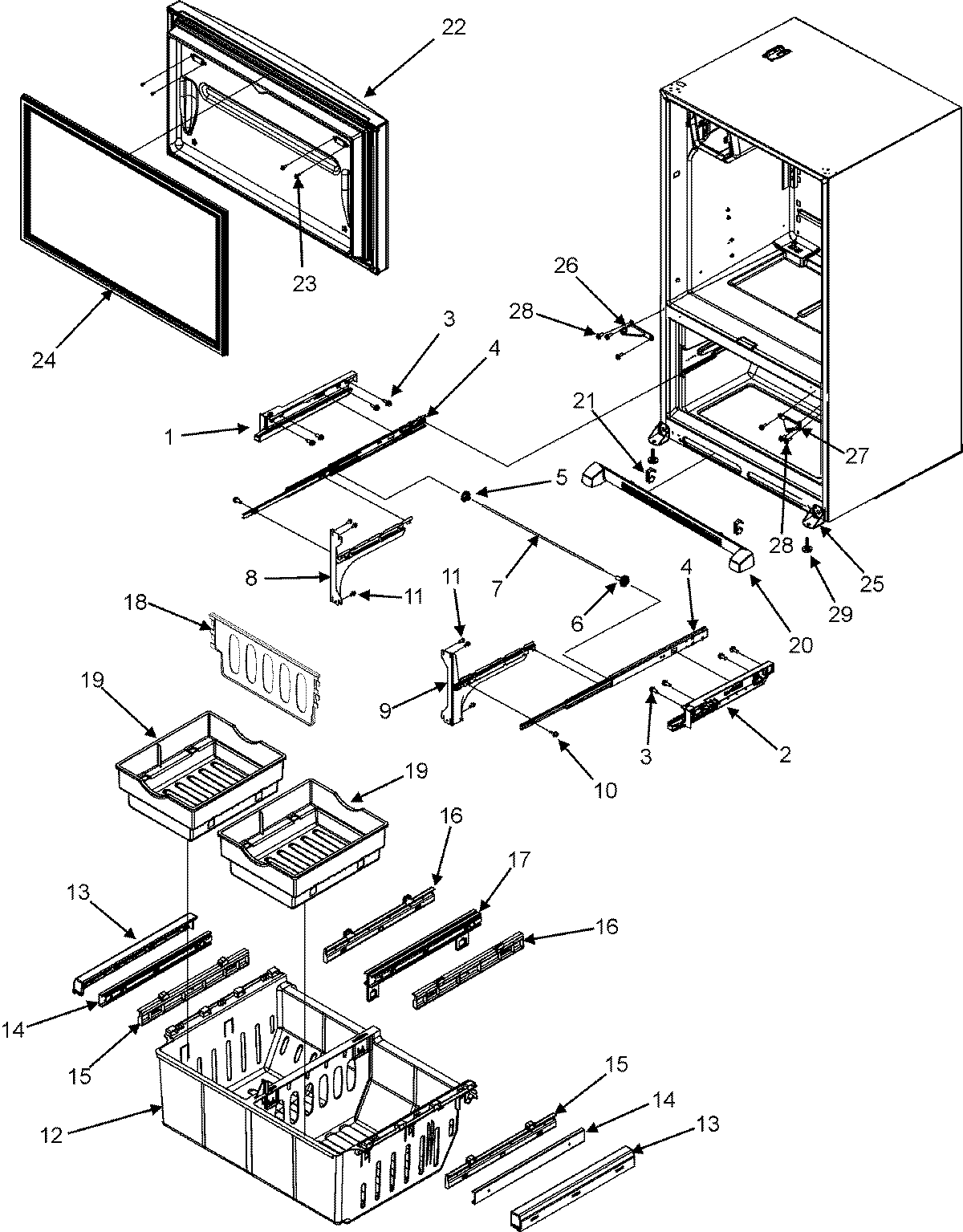

MFI2067AES 04 – FRZ DOOR/DRAWER/TOE GRILLE/CTR HINGE

MFI2067AES 04 – FRZ DOOR/DRAWER/TOE GRILLE/CTR HINGE

Written by

in

MFI2067AES 04 – FRZ DOOR/DRAWER/TOE GRILLE/CTR HINGE

Products

PositionProduct
1MAY 67006562
2MAY 67006563
3Screw (6)
4MAY 67006913
5GEAR (RT)
6GEAR (LT)
7W11028221 Whirlpool Refrigerator Shaft
8WPW10330991 Whirlpool Refrigerator Bracket
9WPW10330993 Whirlpool Refrigerator Bracket
10SCREW
11Screw (8)
12MAY 67006981
13MAY 67007117
13MAY 67007116
14MAY 67007118
15MAY 67006979
16MAY 67006980
17MAY 67007119
18MAY 67006373
19W10184227 Whirlpool Refrigerator Freezer Bin
20WPW10534153 Whirlpool Refrigerator Black Kickplate Grille
21Clip, Grille
22DOOR ASSY., FRZ. FOAM (STNLS)
2312991101 Whirlpool Refrigerator Screw
24WPW10436253 Whirlpool Refrigerator Black Freezer Door Gasket
2512906303WD Whirlpool Refrigerator Bracket
25MAY 67006491
2667006442 Whirlpool Refrigerator Center Hinge (LT-BLK)
27W10918168 Whirlpool Refrigerator Door Hinge
28WP67006380 Whirlpool Screw
29W11177593 Whirlpool Leveling Feet
