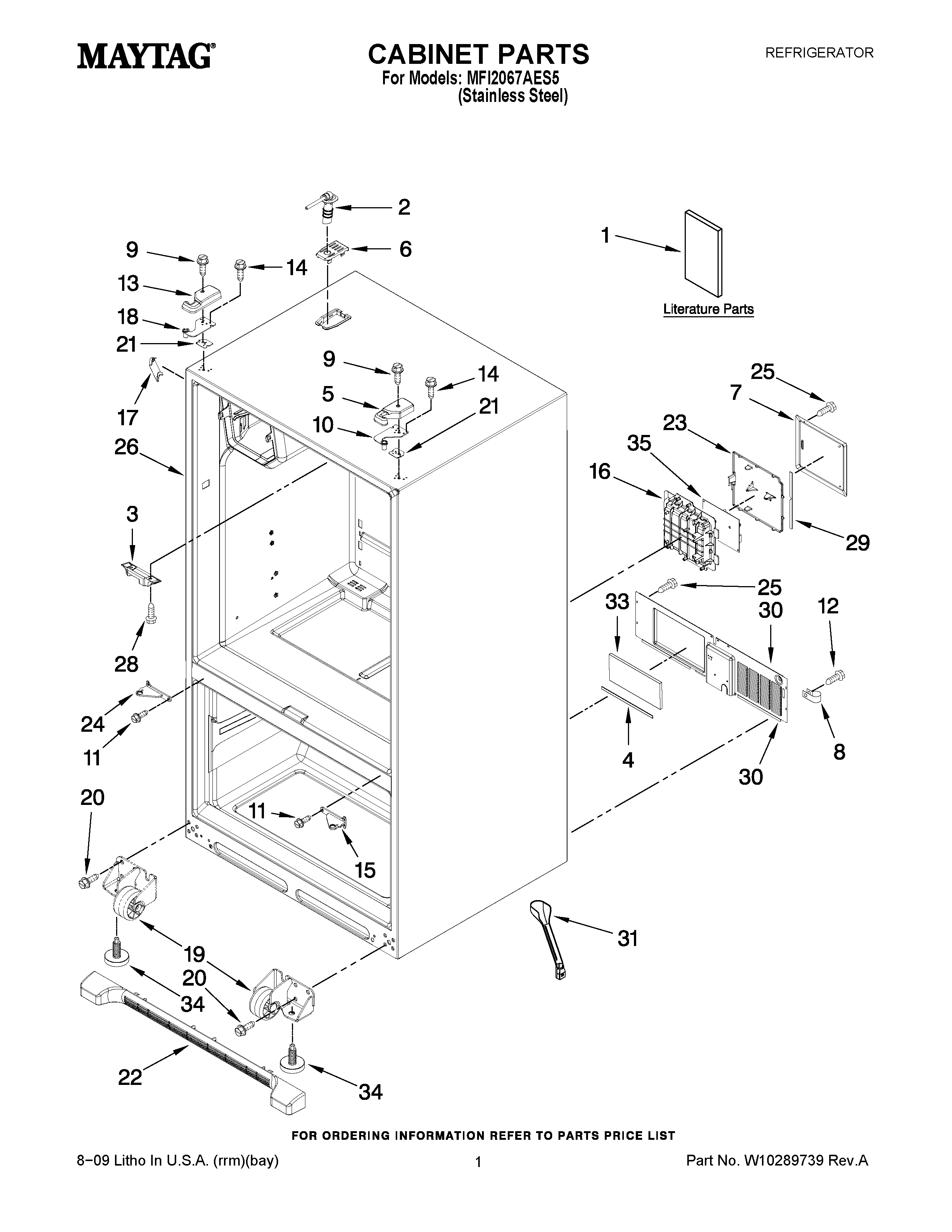

MFI2067AES5 01 – CABINET PARTS

Products

Position	Product
1	MAY W10238849
1	MAY W10215640
1	MAY W10175444
2	Tube W/Waterline, Fill-IM
3	Block, Pivot
4	MAY B5759655
5	MAY 12962302B
6	MAY 12981401B
7	MAY 12961602
8	W10833902 Whirlpool Refrigerator Clamp
9	MAY 12992602
10	MAY 12963205ED
11	SCREW (6)
12	SCREW (10)
13	MAY 12962301B
14	SCREW (6)
15	HINGE, CENTER (BLACK, RIGHT )
16	MAY 12957601
17	COVER, CORNER (BLACK)
18	MAY 12963204ED
19	ROLLER ASSY. (FRONT) (RIGHT)
19	ROLLER ASSY. (FRONT) (LEFT)
20	Screw (8)
21	MAY 12999502
21	MAY 12999501
22	GRILLE ASSEMBLY (INCLUDES CLIPS) (BLACK)
23	MAY 12957701SP
24	HINGE, CENTER (BLACK, LEFT)
25	SCREW
26	LINER (NOT A SERVICEABLE PART)
28	Screw (4)
29	GASKET-HV BOX
30	MAY W10211858
31	MAY W10210988
33	Insulation, Sound
34	Brake, Foot
35	MAY W10213583
