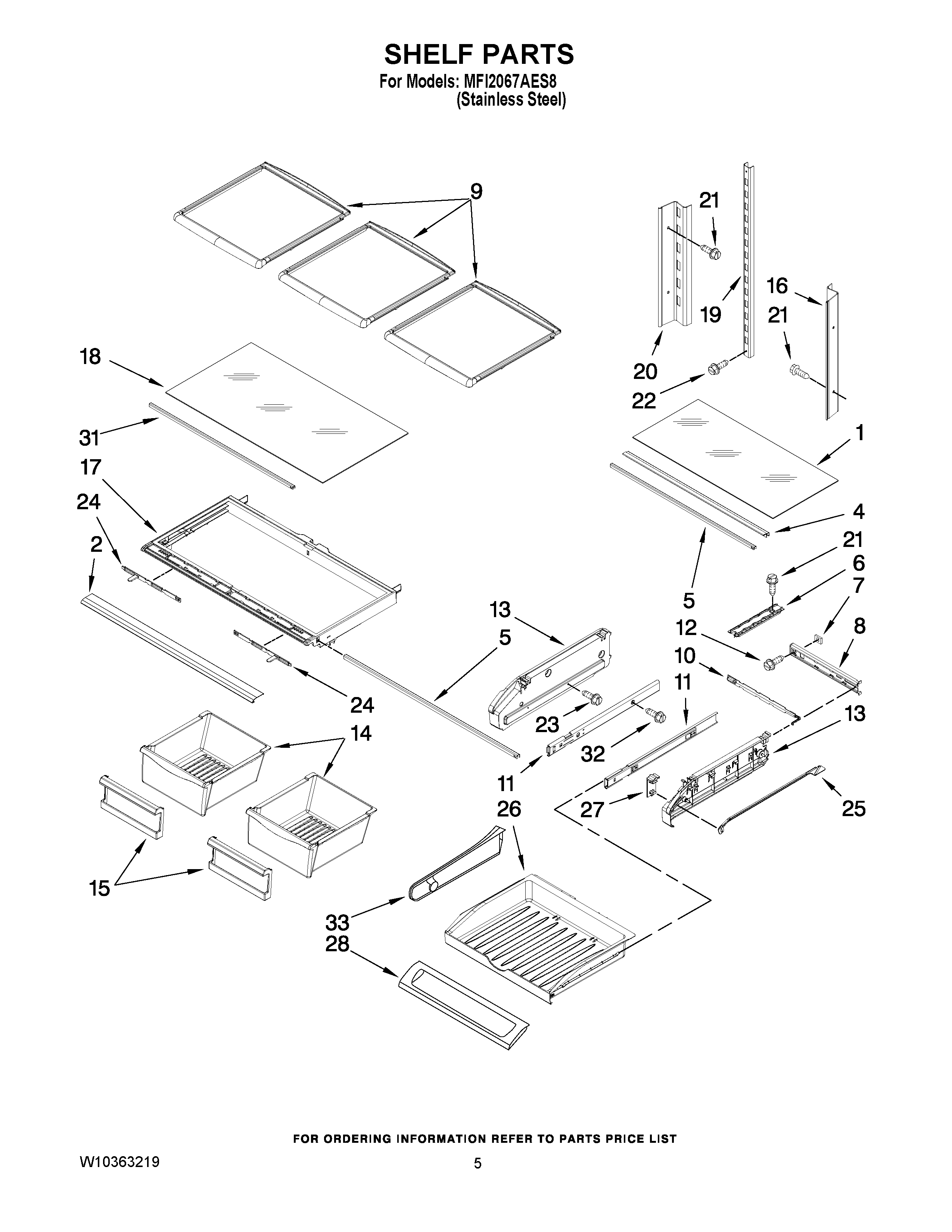

MFI2067AES8 03 – SHELF PARTS

MFI2067AES8 03 – SHELF PARTS

Written by

in

MFI2067AES8 03 – SHELF PARTS

Products

Position	Product
1	MAY 12204829
2	MAY W10231485
4	MAY 12655902SP
5	MAY 12227305WD
6	TRACK, PANTRY
7	MAY 12656901
8	MAY 12656202
9	MAY 12463912
10	SLIDE, TEMPERATURE
11	MAY W10235370
13	Endcap, Pantry (Left)
13	ENDCAP, PANTRY (RIGHT)
14	Pan, Crisper (2)
15	HANDLE, CRISPER PAN (2)
16	MAY W10251967
17	MAY 12531202SP
18	Glass, Crisper Cover
19	MAY W10273464
20	LADDER, SIDE LH
21	MAY 12990513
22	MAY 12990515
23	SCREW (2)
24	MAY 12530805SP
25	ROD, TEMPERATURE CONTROL
26	MAY 12655702
27	MAY 12655204V
28	MAY 12656815
31	Brace, Crisper
32	MAY 12990504
33	DIVIDER, PANTRY DRAWER
